ASTM B381 Titanium Target Pure Ti Coating Sputtering Material in Medication
Product Information
| Product name |
Dia 2'' 3'' 4'' Astm B381 Titanium target Pure Ti Coating Sputtering material
|
| Grade |
Gr1/Gr2 |
| Origin |
baoji city Shaanxi Province china |
| shape |
Round target / plate target / tube target |
| Titanium content |
≥99.6 (%) |
| Impurity content |
<0.02 (%) |
| Density |
4.51 or 4.50 |
| Standard |
ASTM B381 |
| Size |
1.Diameter 98mm
Height 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm
2. Customized is available
|
| Technique |
Forged and CNC Machined |
| Application |
Chemical Industry |
Titanium has emerged as a vital material in the medical field, particularly for coatings applied to surgical implants, dental devices, and various medical instruments. One of the leading specifications for titanium targets used in sputtering is ASTM B381, which outlines the standards for pure titanium coatings. Available in diameters of 2'', 3'', and 4'', these targets are essential for creating high-performance coatings that enhance the functionality and longevity of medical devices.
Advantages of Pure Titanium Coatings
Biocompatibility
One of the most significant benefits of using pure titanium in medical applications is its biocompatibility. Titanium exhibits excellent compatibility with human tissues, minimizing the risk of adverse reactions. This property is crucial for implants and devices that will be in direct contact with biological systems.
Enhanced Durability
Titanium coatings improve the durability of medical devices by providing a protective layer that resists wear and corrosion. This characteristic is especially important for implants, which are subjected to mechanical stress and bodily fluids over time. Coatings produced from ASTM B381 titanium targets help ensure that devices maintain their structural integrity, thereby extending their service life.
Improved Osseointegration
For surgical implants like hip and knee replacements, effective osseointegration—the process by which bone grows onto the implant surface—is critical for success. Pure titanium coatings facilitate better bone attachment, promoting faster healing and improved implant stability.
Applications in the Medical Field
Surgical Implants
Titanium coatings are extensively used in surgical implants to enhance their surface properties. The application of sputtered pure titanium improves osseointegration, which is vital for the longevity and effectiveness of implants. With diameters of 2'', 3'', and 4'', these targets can be customized to meet specific device requirements.
Dental Implants
In dental applications, pure titanium is the material of choice for implants and prosthetics. Coatings produced from ASTM B381 titanium targets improve the integration of dental implants with the jawbone, facilitating quicker recovery and better overall stability. The smooth surface achieved through sputtering also reduces plaque accumulation, enhancing oral hygiene.
Medical Instruments
Beyond implants, titanium coatings are also applied to various medical instruments. These coatings enhance their mechanical properties and resistance to corrosion, which is essential for instruments that are frequently sterilized and reused.
Conclusion
ASTM B381 titanium targets are integral to the production of pure titanium coatings used in medical applications. Their biocompatibility, durability, and ability to promote osseointegration make them indispensable in modern medicine. With options available in different diameters, these sputtering materials can be tailored to suit a wide range of medical devices, ensuring enhanced performance and longevity in patient care.
| chemical composition(％) |
| Grade |
Main composition |
Material content(≤) |
| Nb |
Fe |
Si |
Ni |
W |
Mo |
Ti |
Ta |
O |
C |
H |
N |
| Nb1 |
Bal |
0.004 |
0.004 |
0.002 |
0.005 |
0.005 |
0.002 |
0.05 |
0.012 |
0.0035 |
0.0012 |
0.003 |
| Nb2 |
Bal |
0.01 |
0.01 |
0.005 |
0.02 |
0.01 |
0.004 |
0.07 |
0.015 |
0.0050 |
0.0015 |
0.008 |
Mechanical properties of niobium target:
| Grade |
tensile strength Min(MPa) |
Yield Strength Min(MPa)
(0.2%)
|
Elongation(％)
(25.4mm)
|
| R04200,R04210 |
125 |
85 |
25 |
Niobium target tolerance(mm):
| Thickness |
Thickness tolerance |
width |
width tolerance |
length |
length tolerance |
| 0.1~0.2 |
±0.015 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.2～0.3 |
±0.02 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.3～0.5 |
±0.03 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.5～0.8 |
±0.04 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.8～1.0 |
±0.06 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 1.0～1.5 |
±0.08 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 1.5～2.0 |
±0.10 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 2.0～3.0 |
±0.12 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 3.0～5.0 |
±0.15 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 5.0～8.0 |
±0.18 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 8.0～12.0 |
±0.20 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 12.0～15.0 |
±0.50 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 15.0～2.0 |
±0.80 |
20～1000 |
±1.0 |
20～2000 |
±1.0
|

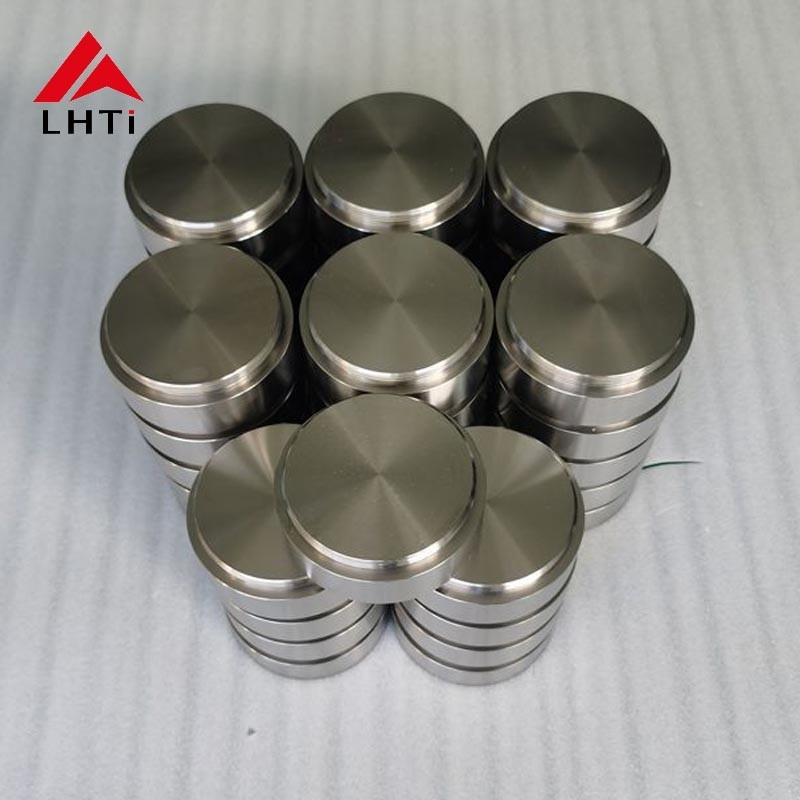

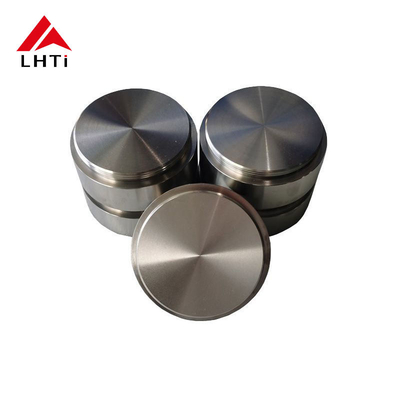

Detailed images
Factory
Package & Delivery:
Wrap the ti target material with pearl cotton and put it in a wooden box. Our reasonable packaging method can avoid the target materials from colliding with each other during transportation, and can also prevent the impact of external goods on the product, and ensure that the product is delivered after delivery Integrity.
---1. The sealed packaging,then put in the Carton cas or standard standard plywood case.
---2.Using exclusive custom carton with customer logo, each individual packaging, to help buyers direct sales.
---Accept customer requirment
Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
