Medical Titanium Sheet 0.8mm ASTM F136 Gr5

Name: Medical Titanium Sheet 0.8mm ASTM F136 Gr5
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium sheet

Detail Information

Product Description

Detail Information

Place of Origin:

China

Size:

0.8mm*1000mm*2000mm

Color:

Silver

Tolerance:

±0.05mm

Porudct Name:

Titanium Sheet / Titanium Plate

Application:

Aerospace, Chemical Processing, Medical, Marine

Package:

Wooden Case

Advantage:

High Performance

Width:

100mm - 2000mm

Technology:

Cold Rolled,

Key Word:

15333 Titanium Price

Shape:

Square

Grade:

Gr1, Gr2, Gr5, Gr7, Gr9, Gr12

Surface:

Polished

Tensile Strength:

≥240 MPa

Melting Point:

1668°C

Highlight:

Optimal Biocompatibility Titanium Sheets

High-Grade Medical Titanium Sheets

ti sheet

Product Description

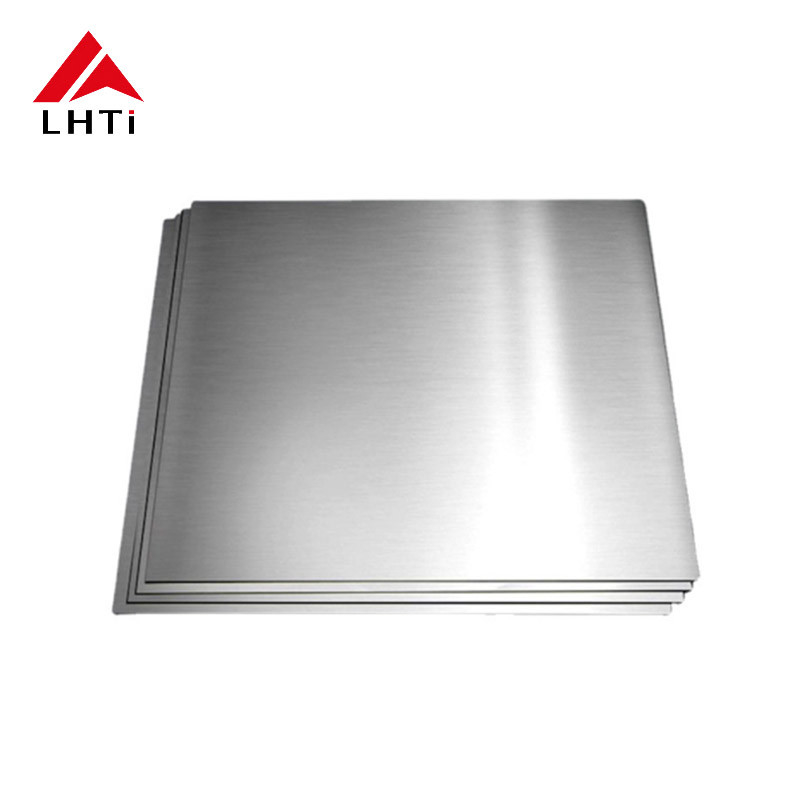

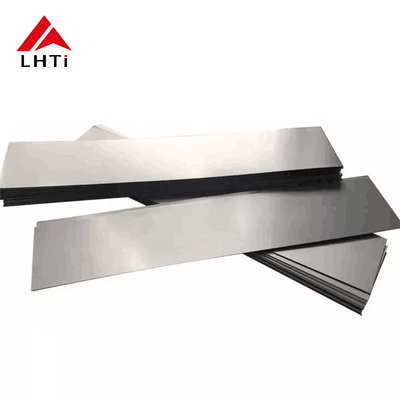

Medical Titanium Sheet 0.8mm ASTM F136 Gr5

Medical titanium sheets are thin, flat pieces made from titanium alloys for medical purposes, allowing versatile use in implants and surgical instruments. Our medical grade titanium sheet is supplied in Gr1, Gr2, Gr5, Gr7, Gr9 and Gr12, with Grade 5 (Ti-6Al-4V) used for skull implants and orthopedics, ASTM F136 for dental implants, and ISO 5832-3 pure titanium for implants needing high biocompatibility. Grade 1 titanium is suitable for fracture fixation because of its ductility and corrosion resistance.

Medical Titanium Sheet

Technical Specifications

Product Name	Titanium sheet / titanium plate
Grade	Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Size	0.8mm × 1000mm × 2000mm
Width	100mm - 2000mm
Tolerance	±0.05mm
Technology	Cold rolled
Shape	Square
Surface	Polished
Colour	Silver

Medical Grades & Applications

Grade	Typical Medical Use
Grade 5 (Ti-6Al-4V)	Skull implants and orthopedics
Ti-6Al-7Nb	Fixation devices
ASTM F136	Dental implants
ISO 5832-3 pure titanium	Implants requiring high biocompatibility
Grade 1 titanium	Fracture fixation

Physical Properties

Property	Value
Tensile strength	≥240 MPa
Melting point	1668 ℃
Advantage	High performance
Applications	Aerospace, chemical processing, medical, marine

Applications & Titanium Advantages

Medical titanium sheets are used in aviation, energy and healthcare, where their outstanding strength-to-weight ratio addresses rigorous demands. Titanium is biocompatible, integrates well with bodily tissues and resists corrosion, so implants maintain structural integrity in biological environments. In aviation and commercial aviation, using titanium in aircraft components creates lighter yet durable parts and improves aerodynamics and service life, while resisting harsh environmental conditions in other sectors.

Quality, Customization & Inquiry

LHTi manufactures to ASTM and ISO standards under strict quality control, and can customize grade, thickness and surface finish, with samples available and OEM service offered. The sheet is packed in a wooden case for protection. Please send your specification for a quotation.
