Gr9 Gr12 Thin Titanium Sheet ASTM B265 Square

Name: Gr9 Gr12 Thin Titanium Sheet ASTM B265 Square
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	50 kg
Payment Terms:	T/T,,L/C,Western Union
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Standard:

ASTM B265

Technology:

Cold Rolled

Shape:

Square

Surface:

Polished, Acid Washing

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

200000 kg per month

Highlight:

Acid Washing Thin Titanium Plate

Gr9 Thin Titanium Sheet

Gr12 Square Titanium Sheet

Product Description

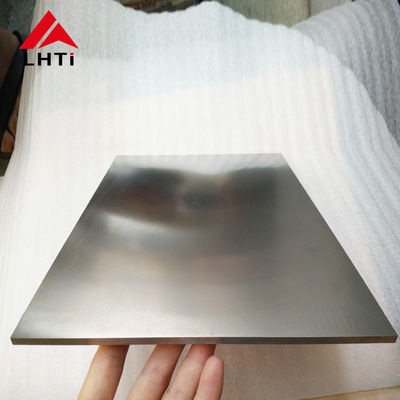

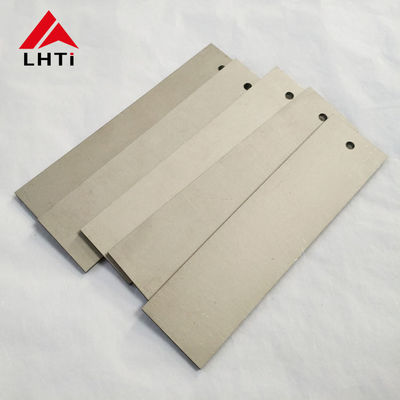

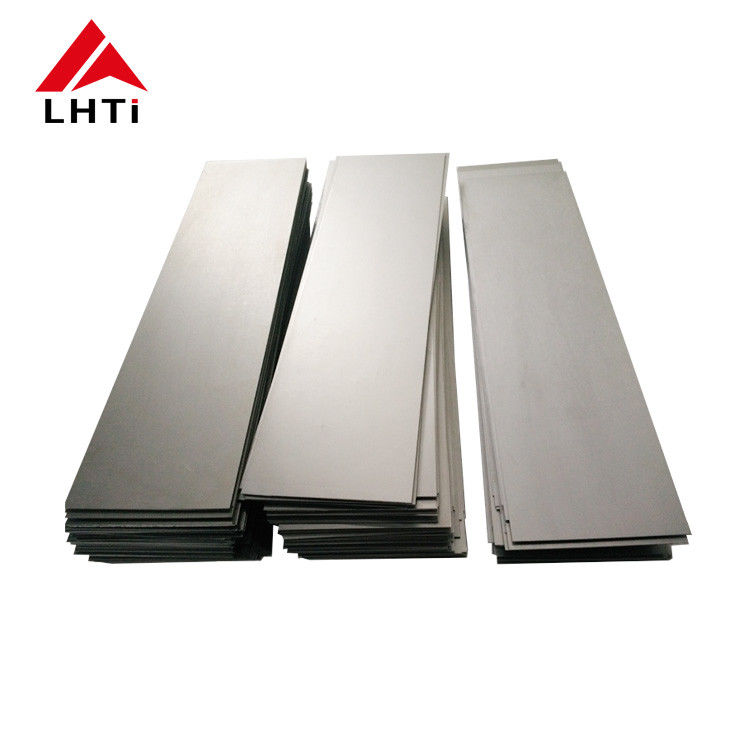

Gr9 Gr12 Thin Titanium Sheet ASTM B265 Square

This thin titanium sheet is produced to ASTM B265 in Gr9 and Gr12, cold rolled in a square shape with a polished or acid washed surface. Gr12 is a Ti-0.3Mo-0.8Ni corrosion resistant titanium alloy developed to improve the crevice corrosion performance of pure titanium. The 0.3% Mo and 0.8% Ni both strengthen the alloy and give it good crevice corrosion resistance in high temperature, low pH and weakly reducing acid media, with corrosion resistance clearly better than pure titanium plate.

Gr9 Gr12 Thin Titanium Sheet

Technical Specifications

Standard	ASTM B265
Grade	Gr9, Gr12 (Gr1, Gr2, Gr5, Gr7 also available)
Technology	Cold rolled
Shape	Square
Surface	Polished, acid washing
Appearance	Silver grey white metal

Physical Properties

Property	Value
Melting point	1668 ℃ (3034 ℉)
Boiling point	3287 ℃ (5949 ℉)
Density (near room temperature)	4.506 g/cm³
Heat of fusion	14.15 kJ/mol
Heat of vaporization	425 kJ/mol
Molar heat capacity	25.060 J/(mol·K)

Mechanical Requirements

Grade	Tensile Strength min (MPa)	Yield Strength (MPa)	Elongation (%)
Gr1	240	138	24
Gr2	345	275	20
Gr5	895	828	10
Gr7	345	275	20
Gr12	438	345	18

Applications & Titanium Advantages

Gr12 thin titanium sheet has good process plasticity and welding performance and is widely used in the chemical industry, where it resists crevice corrosion in aggressive media far better than pure titanium. Titanium is light, strong and forms a dense protective oxide film, keeping the sheet stable in demanding chemical, heat exchange and industrial duties.

Quality, Customization & Inquiry

LHTi supplies this titanium sheet under ISO 9001:2015 with TUV, SGS and BV inspection, packed in a plywood box with soft foam for protection. Grade, thickness and surface finish can be customized and OEM service is available. Please send your specification for a quotation.
