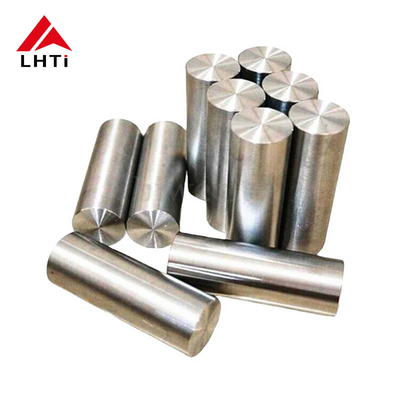

Medical Titanium Bar in ASTM Grade 5
Medical titanium bar
Application: Industrial
Diameter:5-350mm
Shape: Round
Length: Max6000mm
Technique: Rolled
Grade:GR2,GR3,GR4,GR5 Ti6AL4V ELI,Gr23 6AL7Nb,13Nb13Zr
weight:4.51g/cm3
| Chemical requirements |
| |
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
Ti |
| Gr1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
| Gr2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
| Gr5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
| Gr7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
| Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Introduction
Medical titanium bars, particularly those manufactured in ASTM Grade 5, represent a significant advancement in the field of medical materials. This grade, also known as Ti-6Al-4V, is an alloy composed of 90% titanium, 6% aluminum, and 4% vanadium, making it one of the most commonly used titanium alloys in medical applications. Its exceptional properties make it an ideal choice for manufacturing a wide range of medical devices, prostheses, artificial organs, and auxiliary treatment devices that are implanted in the human body.
One of the key advantages of ASTM Grade 5 titanium alloys is their high specific strength. This characteristic allows for the creation of implants that are not only lightweight but also strong enough to withstand the stresses encountered in the human body. The mechanical properties of these alloys closely mimic those of human bone, which is crucial for ensuring the proper integration and functionality of implants. This similarity helps in reducing the risk of complications such as stress shielding, where the difference in stiffness between the implant and surrounding bone can lead to bone resorption and implant failure.
In addition to their mechanical advantages, ASTM Grade 5 titanium alloys exhibit excellent fatigue resistance. This property is vital for devices that will experience repeated loading and unloading, such as joint replacements and dental implants. The fatigue resistance of titanium ensures that these devices maintain their integrity over time, even under strenuous conditions.
Corrosion resistance is another remarkable feature of titanium alloys. The human body is a complex environment filled with various fluids and biological substances that can cause the degradation of materials. However, titanium forms a protective oxide layer that significantly enhances its resistance to corrosion. This characteristic is particularly important for implants that must remain in the body for extended periods, as it helps ensure long-term durability and reliability.
Furthermore, the biocompatibility of ASTM Grade 5 titanium alloys is a crucial factor in their use in medical applications. These alloys do not induce adverse reactions when in contact with human tissue, making them safe for implantation. This biocompatibility is supported by extensive research and clinical studies, confirming that titanium implants integrate well with bone and other tissues.
In our inventory, we maintain a variety of medical titanium bars in different sizes and specifications, ensuring that we can meet the diverse needs of our clients in the medical industry. Our advanced manufacturing processes adhere to stringent quality standards, allowing us to produce titanium bars that not only meet but exceed industry requirements.
In conclusion, ASTM Grade 5 medical titanium bars are indispensable in the production of high-quality medical devices. Their unique combination of strength, fatigue resistance, corrosion resistance, and biocompatibility positions them as a superior choice for implants and other medical applications. As the demand for innovative and reliable medical solutions continues to grow, the role of titanium alloys will remain central to advancements in patient care and surgical technology.
| Name |
Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape |
Round |
| Material |
Gr1,Gr2 |
| Standard |
ASTM B338 |
| SMLS Or Welded |
Seamless(SMLS) |
| OD |
19mm (1.25")/ 25.4mm, 38mm |
| Wall Thickness |
1.2mm |
| Length |
6m long |
| End |
Plain End, Beveled End, Threaded |
| Certificate |
EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc |
| Application |
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry |
| Grade |
N(%) |
C(%) |
H(%) |
Fe(%) |
O(%) |
Ti |
Other , max |
| 1 |
≤0.03 |
≤0.08 |
≤0.015 |
≤0.20 |
≤0.18 |
Bal |
≤0.4 |
| 2 |
≤0.03 |
≤0.08 |
≤0.015 |
≤0.30 |
≤0.25 |
Bal |
≤0.4 |
| Grade |
Tensile Strength(min) |
Yeild Strength(0.2% offset)) |
Elongation(%) |
| ksi |
MPa |
Min |
Max |
| Ksi |
Mpa |
Ksi |
Mpa |
| 1 |
35 |
240 |
15 |
140 |
45 |
310 |
≥24 |
| 2 |
60 |
400 |
40 |
275 |
65 |
450 |
≥20 |
ASTM B338 titanium Bar
Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm
Length:3000mm /6000mm and longger to 9000mm
2.titanium tube photo
3.Factory show
4.Production Process
5.Related products
More details please feel free contact us.
