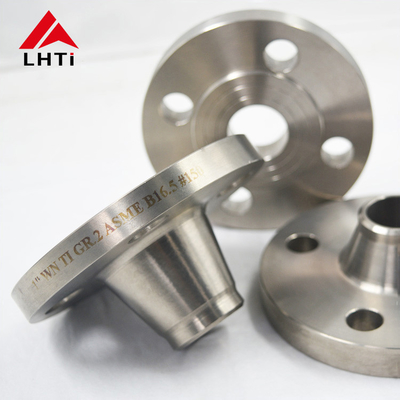

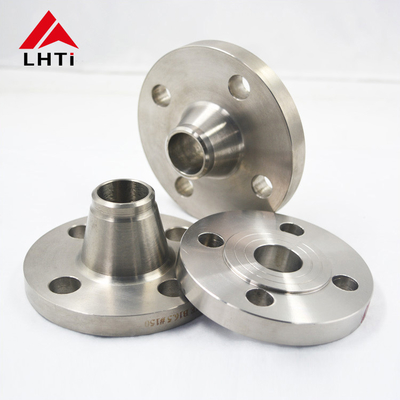

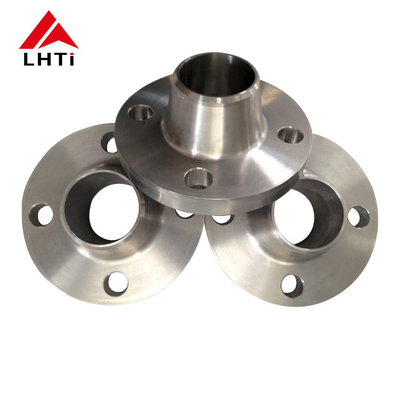

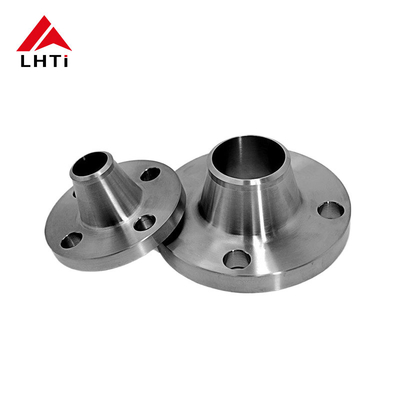

Titanium Weld Neck Flange ASME B16.5 Class 150 Ti Gr2/Gr5/Gr7 Raised Face WNRF for Pipeline Use

Name: Titanium Weld Neck Flange ASME B16.5 Class 150 Ti Gr2/Gr5/Gr7 Raised Face WNRF for Pipeline Use
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: T/T, Western Union, D/A, L/C

Supply Ability: 5 tons per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Pipeline Use Titanium Weld Neck Flange, Raised Face Titanium Weld Neck Flange, ASME B16.5 Titanium Weld Neck Flange


Key Words:	Titanium Clad Tubesheet	Production Method:	Forged, Die Forged
Nominal Diameter:	DN15-DN1000 1/2	Gasket Type:	Spiral Wound/Non-asbestos/PTFE
Grades:	Gr2, Gr5, Gr7, Gr12	Pressure Rate:	PN 10
Sample:	Avaliable	Flange Type:	BL WN As Per Client Drawing
Face Types:	PLRF,PLFF	Working Temp:	-60℃~250℃
Pressure Rating:	Class 150 - Class 2500	Flange Standard:	HG20592, EN 1092, ASME 16.9
Technique:	Forged, CNC Machined	Connection:	Welding
Temperature Rating:	-196°C - 600°C

Key Words:	Titanium Clad Tubesheet
Production Method:	Forged, Die Forged
Nominal Diameter:	DN15-DN1000 1/2
Gasket Type:	Spiral Wound/Non-asbestos/PTFE
Grades:	Gr2, Gr5, Gr7, Gr12
Pressure Rate:	PN 10
Sample:	Avaliable
Flange Type:	BL WN As Per Client Drawing
Face Types:	PLRF,PLFF
Working Temp:	-60℃~250℃
Pressure Rating:	Class 150 - Class 2500
Flange Standard:	HG20592, EN 1092, ASME 16.9
Technique:	Forged, CNC Machined
Connection:	Welding
Temperature Rating:	-196°C - 600°C

Titanium Weld Neck Flange ASME B16.5 Class 150 Ti Gr2/Gr5/Gr7 Raised Face WNRF for Pipeline Use

ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems

Product Description:

This titanium blind flange, designed for DIN applications and rated for 1500 pressure, is extensively used in water conservancy, electric power, power stations, pipe fittings, and pressure vessels. Forged for high durability, it is ideal for both machinery and chemical applications. We also offer flanges in additional materials such as nickel and zirconium.

Applications:

LHTi's Titanium Blind Flange is an excellent choice for a broad range of applications. Crafted from durable, corrosion-resistant titanium, it is designed for high-pressure environments and comes in various sizes and pressure ratings from 150# to 2500#. With a minimum order quantity of just one piece and flexible payment terms, it suits various needs. This flange is ideal for Titanium Thread Flange, Titanium SO Flange, and Titanium Blind Flange applications. LHTi's Titanium Blind Flange offers a reliable and cost-effective solution for your flange requirements.

Features:

Product Name: Polishing Surfaced Titanium Blind Flange
Certificates: ISO, CE, API, etc.
Standards: ANSI, JIS, DIN, etc.
Packaging: Wooden Case, Pallet, etc.
MOQ: 1 Piece
Connection Type: Welding
Options: Titanium SO Flange, Titanium Thread Flange, Titanium Plate Flange

Physical Properties

Grade	Tensile strength(min)		Yeild strength(min)		Elongation (%)
Grade	ksi	MPa	ksi	MPa	Elongation (%)
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	438	15
GR12	70	438	50	345	18

Product name	Titanium flange
Type	WN
Standards	ASME B16.5 ASTM B381
Size	1/2" to 36"
Pressure Ratings	Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade	gr2 gr5 gr7 gr12
Other Flanges Types	Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc

Titanium Weld Neck Flange ASME B16.5 Class 150 Ti Gr2/Gr5/Gr7 Raised Face WNRF for Pipeline Use 0

About Us:

In the last 15 years in the titanium manufacturing and exporting industry, we have excelled in crafting a wide array of titanium flanges. Our offerings include blind, neck, lap, slip-on, and plate flanges, with sizes ranging from ½" to 24". Complying with ASTM B/SB 381 standards, our products are precise and reliable. Whether you require a high volume for a major project or a single flange for a smaller task, we have the capability to deliver promptly and meet all your project needs effectively.
