ASME B16.47 Titanium Flange With Large Male-Female Connection For High Pressure Systems

Name: ASME B16.47 Titanium Flange With Large Male-Female Connection For High Pressure Systems
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: T/T, Western Union, D/A, L/C

Supply Ability: 5 tons per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Pressure Systems Titanium Flange, ASME B16.47 Titanium Flange, Large Male-Female Titanium Flange


Standards:	ASME B16.5, ASME B16.47, MSS SP-44, API 6A	Pressure Rating:	Class 150 To Class 2500
Flange Type:	Slip On Flange	Surface Finish:	Smooth, Raised Face, Ring Type Joint
Color:	Metal Nature	Tolerance:	ISO 9001 CT8~10 Or GB 12362 Precision
Shape:	Ring	Marking:	Heat No
Qc Documents:	Material And Dimension Report As Normal	Sandard:	ANSI B16.5
Technique:	Forging	Material Grade:	Gr1, Gr2, Gr5,Gr7,Gr12
Working Temperature:	-60°C~250°C	Face Types:	RF, FF, TG, RJ Etc.
Surface:	Polished

Standards:	ASME B16.5, ASME B16.47, MSS SP-44, API 6A
Pressure Rating:	Class 150 To Class 2500
Flange Type:	Slip On Flange
Surface Finish:	Smooth, Raised Face, Ring Type Joint
Color:	Metal Nature
Tolerance:	ISO 9001 CT8~10 Or GB 12362 Precision
Shape:	Ring
Marking:	Heat No
Qc Documents:	Material And Dimension Report As Normal
Sandard:	ANSI B16.5
Technique:	Forging
Material Grade:	Gr1, Gr2, Gr5,Gr7,Gr12
Working Temperature:	-60°C~250°C
Face Types:	RF, FF, TG, RJ Etc.
Surface:	Polished

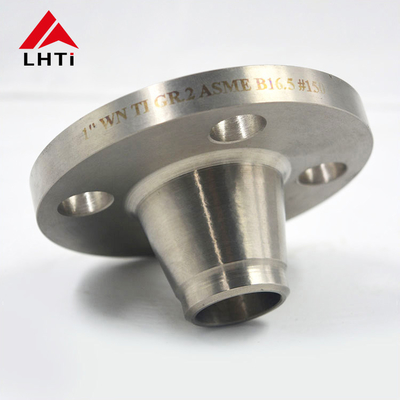

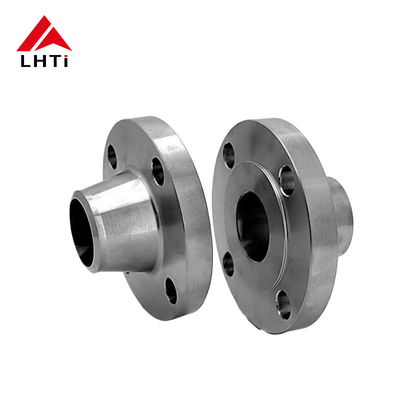

ASME B16.47 Titanium Flange With Large Male-Female Connection For High Pressure Systems

ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems

Product Details:

This titanium flange is widely used in water conservancy, electric power, power stations, pipe fittings, and pressure vessels. Forged for durability, it is well-suited for machinery and chemical applications. We also provide flanges in other materials, including nickel and zirconium.

ASME B16.47 Titanium Flange with Large Male-Female Connection for High-Pressure Systems

Material Options: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
Types Available: Plate Flange, Flat Flange, Slip-On Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange, and more
Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue Groove, Small Tongue Groove, etc.
Size Range: 1'' to 120'' (DN40-DN3000)
MOQ: 1 piece
Price Terms: EXW, FOB, C&F, CIF
Payment Terms: T/T, L/C, Western Union, MoneyGram, etc.
Packaging: Standard export plywood case or customized as requested
Applications: Ideal for construction, petroleum, chemical industries, power generation, shipbuilding, paper production, metallurgy, water supply and sewage, light and heavy industries, plumbing, and electrical applications.
Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, and more.

Physical Properties

Grade	Tensile strength(min)		Yeild strength(min)		Elongation (%)
Grade	ksi	MPa	ksi	MPa	Elongation (%)
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	438	15
GR12	70	438	50	345	18

Product name	Titanium flange
Type	WN
Standards	ASME B16.5 ASTM B381
Size	1/2" to 36"
Pressure Ratings	Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade	gr2 gr5 gr7 gr12
Other Flanges Types	Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc

ASME B16.47 Titanium Flange With Large Male-Female Connection For High Pressure Systems 0

About Us:

Drawing on over 15 years in the titanium manufacturing and exporting industry, we excel in crafting a wide array of titanium flanges. Our offerings include blind, neck, lap, slip-on, and plate flanges, with sizes ranging from ½" to 24". Complying with ASTM B/SB 381 standards, our products are precise and reliable. Whether you require a high volume for a major project or a single flange for a smaller task, we have the capability to deliver promptly and meet all your project needs effectively.
