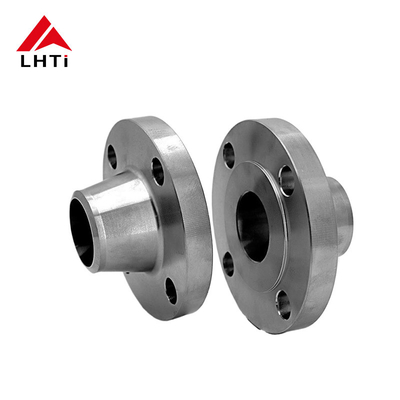

ASME B16.47 Titanium Flange with ISO 9001 CT8~10 Precision and GB 12362 Certification for -60°C~250°C Applications

Brand Name:	LIHUA
Model Number:	LH-BL
MOQ:	If in stock, sample is available; If not in stock,100kgs of each size
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	T/T,Western Union,D/A,L/C
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Tolerance:

ISO 9001 CT8~10 Or GB 12362 Precision

Shape:

Ring

Marking:

Heat No

Qc Documents:

Material And Dimension Report As Normal

Sandard:

ANSI B16.5

Technique:

Forging

Material Grade:

Gr1, Gr2, Gr5,Gr7,Gr12

Working Temperature:

-60°C~250°C

Face Types:

RF, FF, TG, RJ Etc.

Surface:

Polished

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5 tons per month

Highlight:

High Pressure Systems Titanium Flange

ASME B16.47 Titanium Flange

Large Male-Female Titanium Flange

Product Description

ASME B16.47 Titanium Flange With Large Male-Female Connection

ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems. This titanium flange is widely used in water conservancy, electric power, power stations, pipe fittings, and pressure vessels. Forged for durability, it is well-suited for machinery and chemical applications. We also provide flanges in other materials, including nickel and zirconium.

Product Features

Material Options: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
Types Available: Plate Flange, Flat Flange, Slip-On Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange, and more
Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue Groove, Small Tongue Groove, etc.
Size Range: 1'' to 120'' (DN40-DN3000)
MOQ: 1 piece
Price Terms: EXW, FOB, C&F, CIF
Payment Terms: T/T, L/C, Western Union, MoneyGram, etc.
Packaging: Standard export plywood case or customized as requested

Applications

Ideal for construction, petroleum, chemical industries, power generation, shipbuilding, paper production, metallurgy, water supply and sewage, light and heavy industries, plumbing, and electrical applications.

Export Markets

USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, and more.

Physical Properties

Grade	Tensile strength(min)	Yield strength(min)	Elongation (%)
GR1	35 ksi / 240 MPa	20 ksi / 138 MPa	24
GR2	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR5	130 ksi / 895 MPa	120 ksi / 828 MPa	10
GR7	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR9	90 ksi / 620 MPa	70 ksi / 438 MPa	15
GR12	70 ksi / 438 MPa	50 ksi / 345 MPa	18

Product Specifications

Product name:

Titanium flange

Type:

Standards:

ASME B16.5 ASTM B381

Size:

1/2" to 36"

Pressure Ratings:

Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64

Grade:

gr2 gr5 gr7 gr12

Other Flanges Types:

Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc.
