Titanium Flange
Created with Pixso.

ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems

ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems

Brand Name: LIHUA
Model Number: LH-BL
MOQ: If in stock, sample is available; If not in stock,100kgs of each size
Price: US dollar $30/pc--US dollar $80/pc
Payment Terms: T/T, Western Union, D/A, L/C
Supply Ability: 5 tons per month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001, TUV etc.
Din:
PN6,PN10,PN16,PN25 Though PN250
Press:
Class 600/ CL600
Certifications:
ASME B16.5, ASTM B381
Temperature Rating:
Up To 800°F
Product Standard:
DIN 2501 Titanium Plate Flange
Class:
CL300
Shape:
Ring
Marterial:
Titanium +SS
Use:
Chemical
Flange Type:
PL, BL
Weight:
1kg~500kg
Sealing Type:
RF
Flange Inside Diameter:
1.88 Inches
Technology:
Colding Forming ,hot Working And Welding
Flange Thickness:
0.56 Inches
Packaging Details:
Wrapped by foam contained in plywood box for export
Supply Ability:
5 tons per month
Highlight:

High Pressure Systems Titanium Flange

,

ASME B16.47 Titanium Flange

,

Large Male-Female Titanium Flange

Product Description

ANSI B16.5 Grade 2 Raised Long Welding Neck Titanium Flange



Product Details:

NSI B16.5 Grade 2 WN RF Welding Neck Titanium Flange

This titanium flange is extensively used across various industries, including water conservancy, electric power, power stations, pipe fittings, and pressure vessels. Crafted through a forging process, it is ideal for machinery and chemical applications. We also offer flanges in other materials, such as nickel and zirconium.

ASME B16.47 Titanium Flange

  • Material: Titanium Grades GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
  • Types: Plate Flange, Flat Flange, Slip-on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
  • Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue Groove, Small Tongue Groove
  • Sizes: 1" and 1/2" to 120" (DN40-DN3000)
  • MOQ: 1 piece
  • Price Terms: EXW Factory, FOB, C&F, CIF
  • Payment Terms: T/T, L/C, Western Union, Money Gram, etc.
  • Packaging: Standard export plywood case or customized as requested
  • Applications: Widely used in construction, petroleum, chemical industries, power generation, shipbuilding, paper manufacturing, metallurgy, water supply and sewage, light and heavy industries, plumbing, and electrical applications.
  • Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, and more.



ASTM B265



Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm
No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 2 0.3 0.25 0.03 0.1 0.015 / / / / / 20 275-450 345-480
Grade 5 0.4 0.2 0.05 0.1 0.015 / 5.5-6.7 /   / 10 800-1100 890-1400
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 / / / / 20 275-450** 345
Grade 12 0.3 0.25 0.03 0.1 0.015 / / / 0.3 0.8 25 414-460 499-600











Product name Titanium flange
Type WN
Standards ASME B16.5 ASTM B381
Size 1/2" to 36"
Pressure Ratings Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade gr2 gr5 gr7 gr12
Other Flanges Types Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc

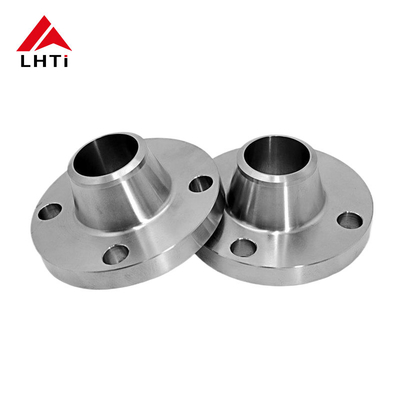

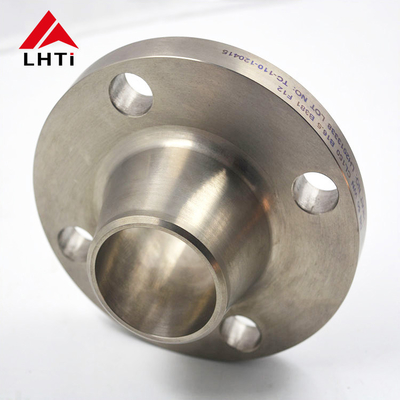

ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems 0ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems 1



About Us:

Drawing on over 15 years in the titanium manufacturing and exporting industry, we excel in crafting a wide array of titanium flanges. Our offerings include blind, neck, lap, slip-on, and plate flanges, with sizes ranging from ½" to 24". Complying with ASTM B/SB 381 standards, our products are precise and reliable. Whether you require a high volume for a major project or a single flange for a smaller task, we have the capability to deliver promptly and meet all your project needs effectively.
