DIN 2503 Long Weld Neck Flange For Forged And CNC Machined Titanium With Long Service Life And Cost-effective

Brand Name:	LIHUA
Model Number:	LH-BL
MOQ:	1kg of each size
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	T/T,Western Union,D/A,L/C
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Techics:

Forged

Production Method:

Forged, Die Forged

Advantages:

Long Service Life, Cost-effective, Easy Installation, Low Maintenance

Material:

Titanium

Qc Documents:

Material And Dimension Report As Normal

Surface Finish:

Smooth, Machined, Sandblasted, Pickled

Technics:

Forged And CNC Machined

Product Standard:

DIN 2503 Titanium Plate Slip On Flange

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5 tons per month

Highlight:

CNC Machined Titanium Flange

Polished Surface Titanium Flange

Froged Titanium Flange

Product Description

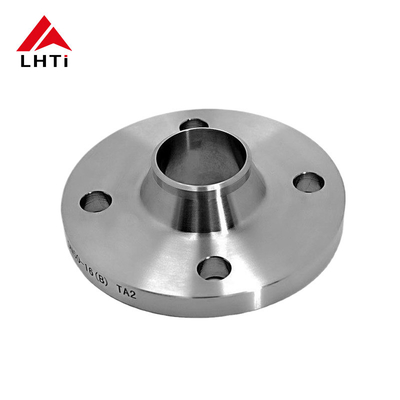

Long Weld Neck Flange For Forged And CNC Machined Titanium

Our premium titanium Long Weld Neck Flange is expertly forged and CNC machined to meet ANSI B16.5 standards. Featuring a polished surface for both durability and aesthetic appeal, this flange is designed for critical applications requiring secure, reliable connections between shafts or pipe ends.

Key Features

Long weld neck design for enhanced alignment and reduced stress concentrations
Precision CNC machining ensures perfect fit and tight seal
Available in multiple sizes and pressure classes for versatile applications
Ideal for demanding pipeline and equipment connections

Material Specifications

ASTM B265	Fe max (wt%)	O max (wt%)	N max (wt%)	C max (wt%)	H max (wt%)	Pd (wt%)	Al (wt%)	V (wt%)	Mo (wt%)	Ni (wt%)	Elong'n (%)	Rp 0.2 (MPa)	Rm (MPa)
Grade 2	0.3	0.25	0.03	0.1	0.015	/	/	/	/	/	20	275-450	345-480
Grade 5	0.4	0.2	0.05	0.1	0.015	/	5.5-6.7	/	/	/	10	800-1100	890-1400
Grade 7	0.3	0.25	0.03	0.1	0.015	0.12-0.25	/	/	/	/	20	275-450	345
Grade 12	0.3	0.25	0.03	0.1	0.015	/	/	/	0.3	0.8	25	414-460	499-600

Product Specifications

Product name: Titanium flange

Type: WN (Weld Neck)

Standards: ASME B16.5, ASTM B381

Size range: 1/2" to 36"

Pressure ratings: Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64

Available grades: Gr2, Gr5, Gr7, Gr12

Available Flange Types

We also manufacture: Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges, and more.
