Welding Neck Flange Gr2 Titanium For Forged CNC Machined

Name: Welding Neck Flange Gr2 Titanium For Forged CNC Machined
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 1kg of each size

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: T/T, Western Union, D/A, L/C

Supply Ability: 5 tons per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Forged Titanium Flange, CNC Machined Titanium Flange, Gr2 Titanium Flange


Features:	High Strength, Good Corrosion Resistance	Dimensions:	DN15-DN1200
Pressure Rating:	150 Lbs - 2500 Lbs	Flange Standard:	HG20592, EN 1092, ASME 16.9
Processing Service:	Welding	Material Grade:	Gr2/Gr7/Gr10
Temperature Range:	-250°F To 800°F	Grade:	1 2 3 5 7
Quality Control:	Professional Inspection	Materials:	Titanium Metal Or Alloy
Testing:	UT% PT%	Payment:	TT And Paypal
Surface Treatment:	CNC Marchined	Density:	4.54g/cm3
Payment Term:	T/T, L/C, Etc.

Features:	High Strength, Good Corrosion Resistance
Dimensions:	DN15-DN1200
Pressure Rating:	150 Lbs - 2500 Lbs
Flange Standard:	HG20592, EN 1092, ASME 16.9
Processing Service:	Welding
Material Grade:	Gr2/Gr7/Gr10
Temperature Range:	-250°F To 800°F
Grade:	1 2 3 5 7
Quality Control:	Professional Inspection
Materials:	Titanium Metal Or Alloy
Testing:	UT% PT%
Payment:	TT And Paypal
Surface Treatment:	CNC Marchined
Density:	4.54g/cm3
Payment Term:	T/T, L/C, Etc.

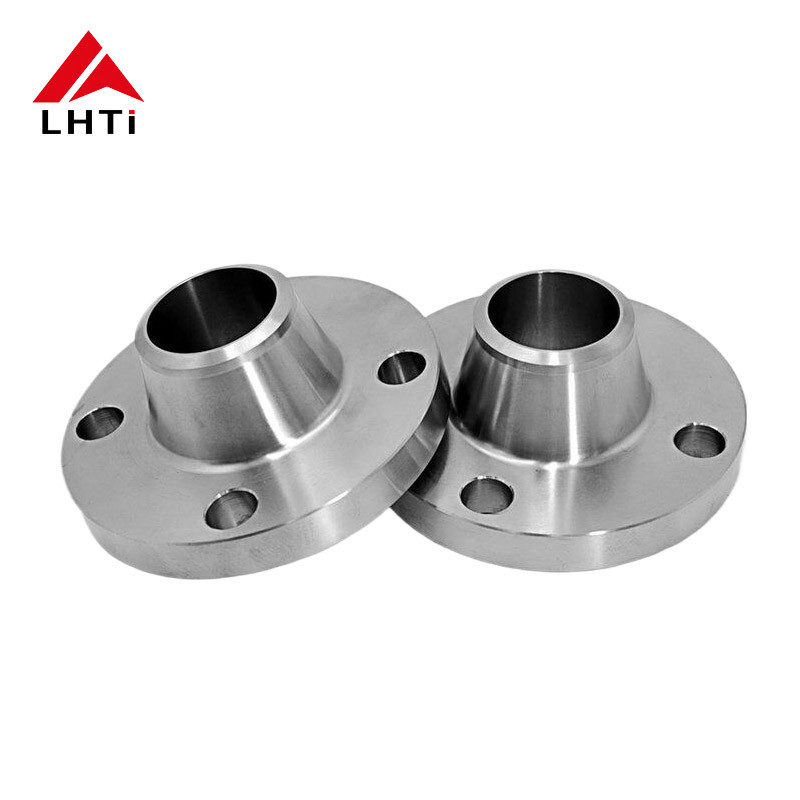

Welding Neck Flange Gr2 Titanium For Forged CNC Machined

The Welding Neck Flange in GR2 Titanium is a high-quality component designed for robust industrial applications. Crafted from GR2 titanium, known for its excellent strength-to-weight ratio and superior corrosion resistance, this flange is ideal for use in harsh environments. Utilizing advanced forging and CNC machining techniques, ensures precision and reliability. The welding neck design provides a strong, integral connection with the pipe, making it suitable for high-pressure and critical applications. This flange combines durability with advanced engineering, delivering outstanding performance and longevity.

Product Details:

The Welding Neck (WN) Flange is available in sizes ranging from 1/2" to 80" and comes in various pressure classes including Class 150, Class 300, Class 600, Class 900, and Class 1500. It is made from high-quality materials such as GR1, GR2, GR7, GR11, and GR12, conforming to ANSI B16.5 and ASTM B381 standards. These flanges are precision-forged and CNC machined, with prices ranging from $5.90 to $269 per piece, depending on specific specifications.

A titanium welding neck flange connects shafts or pipe ends and links equipment through inlets and outlets, including reducer flanges. The flange joint, comprising flanges, gaskets, and bolts, forms a detachable and sealed assembly. In pipelines, flanges join sections, while in equipment, they serve as inlets and outlets. Bolt holes ensure secure attachment, and gaskets provide a tight seal.

ASTM B265	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 2	0.3	0.25	0.03	0.1	0.015	/	/	/	/	/	20	275-450	345-480
Grade 5	0.4	0.2	0.05	0.1	0.015	/	5.5-6.7	/		/	10	800-1100	890-1400
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25	/	/	/	/	20	275-450**	345
Grade 12	0.3	0.25	0.03	0.1	0.015	/	/	/	0.3	0.8	25	414-460	499-600

Product name	Titanium flange
Type	WN
Standards	ASME B16.5 ASTM B381
Size	1/2" to 36"
Pressure Ratings	Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade	gr2 gr5 gr7 gr12
Other Flanges Types	Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc

Welding Neck Flange Gr2 Titanium For Forged CNC Machined 0

Welding Neck Flange Gr2 Titanium For Forged CNC Machined 1

About Us:

With over 15 years of experience in manufacturing and exporting titanium products, we specialize in a variety of titanium flanges, including blind flanges, neck flanges, lap flanges, slip-on flanges, and plate flanges, available in diameters ranging from ½" to 24". Our products adhere to dimensional tolerances specified by ASTM B/SB 381. Whether you need thousands of pieces for a large production job or just one titanium pipe flange for a smaller project, we are equipped to meet your needs and provide everything necessary to complete your job efficiently.
