Welding Neck Flange Gr2 Titanium For Forged CNC Machined

Name: Welding Neck Flange Gr2 Titanium For Forged CNC Machined
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 1kg of each size

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: T/T, Western Union, D/A, L/C

Supply Ability: 5 tons per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Forged Welding Neck Flange, Gr2 Titanium Welding Neck Flange, CNC Machined Welding Neck Flange


Test:	UT	Working Temp:	-60℃~250℃
Product Standard:	ASME/ANSI B16.5 SO Flange	Types Of:	Horizontal
Techics:	Forged	Ut Test Standard:	AMS 2631
Design:	ASME B16.34	Bolt Circle Diameter:	3.75 Inches
Color:	Metal Nature	Temperature Rating:	Up To 600°F
End Type:	Raised Face	Class:	CL300
Materials:	Gr1 Gr2 Gr5 Gr7 Gr12 Etc.	Technique:	Forged And CNC Machined
Connection:	Welding

Test:	UT
Working Temp:	-60℃~250℃
Product Standard:	ASME/ANSI B16.5 SO Flange
Types Of:	Horizontal
Techics:	Forged
Ut Test Standard:	AMS 2631
Design:	ASME B16.34
Bolt Circle Diameter:	3.75 Inches
Color:	Metal Nature
Temperature Rating:	Up To 600°F
End Type:	Raised Face
Class:	CL300
Materials:	Gr1 Gr2 Gr5 Gr7 Gr12 Etc.
Technique:	Forged And CNC Machined
Connection:	Welding

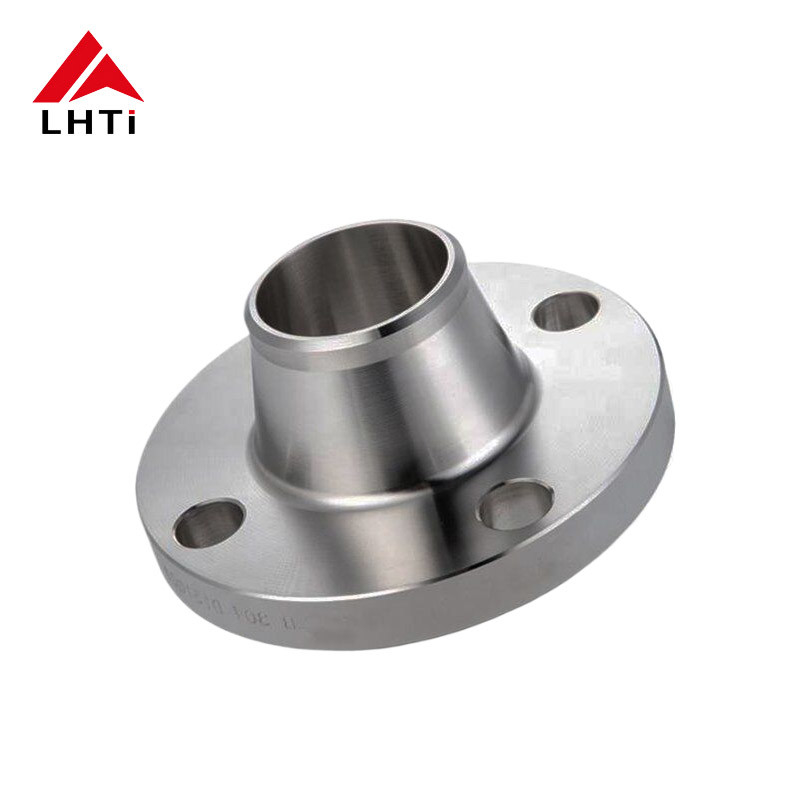

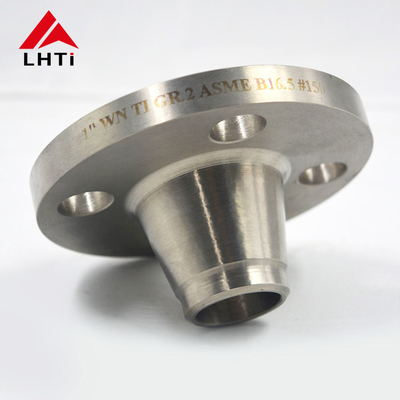

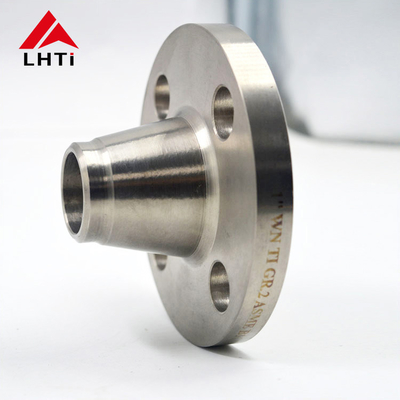

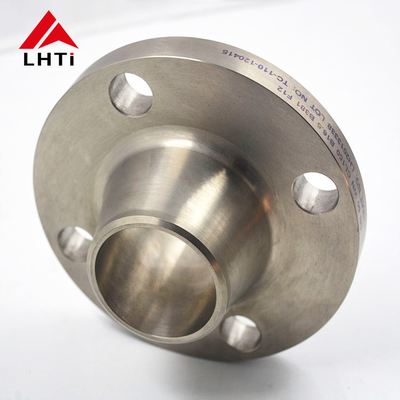

Welding Neck Flange Gr2 Titanium For Forged CNC Machined

The Welding Neck Flange in GR2 Titanium is a high-quality component designed for robust industrial applications. Crafted from GR2 titanium, known for its excellent strength-to-weight ratio and superior corrosion resistance, this flange is ideal for use in harsh environments. Utilizing advanced forging and CNC machining techniques, ensures precision and reliability. The welding neck design provides a strong, integral connection with the pipe, making it suitable for high-pressure and critical applications. This flange combines durability with advanced engineering, delivering outstanding performance and longevity.

Product Details:

Type: Welding Neck (WN) Flange
Size Range: 1/2" to 80"
Class Options: Class 150, Class 300, Class 600, Class 900, Class 1500
Materials: GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
Standards: ANSI B16.5, ASTM B381
Technique: Forged and CNC Machined
Price Range: $5.90 - $269 per piece (varies by specification)

A titanium welding neck flange connects shafts or pipe ends and links equipment through inlets and outlets, including reducer flanges. The flange joint, comprising flanges, gaskets, and bolts, forms a detachable and sealed assembly. In pipelines, flanges join sections, while in equipment, they serve as inlets and outlets. Bolt holes ensure secure attachment, and gaskets provide a tight seal.

ASTM B265	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 2	0.3	0.25	0.03	0.1	0.015	/	/	/	/	/	20	275-450	345-480
Grade 5	0.4	0.2	0.05	0.1	0.015	/	5.5-6.7	/		/	10	800-1100	890-1400
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25	/	/	/	/	20	275-450**	345
Grade 12	0.3	0.25	0.03	0.1	0.015	/	/	/	0.3	0.8	25	414-460	499-600

Product name	Titanium flange
Type	WN
Standards	ASME B16.5 ASTM B381
Size	1/2" to 36"
Pressure Ratings	Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade	gr2 gr5 gr7 gr12
Other Flanges Types	Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc
