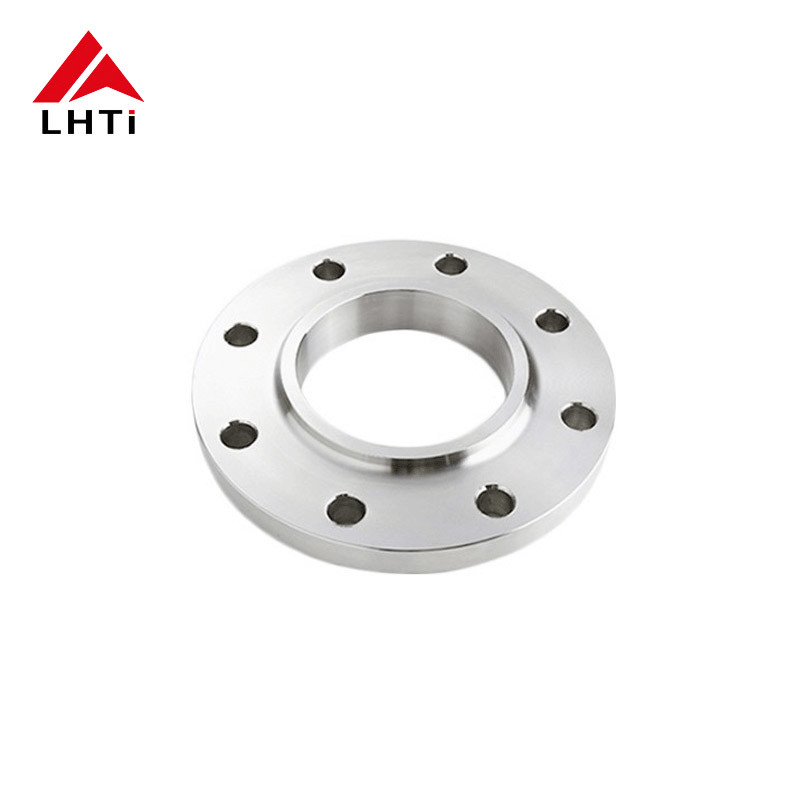

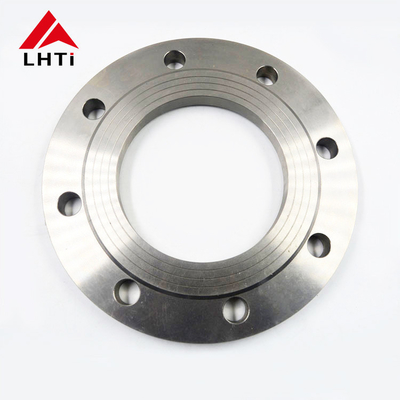

Plate Flat Welding GR2 DN50 Flange Forged Titanium Piping For Connection

Name: Plate Flat Welding GR2 DN50 Flange Forged Titanium Piping For Connection
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 100 kgs

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5 tons per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                GR2 Titanium Flange, Forged Titanium Flange, DN50 Titanium Flange


Features:	Corrosion Resistance, High Strength, Lightweight, Low Thermal Expansion, Non-magnetic	Flange Facing:	RF, FF, RTJ
Powder Or Not:	Not Powder	Application:	Chemical, Petrochemical, Oil & Gas, Power Generation, Aerospace
Surface:	Polished	Connection Type:	Weld Neck, Slip On, Socket Weld, Threaded, Blind
Technology:	Heat Treatment,casting ,forging	Material:	Titanium
Pressure:	PN 6	Working Temp:	-60℃~250℃
Payment:	TT And Paypal	Surface Treatment:	Polishing, Sandblasting, Anodizing, Etc.
Temperature Rating:	-196°C - 600°C	Connection:	Welding
Technique:	Forged And CNC Machined

Features:	Corrosion Resistance, High Strength, Lightweight, Low Thermal Expansion, Non-magnetic
Flange Facing:	RF, FF, RTJ
Powder Or Not:	Not Powder
Application:	Chemical, Petrochemical, Oil & Gas, Power Generation, Aerospace
Surface:	Polished
Connection Type:	Weld Neck, Slip On, Socket Weld, Threaded, Blind
Technology:	Heat Treatment,casting ,forging
Material:	Titanium
Pressure:	PN 6
Working Temp:	-60℃~250℃
Payment:	TT And Paypal
Surface Treatment:	Polishing, Sandblasting, Anodizing, Etc.
Temperature Rating:	-196°C - 600°C
Connection:	Welding
Technique:	Forged And CNC Machined

Plate Flat Welding GR2 DN50 Flange Forged Titanium Piping For Connection

Plate Flat Welding GR2 DN50 Flange Forged Titanium Piping For Connection

Titanium welding neck flanges offer excellent strength and hardness, making them versatile for various applications. They are suitable for marine environments, the chemical industry, and numerous other uses. These flanges deliver high performance and come with secure packaging for safety. They are easy to install and adaptable for diverse applications, including chemical and mechanical systems. Additionally, titanium flanges are available in various standards and materials to meet specific requirements.

The Plate Flat Welding GR2 DN50 Flange is a premium-grade titanium component designed for robust piping connections. Constructed from high-quality GR2 titanium, this flange is forged to offer exceptional strength, durability, and resistance to corrosion and high temperatures.

Key features include:

Material: Made from GR2 titanium, known for its excellent mechanical properties and corrosion resistance, ideal for harsh environments.
Size: DN50, or 50 mm nominal diameter, suitable for medium-sized piping systems.
Design: Features a plate flat welding design, allowing for seamless integration with other components and ensuring a strong, leak-proof connection.
Forged Construction: The forging process enhances the mechanical strength and overall integrity of the flange, making it suitable for high-stress applications.
Applications: Perfect for use in industries such as aerospace, chemical processing, and marine, where reliability and performance are critical.
This Plate Flat Welding GR2 DN50 Titanium Flange combines advanced material technology with precise engineering to deliver a high-performance solution for demanding piping systems.

Product name	Titanium flange
Type	WN
Standards	ASME B16.5 ASTM B381
Size	1/2" to 36"
Pressure Ratings	Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade	gr2 gr5 gr7 gr12
Other Flanges Types	Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc

ASTM B265	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 2	0.3	0.25	0.03	0.1	0.015	/	/	/	/	/	20	275-450	345-480
Grade 5	0.4	0.2	0.05	0.1	0.015	/	5.5-6.7	/		/	10	800-1100	890-1400
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25	/	/	/	/	20	275-450**	345
Grade 12	0.3	0.25	0.03	0.1	0.015	/	/	/	0.3	0.8	25	414-460	499-600
