DN50 Titanium Welding Neck Flange - ANSI B16.5 Ti-Pd Alloy WN Pipe Connector / Metal Flange

Name: DN50 Titanium Welding Neck Flange - ANSI B16.5 Ti-Pd Alloy WN Pipe Connector / Metal Flange
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 100 kgs

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5 tons per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ANSI B16.5 Titanium Welding Neck Flange, DN50 Titanium Welding Neck Flange


Size:	1/2 Inch - 24 Inch	Din:	PN6,PN10,PN16,PN25 Though PN250
Type:	Threaded Flange	Inspection:	UT%
Package:	Wooden Case, Pallet, Etc.	Standards:	GB/T 16598,ASME SB381
Processing Method:	Forged, CNC Machine	Pressure:	PN10/PN16/PN25
Powder Or Not:	Not Powder	Technics:	Forged And CNC Machined
Specifications:	Complete	Standard:	ASME B16.5, ASME B16.47, MSS SP-44, API, DIN, JIS
Quality Test:	UT,PT Etc.	Process:	Welded
Craft:	Casting

Size:	1/2 Inch - 24 Inch
Din:	PN6,PN10,PN16,PN25 Though PN250
Type:	Threaded Flange
Inspection:	UT%
Package:	Wooden Case, Pallet, Etc.
Standards:	GB/T 16598,ASME SB381
Processing Method:	Forged, CNC Machine
Pressure:	PN10/PN16/PN25
Powder Or Not:	Not Powder
Technics:	Forged And CNC Machined
Specifications:	Complete
Standard:	ASME B16.5, ASME B16.47, MSS SP-44, API, DIN, JIS
Quality Test:	UT,PT Etc.
Process:	Welded
Craft:	Casting

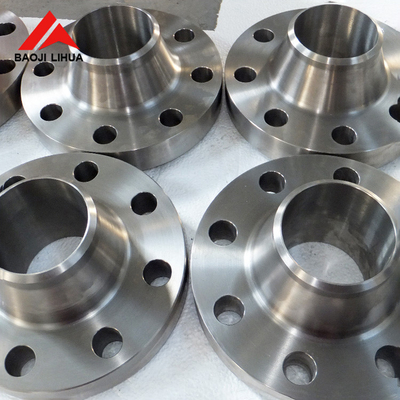

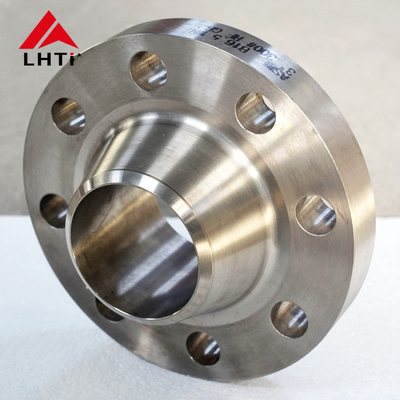

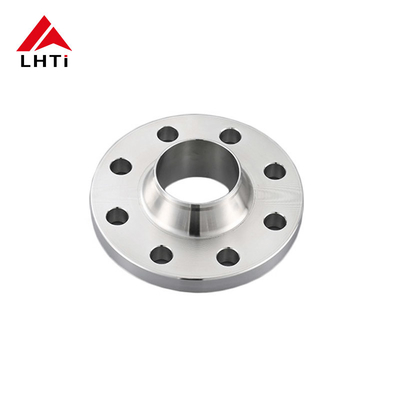

DN50 Titanium Welding Neck Flange - ANSI B16.5 Ti-Pd Alloy WN Pipe Connector / Metal Flange

DN50 Titanium Welding Neck Flange - ANSI B16.5 Ti-Pd Alloy WN Pipe Connector / metal flange

Production Information

The DN50 Titanium Welding Neck Flange, conforming to ANSI B16.5 standards, is a high-performance metal flange designed for robust pipe connections. Crafted from Ti-Pd alloy, this flange offers exceptional strength and corrosion resistance, making it ideal for demanding applications. Its welding neck design ensures a smooth, reliable connection between pipes, enhancing the overall integrity and durability of the piping system. Suitable for a variety of industrial settings, this flange combines advanced material properties with precise engineering to meet stringent performance requirements.

Titanium flanges, made from titanium or titanium alloys, are used to connect pipes and pipe ends. They can be cast, screwed, or welded. A flange connection involves two flanges, a gasket, and bolts and nuts. The gasket is placed between the sealing faces of the flanges. When the nuts are tightened, the gasket deforms under pressure, filling any surface irregularities and ensuring a tight, leak-proof connection. Commonly used grades include TA0, TA1, TA2, TA3, TA9, TA10, and TC4.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

DN50 Titanium Welding Neck Flange - ANSI B16.5 Ti-Pd Alloy WN Pipe Connector / Metal Flange 0
