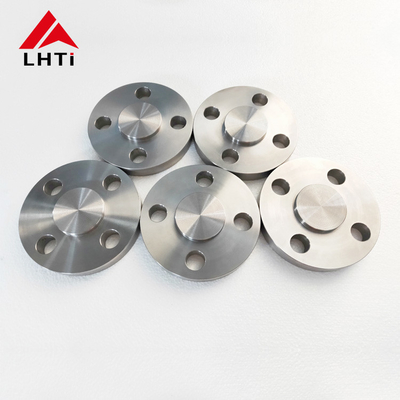

NC Machined Titanium Blind Flange with Raised Face in Grades Gr2 Gr7 Gr12 for Chemical Industry Applications

Brand Name:	LIHUA
Model Number:	LH-BL
MOQ:	100 kgs
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Connection:

Welding

Dimensions:

Can Be Customized

Standards:

GB/T 16598,ASME SB381

Pressure Level:

PN1.6-15.0Mpa Class150-900Lb;

Sealing Surface:

RF, FF, TG, RJ Etc.

Processing Method:

Forged, CNC Machine

Unit Price:

$25usd/pc-$85usd/pc

Size:

1/2 Inch - 24 Inch

Face:

Ring Type Joint

Disadvantages:

Expensive Compared To Other Materials

Surface Finish:

Smooth, Machined, Sandblasted

Package:

Wooden Case, Pallet, Etc.

Technique:

Forged, CNC Machined

Working Temp:

-60℃~250℃

Weight:

Varies Depending On Size And Pressure Rating

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5 tons per month

Highlight:

NC Machined Titanium Pipe Blind Flange

Raised Face Titanium Pipe Blind Flange

Gr12 Titanium Pipe Blind Flange

Product Description

NC Machined BL RF Titanium Pipe Blind Flange With Raised Face In Grades Gr2, Gr7, And Gr12

ASME B16.5 Gr2 Gr5 Gr9 3'' 4'' Type - FF RF Titanium Slip On Flange in11 0.6~32Mpa

A titanium flange is a high-performance component made from titanium or titanium alloy designed to connect pipes securely. Featuring bolt holes for tight fastening and gasket compatibility for leak-proof seals, these flanges offer exceptional durability and corrosion resistance.

This titanium blind flange with raised face is available in Grades Gr2, Gr7, and Gr12, specifically engineered for demanding chemical industry applications. Manufactured to meet ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, and DIN2627-2628 standards, it combines precision forging with CNC machining for superior quality.

Available in multiple grades: Gr1, Gr2, Gr5, Gr7, Gr12
Comprehensive size range: 1/2" to 30" NB (NPS 1/2 to NPS 24)
Wide pressure rating options from PN0.25 to 32 MPa
Multiple sealing surface types: RF, FF, TG, RJ
Precision manufactured through forging and CNC machining

Product	titanium blind flange
Item Name	BL RF gr2 gr7 gr12 titanium pipe blind flange with raised face
Application	chemical industry
Standard	ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Material	Gr1, Gr2, Gr5, Gr7, Gr12
Size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure	PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Sealing Surface	RF, FF, TG, RJ etc.
Technique	Forged and CNC Machined
