Ti Titanium Fixed Balls Grade 5 Grade 9 Titanium Alloy Ball

Name: Ti Titanium Fixed Balls Grade 5 Grade 9 Titanium Alloy Ball
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Balls
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Balls
MOQ:	10 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

ISO9001, CE, API,etc

Standard:

ASTM B863 AWS A5.16 ASTM F136 ASTM F67 Etc.

Operation:

Manual, Gear Operated, Pneumatic, Electric

Ball Grades:

Gr1 Gr2 Gr5 Gr9 Gr23 Etc.

Testing Standards:

JB/T9092、GB/T13927、API6D、API598

Size:

1.0mm-10.0mm

Temperature Range:

-196°C To 600°C

Surface:

Metallic Luster

Applications:

Water Gas Steam, Industrial Applications

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Grade 9 Titanium Alloy Ball

Grade 5 Titanium Alloy Ball

Ti Titanium Fixed Balls

Product Description

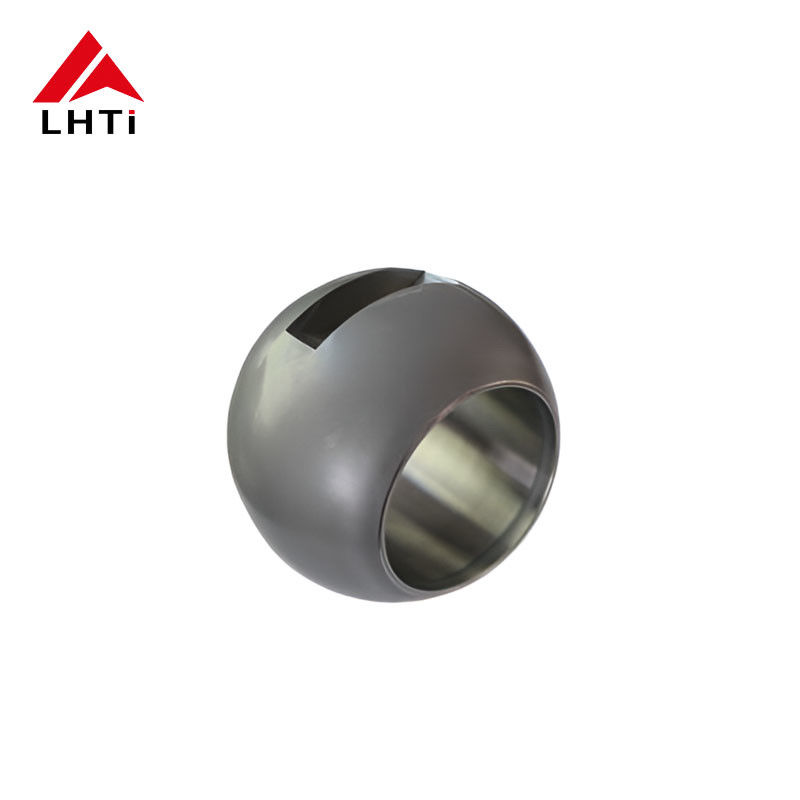

Ti Titanium Fixed Balls Grade 5 & Grade 9 Titanium Alloy Ball

Precision-engineered titanium balls manufactured from high-quality titanium alloys for demanding industrial applications requiring exceptional performance characteristics.

Titanium Ball Properties

Corrosion Resistance

Exceptional resistance to corrosion in aggressive environments including seawater and chemical processing plants, ensuring long-term durability and reliability.

Lightweight Construction

Low density provides significant weight reduction compared to steel while maintaining comparable strength, ideal for aerospace and automotive applications.

High Strength Performance

Superior strength-to-weight ratio enables titanium balls to withstand high loads and pressures in demanding operational conditions.

Biocompatibility

Non-toxic and biocompatible properties make these balls suitable for medical implants, prosthetics, and dental instruments.

Thermal Stability

Maintains mechanical integrity across wide temperature ranges from cryogenic to moderately high temperatures.

Titanium Grade Specifications

Grade 1 Titanium

High ductility and superior corrosion resistance, primarily used in chemical processing applications requiring maximum formability.

Grade 2 Titanium

Most widely used grade offering optimal balance between strength and ductility with excellent corrosion resistance for piping systems and general applications.

Grade 5 Titanium (Ti 6Al-4V)

Premium alloy grade providing significantly increased strength with excellent heat and corrosion resistance for high-performance applications.

Grade 7 Titanium

Enhanced corrosion resistance with excellent weldability and fabricability, particularly effective against reducing acids and hot halides.

Grade 12 Titanium

Improved heat resistance and strength while maintaining good weldability and corrosion resistance properties.

Grade 23 Titanium (Ti 6Al-4V ELI)

Extra low interstitial grade offering higher fracture toughness and improved ductility for medical applications and critical high-end uses.

Titanium Ball Specifications

Product	Titanium and Titanium alloy ball
Size	Dia.: 1.0mm-6.0mm (0.040"-0.236") or customized (plus tooling fee)
Material	Gr.1, Gr.2, Gr.3, Gr.4, Gr.7, Gr.9, Gr.12
Surface	Metallic luster

Grade 5 vs Grade 9 Titanium Comparison

Grade 5 Titanium (Ti-6Al-4V)

Composition: 90% titanium, 6% aluminum, 4% vanadium with trace iron and oxygen

Properties: Highest strength-to-weight ratio, excellent tensile strength, superior heat resistance, excellent corrosion resistance

Applications: Aerospace components, aircraft structures, engine parts, high-performance equipment

Grade 9 Titanium (Ti-3Al-2.5V)

Composition: 92.5% titanium, 3% aluminum, 2.5% vanadium with trace elements

Properties: Balanced strength and formability, excellent corrosion resistance, superior weldability

Applications: Marine components, bicycle frames, sports equipment, industrial pumps and valves

Application Areas

Grade 5 Titanium Ball Applications

Aerospace bearings and valve components
Medical implants and dental instruments
High-performance sports equipment
Precision industrial instruments

Grade 9 Titanium Ball Applications

Marine underwater bearings and equipment
Industrial pumps, valves, and flow control devices
Bicycle bearings and sporting goods
Chemical processing mixing and stirring applications
