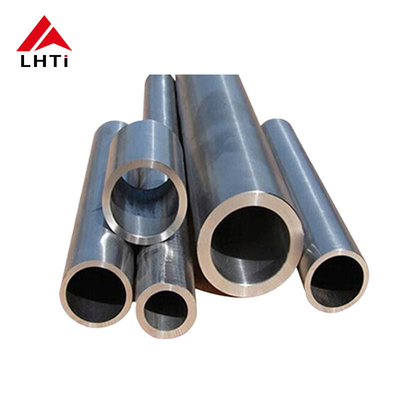

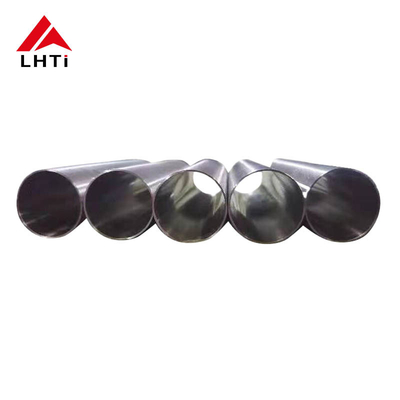

Titanium Grade 5 Seamless Tube ASTM B338 Titanium Gr 5 Tube For Chemical Industry Introduction

Grade 5 Seamless Tube ASTM B338 Titanium Gr 5 Tube For Chemical Industry Introduction

Introduction of Titanium Seamless Tube:

Titanium is indeed a versatile alloy with applications spanning from medical devices to aerospace engineering. It can be easily alloyed with elements like aluminum, vanadium, and copper to create various grades tailored for specific purposes. Seamless titanium tubes are available in grades ranging from 1 to 38, depending on the supplier's requirements. Additionally, titanium alloy rods produced under ASTM standards are supplied in different conditions to meet diverse industrial needs.

Titanium tubing combines the exceptional properties of titanium with the versatility of cylindrical metal forms. Titanium, known for its high strength-to-weight ratio and low density, is favored for its robustness and lightness in weight. Its corrosion resistance extends to harsh environments such as seawater and chlorine. Tubing, a cylindrical component available in various diameters and lengths, serves diverse applications due to its hollow structure.

Grade 5 seamless titanium tubes conforming to ASTM B338 standards are highly sought after for their exceptional properties in demanding applications. ASTM B338 specifies seamless and welded titanium and titanium alloy tubes suitable for heat exchangers and other industrial applications where corrosion resistance, high strength, and heat resistance are critical.

Grade 5 titanium, also known as Ti-6Al-4V, is an alloy containing 6% aluminum and 4% vanadium. This alloy offers a remarkable combination of strength, light weight, corrosion resistance, and biocompatibility, making it versatile across various industries. Seamless tubes manufactured to ASTM B338 ensure uniform quality, dimensional accuracy, and consistent mechanical properties necessary for critical applications such as aerospace components, chemical processing equipment, and marine environments.

These tubes are fabricated through precision processes to meet stringent requirements for heat treatment, surface finish, and mechanical properties, ensuring they perform reliably under extreme conditions. Whether used in structural components or intricate heat exchanger systems, Grade 5 seamless tubes provide durability and longevity, meeting the stringent standards expected in modern industrial applications.

Titanium Tubing Grades Guide:

1. Grade 1 Titanium: Known for its high ductility, grade 1 titanium is the softest and most formable of all the commercially pure titanium grades. It's mostly used in applications that require superior corrosion resistance in environments such as the chemical processing industry.

2.

3. Grade 2 Titanium: This is the most widely used titanium grade. It offers a good balance between strength and ductility, with excellent corrosion resistance. It is used in a broad range of applications, including flanges for piping systems.

4.

5. Grade 5 Titanium (Ti 6Al-4V): This is an alloyed grade and the most commonly used of all titanium alloys. It significantly increases the strength of the flanges compared to pure titanium grades. Grade 5 titanium is used in high-strength applications where both heat and corrosion resistance are required.

6.

7. Grade 7 Titanium: Featuring excellent weldability and fabricability, this grade includes palladium for enhanced corrosion resistance, particularly against reducing acids and localized attack in hot halides.

8.

9. Grade 12 Titanium: This grade offers enhanced heat resistance and strength compared to other commercially pure grades. It also maintains good weldability and corrosion resistance.

10.

11. Grade 23 Titanium (Ti 6Al-4V ELI): This grade is similar to Grade 5 but has extra low interstitials (ELI), making it preferable for higher fracture toughness and improved ductility. It's often used in medical applications and also suitable for flanges in critical, high-end applications.

    • Titanium: Titanium has exceptional corrosion resistance, especially in aggressive environments such as seawater, chlorides, and oxidizing acids. It forms a protective oxide layer that enhances its resistance to corrosion.
    • Stainless Steel: Stainless steel also offers good corrosion resistance, but not to the extent of titanium. It may require additional coatings or treatments for enhanced protection in corrosive environments.
    • Carbon Steel: Carbon steel is susceptible to corrosion, particularly in moist or acidic conditions, and requires coatings or alloys for protection.
    • Inconel: Inconel alloys provide excellent resistance to oxidation and corrosion in extreme environments, including high-temperature and pressure conditions.

Technology Data Sheet of Titanium Tube:

The Product Process of Titanium Tubes:

The production process of titanium tubes involves several key steps to ensure quality, precision, and suitability for various applications. Here’s an overview of the typical process:

Raw Material Selection: Titanium starts as titanium sponge, which is produced through the Kroll process or the Hunter process. The sponge is then melted into ingots or billets of the desired titanium grade (e.g., Grade 1, Grade 2, Grade 5).

Tube Forming: There are several methods for forming titanium tubes:

• Extrusion: This method involves forcing heated titanium through a die to create a tube shape. It’s commonly used for producing seamless tubes with uniform wall thickness.
• Welded Tubes: Titanium tubes can also be formed by welding flat titanium sheets or strips together. This method allows for larger diameters and varying wall thicknesses.

Heat Treatment: After forming, titanium tubes often undergo heat treatment to improve mechanical properties, such as strength and ductility, and to relieve stresses introduced during forming or welding.

Cold Drawing (Optional): Cold drawing involves pulling the titanium tube through a series of dies to reduce its diameter and achieve precise dimensions. This process can improve surface finish, tolerance, and mechanical properties.

Surface Treatment: Titanium tubes may undergo surface treatments such as polishing, pickling, or passivation to enhance corrosion resistance or achieve specific surface finishes required by the application.

Quality Control: Throughout the production process, quality control measures are crucial. This includes non-destructive testing (NDT) methods such as ultrasonic testing or eddy current testing to detect defects or ensure wall thickness uniformity.

Final Inspection and Certification: Before packaging and shipping, titanium tubes are thoroughly inspected to ensure they meet industry standards (e.g., ASTM B338 for seamless tubes). Certifications are issued to verify material composition, mechanical properties, and compliance with customer specifications.

Packaging and Shipping: Finally, titanium tubes are carefully packaged to protect against damage during transit. Depending on the application, tubes may be shipped in bundles, crates, or individually packaged to ensure they arrive in optimal condition.

Applications of Titanium Tube:

Titanium tubes find diverse applications across several industries due to their exceptional properties, including high strength-to-weight ratio, corrosion resistance, and biocompatibility. Here are some key applications:

Aerospace: Titanium tubes are widely used in the aerospace industry for applications such as aircraft hydraulic systems, airframes, landing gear components, and exhaust ducts. Their lightweight nature helps reduce overall aircraft weight, enhancing fuel efficiency and performance.

Industrial: In industrial settings, titanium tubes are utilized in heat exchangers, condensers, and reactor vessels where resistance to corrosion from aggressive chemicals and high temperatures is crucial. They are also employed in desalination plants for their resistance to seawater corrosion.

Medical: Titanium tubes are essential in medical applications, particularly for manufacturing implants and surgical instruments. Titanium's biocompatibility and resistance to bodily fluids make it ideal for implants such as hip stems, bone plates, and dental implants.

Marine: Titanium tubes are used in marine environments for seawater-cooled condensers, heat exchangers, and piping systems. Their corrosion resistance ensures longevity and reliability in saltwater environments.

Automotive: Titanium tubes are employed in automotive applications, especially in high-performance vehicles, for components like exhaust systems and intake piping. Their high strength and heat resistance contribute to improved engine performance.
