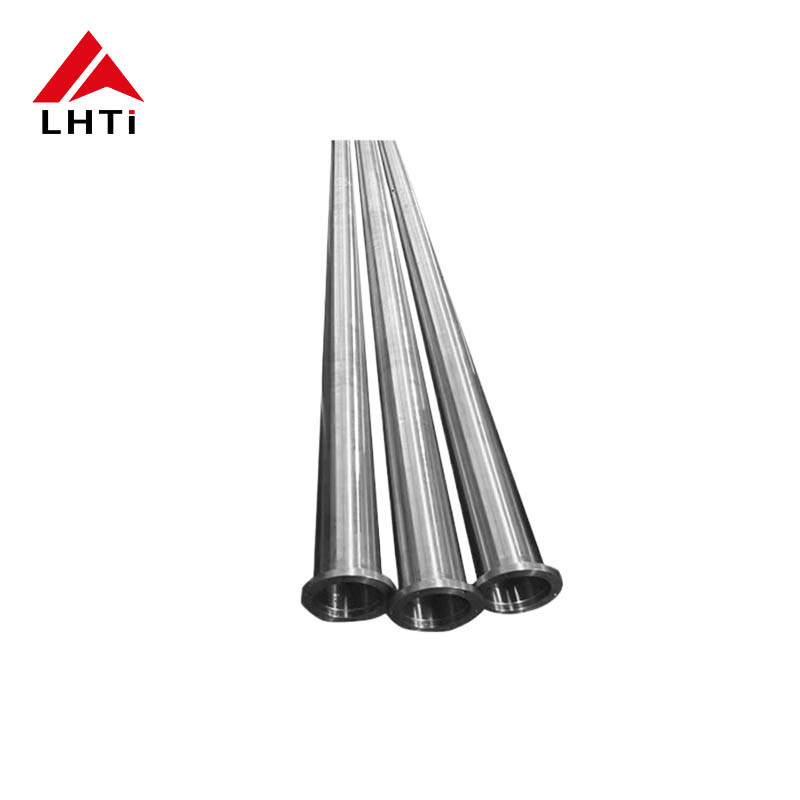

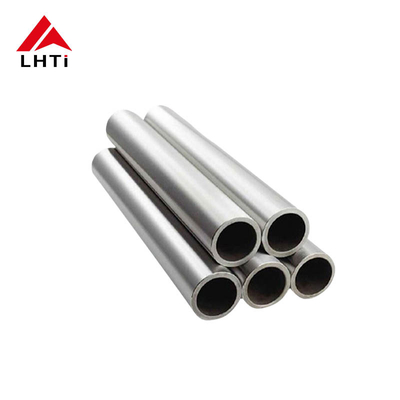

Titanium Seamless Tube ASME SB338/ASME SB337/ASME SB861 GR1 GR2 GR7 GR12

Titanium Seamless Tube ASME SB338/ASME SB337/ASME SB861 GR1 GR2 GR7 GR12

Introduction of Titanium Seamless Tube and Titanium Tube:

Titanium seamless tubes and titanium tubes are essential components in various industries due to titanium's exceptional properties. Here's an introduction to each:

Titanium Seamless Tube:

• Definition: A titanium seamless tube is manufactured from titanium alloys using a seamless process, ensuring a uniform structure without welded seams.

• Properties: Seamless tubes offer high strength, excellent corrosion resistance, and superb mechanical properties. They are lightweight yet robust, making them suitable for applications where weight reduction and durability are critical.

• Manufacturing: Produced through processes like extrusion or cold drawing, ensuring precise dimensions and consistent quality. The seamless construction minimizes the risk of defects compared to welded tubes.

Titanium Tube:

• Definition: Titanium tubes encompass a broader range of titanium tube types, including seamless, welded, and other forms, depending on manufacturing processes and applications.

• Properties: Similar to seamless tubes, titanium tubes exhibit exceptional corrosion resistance, high strength-to-weight ratio, and biocompatibility. They are available in various grades and sizes to meet specific industrial needs.

• Manufacturing: Produced through methods such as seamless extrusion, welded processes (TIG or laser welding), or even as formed tubes (e.g., coiled tubes). The manufacturing method influences the tube's suitability for different environments and applications.

Specification and Standard for Titanium Tubes and Its Alloys:

Quality tests for titanium and titanium alloy tubes are crucial to ensure they meet international standards and specific customer requirements.

Dimensional Inspection: Verify that the tubes meet specified dimensions, including outer diameter (OD), wall thickness, and length, as per standards like ASME SB338, ASTM B338, or ASTM B337.

Visual Inspection: Surface examination to detect any defects such as scratches, pits, cracks, or other surface irregularities that could affect performance or integrity.

Chemical Composition Analysis: Ensure the titanium alloy composition complies with the specified requirements in terms of elements such as titanium, aluminum, vanadium, and others, as per ASTM or ASME standards.

Mechanical Testing:

• Tensile Testing: Determine the tensile strength, yield strength, and elongation of the material to ensure it meets mechanical property requirements.
• Hardness Testing: Measure the hardness of the tube material, which can indicate its strength and resistance to deformation.

Non-Destructive Testing (NDT):

• Ultrasonic Testing (UT): Detect internal defects such as voids, inclusions, or discontinuities using ultrasonic waves.
• Radiographic Testing (RT): Utilize X-rays or gamma rays to inspect welds and detect internal defects in the tube material.
• Eddy Current Testing (ECT): Detect surface and near-surface defects, cracks, or discontinuities in conductive materials like titanium tubes.

Hydrostatic Testing: Subject the tubes to internal pressure to ensure they can withstand specified pressures without leaking or rupturing.

Corrosion Testing: Assess the material's resistance to corrosion in different environments, ensuring it meets required standards for long-term durability.

Microstructure Examination: Evaluate the microstructural characteristics of the tube material to ensure it meets specified grain size and structure requirements.

Surface Finish Inspection: Measure and inspect the surface finish of the tubes to ensure it meets specified smoothness or roughness criteria.

Documentation and Certification: Provide comprehensive documentation of test results, material certifications, and compliance with international standards. Third-party inspections from recognized agencies such as TUEV, SGS, Lloyd's Register (LR), Moody, Intertek (ITS), or DNV may also be conducted to validate quality and compliance.

Applications of Titanium Tube:

Titanium tubes find diverse applications across several industries due to their exceptional properties, including high strength-to-weight ratio, corrosion resistance, and biocompatibility. Here are some key applications:

Aerospace: Titanium tubes are widely used in the aerospace industry for applications such as aircraft hydraulic systems, airframes, landing gear components, and exhaust ducts. Their lightweight nature helps reduce overall aircraft weight, enhancing fuel efficiency and performance.

Industrial: In industrial settings, titanium tubes are utilized in heat exchangers, condensers, and reactor vessels where resistance to corrosion from aggressive chemicals and high temperatures is crucial. They are also employed in desalination plants for their resistance to seawater corrosion.

Medical: Titanium tubes are essential in medical applications, particularly for manufacturing implants and surgical instruments. Titanium's biocompatibility and resistance to bodily fluids make it ideal for implants such as hip stems, bone plates, and dental implants.

Marine: Titanium tubes are used in marine environments for seawater-cooled condensers, heat exchangers, and piping systems. Their corrosion resistance ensures longevity and reliability in saltwater environments.

Automotive: Titanium tubes are employed in automotive applications, especially in high-performance vehicles, for components like exhaust systems and intake piping. Their high strength and heat resistance contribute to improved engine performance.
