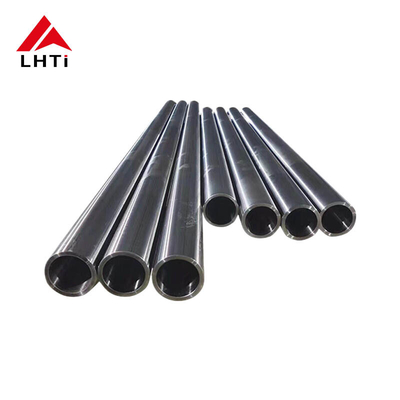

Grade 2 Titanium Seamless Tube & Pipe 4 Inch Titanium Pipe From 0.250" OD X 0.035" To 1.000" OD X 0.035"

Grade 2 Titanium Seamless Tube & Pipe 4 Inch Titanium Pipe from 0.250" OD x 0.035" to 1.000" OD x 0.035"


Introduction of Titanium Tube Grade 2:

Grade 2 titanium seamless tubes and pipes are popular choices in various industries due to their excellent corrosion resistance, formability, and weldability. Here are some details specific to Grade 2 titanium seamless tubes and pipes:

Grade 2 Titanium Seamless Tube:

• Composition: Pure titanium (99.2% titanium).

• Characteristics:

  • Corrosion Resistance: Excellent resistance to corrosion in oxidizing and mildly reducing environments, similar to Grade 2 titanium in other forms.
  • Mechanical Properties: Typically meets ASTM B338 standards, which specify properties such as minimum tensile strength of 50 ksi (345 MPa), minimum yield strength of 40 ksi (275 MPa), and minimum elongation of 20%.
  • Formability: Easy to fabricate into various shapes and sizes due to its good formability.
  • Applications: Used in aerospace, chemical processing, marine, and medical industries where corrosion resistance, lightweight properties, and biocompatibility are crucial.

• Dimensions:

  • Outer Diameter (OD): Available in various sizes, typically ranging from small diameters up to several inches, depending on application requirements.
  • Wall Thickness: Varied based on specific needs, ensuring strength and durability while meeting pressure requirements.
  • Length: Supplied in standard lengths or custom lengths as per project specifications.

Grade 2 Titanium Seamless Pipe:

• Composition: Pure titanium (99.2% titanium).

• Characteristics:

  • Corrosion Resistance: Exhibits excellent resistance to corrosion, making it suitable for applications where exposure to corrosive environments is a concern.
  • Mechanical Properties: Meets ASTM B337 standards, which specify similar mechanical properties as ASTM B338 for seamless tubes.
  • Weldability: Easily weldable using common welding techniques such as TIG (GTAW) or electron beam welding (EBW).
  • Applications: Used in chemical processing plants, heat exchangers, piping systems, and other industrial applications requiring reliable corrosion-resistant materials.

• Dimensions:

  • Sizes: Available in a range of diameters and wall thicknesses to suit different pressure and flow requirements.
  • Ends: Typically comes with plain ends or beveled ends for welding, depending on the application and installation requirements.
  • Surface Finish: Often supplied with a polished or mill finish, ensuring smooth surfaces suitable for various applications.

Grade 2 Titanium Tube Specifications:

Different Grades of Titanium:

Excellent Corrosion Resistance:

Grade 2 titanium exhibits outstanding resistance to corrosion, including in environments ranging from mildly reducing to highly oxidizing. This property is crucial for applications exposed to corrosive chemicals, seawater, and industrial atmospheres.

High Strength-to-Weight Ratio:

Titanium is known for its exceptional strength-to-weight ratio, making Grade 2 titanium seamless tubes strong yet lightweight. This characteristic is particularly beneficial in aerospace and marine applications where weight savings are critical without compromising structural integrity.

Superior Formability and Fabrication:

Grade 2 titanium seamless tubes are highly formable, allowing for easy fabrication into complex shapes and configurations. This property simplifies manufacturing processes and reduces production costs compared to other materials that may require more extensive shaping processes.

Biocompatibility:

Titanium is biocompatible, meaning it is non-toxic and well-tolerated by the human body. Grade 2 titanium seamless tubes are thus widely used in medical implants, such as surgical instruments, joint replacements, and dental applications, where compatibility with bodily tissues is essential.

Excellent Weldability:

Grade 2 titanium seamless tubes exhibit good weldability using common welding techniques such as TIG (GTAW) and electron beam welding (EBW). This facilitates easy joining and integration into larger systems or assemblies without compromising the material's integrity.

Long-Term Durability:

Titanium has a high resistance to fatigue and erosion, ensuring long-term durability even under challenging operating conditions. This characteristic makes Grade 2 titanium seamless tubes suitable for critical applications where reliability and maintenance-free operation are paramount.

Wide Range of Applications:

Due to its combination of properties—corrosion resistance, strength, lightweight, and biocompatibility—Grade 2 titanium seamless tubes find applications across diverse industries. These include aerospace, chemical processing, oil and gas, marine, medical, and even sporting goods where high performance and reliability are required.

Chemical Composition of ASME SB338 Ti Gr 2 Seamless Pipe:

Applications of Grade 2 Titanium Seamless Tubes:

Grade 2 titanium seamless tubes find numerous applications across various industries where their unique properties are highly advantageous. Some of the key applications include:

Aerospace Industry:

Heat Exchangers: Grade 2 titanium seamless tubes are used in heat exchangers due to their excellent corrosion resistance and thermal conductivity properties. They help in efficiently transferring heat in aircraft engines and air conditioning systems.

Hydraulic Tubing: Titanium tubes are used in hydraulic systems of aircraft where lightweight, corrosion resistance, and high strength are critical factors.

Chemical Processing:

Process Piping: Titanium seamless tubes are ideal for transporting corrosive chemicals in chemical processing plants. Their resistance to a wide range of corrosive media, including acids and chlorides, makes them suitable for handling aggressive chemicals safely.

Heat Transfer Equipment: Used in heat exchangers, condensers, and reactors where corrosion resistance is essential for maintaining operational efficiency and safety.

Medical Applications:

Implants: Grade 2 titanium seamless tubes are used in medical implants and surgical instruments due to their biocompatibility and resistance to corrosion within the human body. Examples include bone screws, joint replacements, and dental implants.

Medical Devices: They are also used in medical devices such as catheters and endoscopic instruments where biocompatibility and durability are crucial.

Marine Industry:

Seawater Desalination: Titanium seamless tubes are used in heat exchangers and tubing systems for seawater desalination plants due to their resistance to corrosion from seawater and saline environments.

Shipbuilding: They are used in critical components of ships and submarines where lightweight materials with high strength and corrosion resistance are required.

Oil and Gas Industry:

Offshore Platforms: Titanium tubes are used in offshore oil rigs and platforms where they withstand corrosive saltwater environments and provide long-term reliability in structural applications.

Pipelines: Used in pipelines for transporting corrosive fluids and gases where conventional materials may not offer adequate resistance to corrosion.
