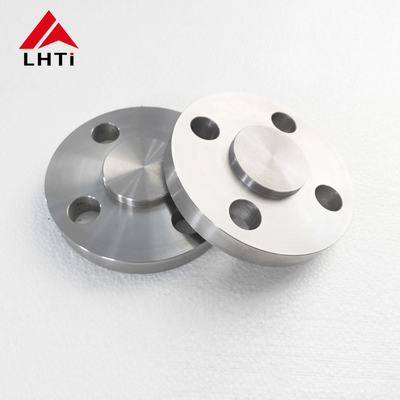

Lightweight High Strength Titanium Blind Flange BLRF with Low Thermal Expansion for Oil and Gas Pipelines

Name: Lightweight High Strength Titanium Blind Flange BLRF with Low Thermal Expansion for Oil and Gas Pipelines
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Blind Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Blind Flange
MOQ:	5-10 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

ISO9001,CE,etc

Product Standard:

ASME B16.5 Blind Flange BLRF

Size:

1/2'' Inch To 24'' Inch

Process:

Casting, Forging, Machining, Etc.

Special Features:

Lightweight, High Strength, Low Thermal Expansion, Non-Magnetic

Pressure Rating:

Class 300

Surface Treatment:

Pickled,sand Blasting, Rolling Blast,galvinizing,vanished

Face Types:

Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face

Materials:

Gr1 Gr2 Gr5 Gr7 Gr12 Etc.

Connection Type:

Welded/Threaded/Flanged

Application:

Oil And Gas, Chemical Industry, Water Treatment, Etc.

Quality Control:

Professional Inspection

Technology:

Heat Treatment,casting ,forging

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Class 300 Titanium Blind Flange

ASME B16.5 Titanium Blind Flange

Product Description

Titanium Blind Flange For Oil And Gas Pipelines

ASME B16.5 Titanium Blind Flange Overview

Our Titanium Blind Flange Raised Face (Ti Gr2 & Gr7 BLRF) is engineered for oil and gas pipeline applications, meeting ASME B16.5 standards for dimensions, tolerances, materials, marking, and testing.

Material Specifications

Titanium Grade 2 (Ti Gr2): Commercially pure titanium offering excellent corrosion resistance, formability, and weldability for industrial applications.
Titanium Grade 7 (Ti Gr7): Enhanced with palladium for superior corrosion resistance in reducing and mildly oxidizing environments, ideal for chemical processing and marine applications.

Product Features

A titanium blind flange is a solid disk flange without a central bore, designed to cap off pipelines or close systems temporarily or permanently.

Key Benefits

Material: Titanium construction provides exceptional corrosion resistance for aggressive environments
Design: Solid disk configuration creates a sealed closure for pipelines
Functionality: Serves as both a pipeline cap and access point for maintenance
Adaptability: Can be machined to accommodate various pipe sizes and connection types
Performance: Provides secure, leak-proof seals in harsh operating conditions

Applications

Ideal for chemical processing, oil and gas, marine, aerospace, and other industries requiring durable, corrosion-resistant pipeline components.

ASME B16.5 Class 300 Specifications

Nominal Pipe Size	Outside Diameter (in/mm)	Overall Diameter (in/mm)	Flange Thickness min (in/mm)	Face Diameter (in/mm)	Number of Holes	Bolt Hole Diameter (in/mm)	Diameter of Circle of Holes (in/mm)	Weight (kg/piece)
1/2	0.840/21.30	3.750/95.20	0.560/14.20	1.380/35.10	4	0.620/15.70	2.620/66.55	0.64
3/4	1.050/26.70	4.620/117.3	0.620/15.70	1.690/42.90	4	0.750/19.00	3.250/82.50	1.11
1	1.315/33.40	4.880/123.9	0.690/17.50	2.000/50.80	4	0.750/19.00	3.500/88.90	1.39
1 1/4	1.660/42.20	5.250/133.3	0.750/19.00	2.500/63.50	4	0.750/19.00	3.880/98.50	1.79
1 1/2	1.900/48.30	6.120/155.4	0.810/20.60	2.880/73.15	4	0.880/22.3	4.500/114.3	2.66
2	2.375/60.30	6.500/165.1	0.880/22.30	3.620/91.90	8	0.750/19.10	5.000/127.0	3.18
2 1/2	2.875/73.00	7.500/190.5	1.000/25.40	4.120/104.6	8	0.880/22.30	5.880/1.493	4.85
3	3.500/88.90	8.250/209.5	1.120/28.40	5.000/127.0	8	0.880/22.30	6.620/168.1	6.81
3 1/2	4.000/101.6	9.000/228.6	1.190/30.20	5.500/139.7	8	0.880/22.30	7.250/184.1	8.71
4	4.500/114.3	10.00/254.0	1.250/31.70	6.190/157.2	8	0.880/22.30	7.800/200.1	11.5
5	5.563/141.3	11.00/279.4	1.380/35.00	7.310/185.7	8	0.880/22.30	9.250/234.9	15.6
6	6.625/168.3	12.50/317.5	1.440/36.50	8.500/215.9	12	0.880/22.30	10.62/269.7	20.9
8	8.625/219.1	15.00/381.0	1.620/41.10	10.62/269.7	12	1.000/25.40	13.00/330.2	34.3
10	10.75/273.0	17.50/444.5	1.880/47.70	12.75/323.9	16	1.120/28.40	15.25/387.3	53.3
12	12.75/323.8	20.50/520.7	2.000/50.80	15.00/381.0	16	1.250/31.70	17.75/450.8	78.8
14	14.00/355.6	23.00/584.2	2.120/53.80	16.25/412.8	20	1.250/31.70	20.25/514.3	105
16	16.00/406.4	25.50/647.7	2.250/57.15	18.50/469.9	20	1.380/35.00	22.50/571.5	137
18	18.00/457.2	28.00/711.2	2.380/60.45	21.00/533.4	24	1.380/35.00	24.75/628.6	175
20	20.00/508.0	30.50/774.7	2.500/63.50	23.00/584.2	24	1.380/35.00	27.00/685.8	221
24	24.00/609.6	36.00/914.4	2.750/69.85	27.25/692.2	24	1.620/41.10	32.00/812.8	339
