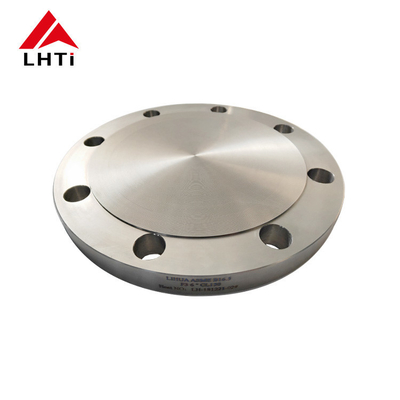

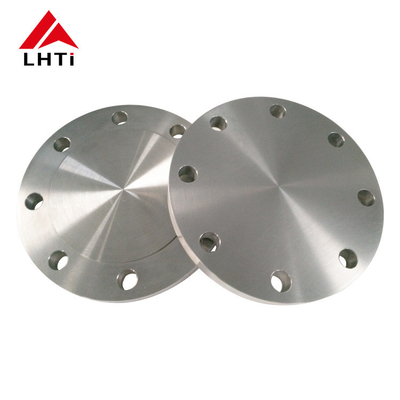

ASME B16.5 Titanium Blind Flange Class 150 Grade 2 Grade 5 Raised Face BLRF For Pipeline Systems

3. Grades of ASME B16.5 Titanium Blind Flange Class 150

Titanium Blind flanges are commonly used in piping systems due to their strength, light weight, and excellent corrosion resistance. These flanges are available in various grades, each tailored for specific applications and environments.

1. Grade 1 Titanium: Known for its high ductility, grade 1 titanium is the softest and most formable of all the commercially pure titanium grades. It's mostly used in applications that require superior corrosion resistance in environments such as the chemical processing industry.

2.

3. Grade 2 Titanium: This is the most widely used titanium grade. It offers a good balance between strength and ductility, with excellent corrosion resistance. It is used in a broad range of applications, including flanges for piping systems.

4.

5. Grade 5 Titanium (Ti 6Al-4V): This is an alloyed grade and the most commonly used of all titanium alloys. It significantly increases the strength of the flanges compared to pure titanium grades. Grade 5 titanium is used in high-strength applications where both heat and corrosion resistance are required.

6.

7. Grade 7 Titanium: Featuring excellent weldability and fabricability, this grade includes palladium for enhanced corrosion resistance, particularly against reducing acids and localized attack in hot halides.

8.

9. Grade 12 Titanium: This grade offers enhanced heat resistance and strength compared to other commercially pure grades. It also maintains good weldability and corrosion resistance.

10.

11. Grade 23 Titanium (Ti 6Al-4V ELI): This grade is similar to Grade 5 but has extra low interstitials (ELI), making it preferable for higher fracture toughness and improved ductility. It's often used in medical applications and also suitable for flanges in critical, high-end applications.

4. Specifications for ASME B16.5 Class 150 Titanium Blind Flange

5. Advantages of ASME B16.5 Titanium Blind Flanges:

ASME B16.5 titanium blind flanges offer several advantages that cater to specific industrial needs:

Closure and Sealing: Blind flanges are used to close the end of a piping system, providing a solid barrier that prevents flow through the pipeline. This is essential during maintenance, repairs, or when a section of the pipeline is not in use. Titanium blind flanges, conforming to ASME B16.5 standards, ensure a secure closure and effective sealing, minimizing the risk of leaks or contamination.

Corrosion Resistance: Titanium's inherent corrosion resistance makes ASME B16.5 titanium blind flanges ideal for use in corrosive environments. They resist degradation from acids, seawater, and other aggressive substances, ensuring long-term reliability and reducing maintenance requirements.

High Strength-to-Weight Ratio: Titanium possesses a superior strength-to-weight ratio compared to steel, which allows for robust performance while keeping the overall weight of the flange and piping system lower. This characteristic is beneficial in applications where weight reduction is critical, such as aerospace and marine industries.

Temperature Resistance: Titanium blind flanges maintain their mechanical properties and corrosion resistance at elevated temperatures, making them suitable for high-temperature applications in industries such as chemical processing, petrochemicals, and power generation.

Biocompatibility: Like other titanium components, ASME B16.5 titanium blind flanges are biocompatible and non-toxic, making them suitable for applications in pharmaceutical, food processing, and medical industries where product purity and safety are essential.

Longevity and Durability: Titanium blind flanges offer excellent durability and resistance to degradation over time, ensuring a longer service life compared to other materials. This durability reduces replacement frequency and associated downtime, contributing to overall cost-effectiveness.

Versatility in Applications: ASME B16.5 titanium blind flanges are versatile and can be used in a wide range of applications, including but not limited to chemical processing, oil and gas refining, aerospace, marine, and medical equipment manufacturing.

Ease of Maintenance: Titanium blind flanges are relatively easy to install and maintain due to their corrosion resistance and durability. This ease of maintenance translates to reduced operational disruptions and lower lifecycle costs.

6. Packages of Titanium Blind Flange

Rust Prevention

• VCI (Volatile Corrosion Inhibitor) Wrapping: Titanium flanges are wrapped in VCI paper to prevent any surface corrosion during transit. This material releases a chemical vapor that forms a protective layer on the metal surfaces.
• Grease or Oil Coating: A light layer of grease or oil may be applied to protect the flange surfaces, especially when being shipped over long distances or stored for extended periods.

Physical Protection

• Bubble Wrap or Foam: Each flange is typically wrapped in bubble wrap or surrounded by foam to cushion against impact during transportation.
• Cardboard Separators: When multiple flanges are packed in one box, cardboard separators are used to prevent them from touching and potentially scratching or damaging each other.

Robust Outer Packaging

• Wooden Crates or Plywood Boxes: Titanium flanges are often shipped in wooden crates or plywood boxes, which provide sturdy protection from mechanical damage and are stackable, facilitating easier and safer handling.
• Palletization: For large orders, flanges may be palletized. Each pallet is usually shrink-wrapped to secure the boxes or crates during handling and shipping.

Waterproofing

• Plastic Sheeting: Outer crates or boxes are often covered with thick plastic sheeting to protect against moisture, especially in humid or wet environments.

Labeling and Documentation

• Clear Labeling: Each package is clearly labeled with handling instructions, part numbers, and destination details to ensure proper handling and to facilitate tracking.
•
• Quality Assurance Documentation: Certificates of quality, material test reports, and compliance certificates are often included in the packaging or provided separately to ensure traceability and compliance with industry standards.

7. Titanium Blind Flange Inspections

Visual Testing (VT): This involves inspecting the surface of the weld and the flange visually to detect any visible defects such as cracks, porosity, or improper weld profiles.

Ultrasonic Testing (UT): This technique uses high-frequency sound waves to detect internal defects within the material, such as voids, inclusions, or cracks. It's particularly useful for thicker sections of titanium welds.

Radiographic Testing (RT): This method uses X-rays or gamma rays to produce images of the internal structure of the weld and flange. It's effective for detecting internal defects and assessing weld quality.

Magnetic Particle Testing (MT): MT is used to detect surface and near-surface defects in ferromagnetic materials. However, since titanium is not ferromagnetic, this method might not be applicable unless there are magnetic materials nearby or coatings that can be magnetized.

Penetrant Testing/Dye Penetrant (PT): PT involves applying a dye penetrant to the surface of the weld and then removing excess dye to reveal surface-breaking defects. This method is useful for detecting small cracks, porosity, and leaks.

Eddy Current Testing (ET): ET uses electromagnetic induction to detect surface and near-surface defects in conductive materials like titanium. It's useful for detecting corrosion, cracks, and variations in material properties.

Acoustic Emission (AE): AE involves monitoring the acoustic emissions from a material under stress to detect changes indicative of defects like cracks or leaks. It can be used for both weld and base material inspection.
