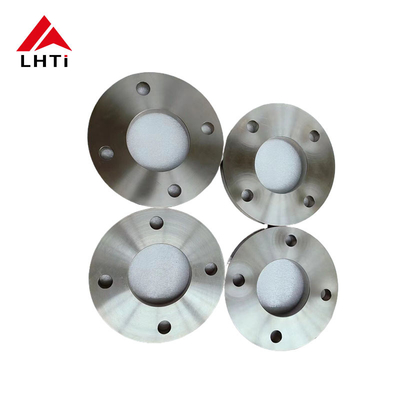

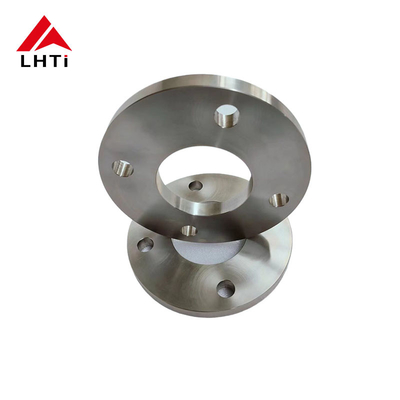

EN1092-01 Titanium Slip On Flange Gr2 Gr7 PN6 for Oil and Gas Industry Machining

2. Grades of  EN1092-01 Titanium Plate Flange

1. Commercially Pure Titanium:

   • Grade 2 (UNS R50400): This is the most widely used grade of titanium due to its excellent corrosion resistance, formability, and weldability. It is suitable for a wide range of industrial applications where moderate strength and good corrosion resistance are required.

2. Titanium Alloys:

   • Grade 5 (Ti-6Al-4V, UNS R56400): This is the most commonly used titanium alloy, known for its high strength, lightweight properties, and excellent corrosion resistance. It is used in aerospace, marine, and chemical processing industries.
   • Grade 7 (UNS R52400): Known for its excellent weldability and corrosion resistance in reducing and mildly oxidizing environments, Grade 7 titanium is often used in chemical processing equipment.
   • Grade 12 (UNS R53400): This titanium alloy offers excellent corrosion resistance in highly oxidizing environments and is well-suited for chemical processing and marine applications.
   • Grade 23 (Ti-6Al-4V ELI, UNS R56401): Similar to Grade 5, but with extra low interstitial (ELI) content, Grade 23 titanium alloy is used in medical and aerospace applications where biocompatibility and high strength are required.
3.

3. Specifications for DIN2501 PN6 Titanium Plate Flange

4. Why We Choose Titanium Plate Flanges in the Applications?

Titanium plate slip-on flanges are chosen for various applications primarily due to their exceptional corrosion resistance and strength-to-weight ratio. These flanges are ideal for environments where resistance to acids, alkalis, seawater, and other corrosive substances is crucial. Additionally, titanium's high strength relative to its weight makes it suitable for applications where minimizing weight without compromising structural integrity is essential. This characteristic is particularly advantageous in industries such as aerospace, marine, chemical processing, and medical, where both durability and performance under demanding conditions are paramount. Moreover, titanium plate slip-on flanges conform to EN1092-01 standards, ensuring compatibility and reliability in European piping systems.

Titanium plate slip on flanges are chosen in various industries primarily due to their unique properties and advantages that make them suitable for specific applications where other materials may not perform as effectively.

Titanium exhibits exceptional corrosion resistance, especially in aggressive environments such as seawater, chemical processing, and marine applications. This resistance to corrosion helps extend the lifespan of equipment and reduces maintenance costs.

Titanium has a high strength-to-weight ratio, making it significantly stronger than many other metals such as stainless steel or aluminum alloys while being much lighter. This property is crucial in aerospace, marine, and automotive industries where weight savings are critical.

Titanium is biocompatible and non-toxic, making it ideal for medical implants such as orthopedic implants and surgical instruments. It integrates well with the human body and minimizes the risk of adverse reactions.

​Titanium retains its mechanical properties at elevated temperatures, making it suitable for applications where thermal stability is required. This includes aerospace components and industrial processes involving high heat.

​Titanium has a low coefficient of thermal expansion, similar to stainless steel. This property helps maintain dimensional stability in various temperature conditions, ensuring reliability in critical applications.

​Titanium is known for its durability and long service life, even in harsh operating conditions. This makes it a cost-effective choice over the long term, despite its higher initial cost compared to some other materials.

Titanium plate flanges are preferred in industries where their unique combination of properties is essential, such as aerospace, chemical processing, desalination plants, and offshore oil rigs.

5. Common Standards of Titanium Flanges

6. Applicaions of Titanium Plate Flanges:

Titanium plate flanges find diverse applications across several industries, leveraging their unique properties for critical roles in piping systems:

Chemical Processing: Titanium's exceptional corrosion resistance makes plate flanges ideal for handling corrosive chemicals and acids in chemical plants.

Marine Industry: Due to its resistance to seawater corrosion, titanium plate flanges are used in shipbuilding and offshore platforms.

Aerospace: Titanium's high strength-to-weight ratio is advantageous in aerospace applications, where reducing weight while maintaining structural integrity is crucial.

Medical Equipment: Titanium's biocompatibility and resistance to bodily fluids make it suitable for medical devices and implants.

Oil and Gas: Used in pipelines and refineries where resistance to corrosion and high temperatures is required.

Food and Beverage: Titanium's inertness makes it suitable for handling food-grade materials and beverages.

Power Generation: Applications in power plants where resistance to high temperatures and corrosive environments is essential.
