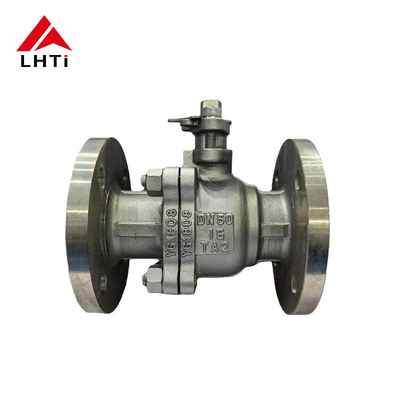

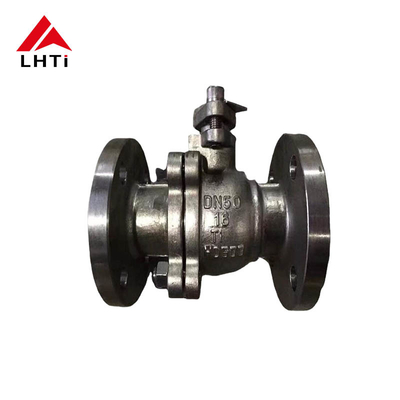

ANSI Class 150 Titanium Ball Valve Two Piece Ball Valve Gr2 Class 150 Full Port Fire Safe Flanged Ball Valve

Name: ANSI Class 150 Titanium Ball Valve Two Piece Ball Valve Gr2 Class 150 Full Port Fire Safe Flanged Ball Valve
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball Valve
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Ball Valve
MOQ:	5 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Operation:

Manual, Gear, Electric, Pneumatic

Full/Reduced Bore:

Full Bore

Model:

Ball Valve

Pressure Rating:

Class 150

Design Standard:

API 6D, ASME B16.34

Port Rating:

ASME Class 150, Flanged Ends

Actuator Type:

Manual, Pneumatic, Electric

Fire Safe Design:

API 607, API 6FA

End Connections:

Flanged, Threaded, Butt Weld, Socket Weld

Application:

Oil And Gas, Chemical, Power Generation, Mining

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Fire Safe Titanium Ball Valve

Gr2 Titanium Ball Valve

Two Piece Titanium Ball Valve

Product Description

ANSI Class 150 Titanium Ball Valve

Two Piece Ball Valve Gr2 Class 150 Full Port Fire Safe Flanged Ball Valve

ANSI Class 150 Titanium Ball Valve Two Piece Ball Valve TA2 Class 150 Full Port Fire Safe Flanged Ball Valve

Product Overview

A ball valve controls fluid flow by rotating a spherical ball with a central hole. Known for simple structure, easy operation, and excellent sealing performance, these valves are widely used in industrial pipeline systems including oil, natural gas, chemicals, power generation, and water treatment.

Titanium Ball Valve Grades

Titanium ball valves offer excellent corrosion resistance and strength for demanding environments in chemical, petroleum, pharmaceutical, and marine engineering applications:

TA1 (Gr1): Pure titanium with best ductility and toughness, easy to form and weld
TA2 (Gr2): Pure titanium with good overall performance including corrosion resistance and moderate strength
TA9 (Gr7): Titanium with 0.12-0.25% palladium addition for enhanced corrosion resistance in reducing environments
TA10 (Gr12): Titanium alloy with molybdenum and nickel for better strength and heat resistance
TC4 (Gr5): Titanium alloy with 6% aluminum and 4% vanadium for high strength, hardness, and corrosion resistance

Technical Specifications

Pressure Rating	Class 150-600Lb
Nominal Diameter	1/2" - 10"
Drive Mode	Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
American Standard Models	Q41F-150Lb(Ti), Q41F-300Lb(Ti), Q41F-600Lb(Ti), Q341F-150Lb(Ti), Q341F-300Lb(Ti), Q341F-600Lb(Ti), Q341F-150Lb(A), Q341F-300Lb(A), Q341F-600Lb(A)
Design Standards	GB/T12237, API6D, ASME B16.34
Face-to-Face Dimensions	GB/T12221, API6D, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API6D, API598

Installation and Maintenance

Ensure Proper Alignment: Correct port alignment during installation prevents leaks and ensures efficient flow control
Use Compatible Seals: Select seals compatible with fluids and operational environment
Regular Inspection: Periodic checks for wear or damage maintain optimal performance and extend valve lifespan
Cleanliness: Regular cleaning maintains hygiene standards in pharmaceutical and food processing applications

Common Applications

Titanium ball valves are widely used across industries due to excellent corrosion resistance, high strength, and low density:

Chemical Industry: Handling strong acids, alkalis, and corrosive chemicals in reactors, storage tanks, and piping systems
Oil and Gas Industry: Offshore platforms and onshore facilities resisting seawater and hydrogen sulfide corrosion in pipelines and refineries
Pharmaceutical and Food Industry: Meeting hygiene standards in purified water systems, reactors, and mixing vessels
Marine Engineering: Seawater corrosion resistance in marine structures, desalination equipment, and subsea pipelines
Power Industry: Handling high-temperature, high-pressure steam and corrosive cooling water in nuclear and thermal power plants
