Titanium Electric V-Port Ball Valves Gr1 Gr2 8 Inch Ball Valve Class 150 DN 15-250 for Water Supply

Product Details

Place of Origin: Baoji, China

Brand Name: LHTi

Certification: ISO9001,CE,etc

Model Number: Titanium Ball Valve V-Port

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: negotiable

Packaging Details: Plywood case or pallet, or as per your requirement

Delivery Time: about 5-14 days for delivery

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Pieces Per Month

Get Best Price
Highlight:
Design Standard:
API 6D, API 608, ASME B16.34
Model:
Ball Valve
Seat Type:
Soft Seat, Metal Seat
Body Type:
Floating, Trunnion
Operation:
Manual, Gear, Pneumatic, Electric
Material:
Titanium
Operation Method:
Lever, Gear, Actuator
Ball Type:
Full Port, Reduced Port
Design Standard:
API 6D, API 608, ASME B16.34
Model:
Ball Valve
Seat Type:
Soft Seat, Metal Seat
Body Type:
Floating, Trunnion
Operation:
Manual, Gear, Pneumatic, Electric
Material:
Titanium
Operation Method:
Lever, Gear, Actuator
Ball Type:
Full Port, Reduced Port
Titanium Electric V-Port Ball Valves Gr1 Gr2 8 Inch Ball Valve Class 150 DN 15-250 for Water Supply

Titanium Electric V-Port Ball Valves TA1 TA2 8 Inch Ball Valve Class 150 DN 15-250 for Water Supply



Product Description:

A titanium V-port ball valve is a specialized type of control valve that features a V-shaped port through which fluids can pass. This design allows for more precise flow control compared to traditional ball valves. The use of titanium in the construction of these valves offers exceptional corrosion resistance, making them suitable for demanding industrial applications.

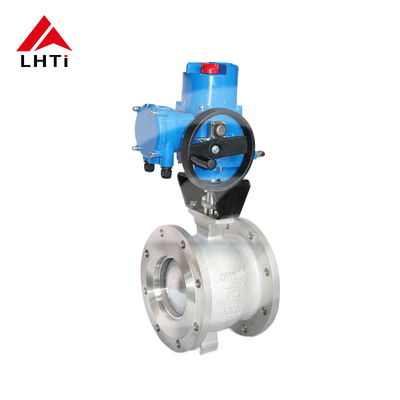

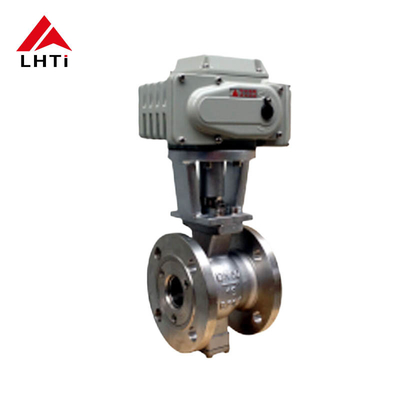

Titanium Electric V-Port Ball Valves Gr1 Gr2 8 Inch Ball Valve Class 150 DN 15-250 for Water Supply 0Titanium Electric V-Port Ball Valves Gr1 Gr2 8 Inch Ball Valve Class 150 DN 15-250 for Water Supply 1





Product Technical Specifications:

Product Technical Specifications:
Pressure Rating: PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter: DN25-DN350   1"-14"
Drive Mode: Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet: TA1,TA2,TA10,Gr2,Gr3
Ball: TA1,TA2,TA10,Gr2,Gr3
Stem: TA1,TA2,TA10,TC4,Gr2,Gr3,Gr5
Sealing Ring: PTFE,RPTFE,PPL,PEEK
Titanium Ball Valve Model: VQ647Y-16Ti,VQ647Y-25Ti,VQ647Y-40Ti,VQ647Y-150Lb(Ti),VQ647Y-300Lb(Ti),,VQ647Y-16A, VQ647Y-25A,VQ647Y-40A,VQ647Y-150Lb(A),VQ647Y-300Lb(A),VQ947Y-16Ti,VQ947Y-25Ti,VQ947Y -40Ti,VQ947Y-150Lb(Ti),VQ947Y-300Lb(Ti),VQ947Y-16A,VQ947Y-25A,VQ947Y-40A,VQ947Y- 150Lb(A),VQ947Y-300Lb(A)
Design Standards: GB/T12237,ASME B16.34
Face-to-Face Dimensions: GB/T12221,API6D,ASME B16.10
Flange Connections: HG,GB,JB,API,ANSI,ISO,BS,DIN,NF,JIS
Testing Standards: JB/T9092,GB/T13927,API6D,API598







Main Features and Advantages of Titanium V-Port Ball Valves:

V-Port Design: The V-shaped port enables precise flow control, providing linear and stable modulation for applications requiring accurate throttling.



Corrosion Resistance: Made from titanium, these valves offer exceptional resistance to corrosion from a wide range of chemicals, seawater, and harsh environments, ensuring durability and longevity.



High Strength-to-Weight Ratio: Titanium's high strength combined with its lightweight nature makes the valve robust and easier to handle and install compared to valves made from heavier materials.



Temperature Tolerance: These valves can withstand extreme temperatures, making them suitable for both high-temperature and low-temperature applications.



Durability: The inherent robustness of titanium ensures a long service life, reducing the frequency of maintenance and replacements.



Biocompatibility: Titanium's biocompatible properties make these valves ideal for use in industries such as pharmaceuticals and biotechnology, where contact with biological materials is common.



Reduced Maintenance: Due to their high corrosion resistance and durability, titanium V-port ball valves require less frequent maintenance, leading to lower operational costs and downtime.



Smooth Operation: The precision engineering of the V-port design ensures smooth and efficient operation, enhancing overall process control and reliability.



Versatility: Suitable for a wide range of applications across different industries, including chemical processing, oil and gas, power generation, and more.



Enhanced Safety: Titanium’s resistance to corrosion and high temperatures improves operational safety, particularly in critical and hazardous environments.







Calculate the Valve Size:

1. Determine the Cv Value

The Cv (Flow Coefficient) is a critical parameter that indicates the flow capacity of the valve. It is calculated using formulas specific to the flow characteristics of the fluid and the desired operating conditions. Typically, this involves using standard equations or software tools designed for flow control sizing.

2. Cavitation and Fluid Characteristics

  • Cavitation Check: Ensure that the selected valve can handle the pressure drop without causing cavitation. This involves checking the FL value (Liquid Pressure Recovery Factor) to avoid cavitation issues.

  • Expansion Factor: For compressible fluids, determine the Pressure Drop Ratio Factor to account for changes in fluid density across the valve.

3. Select Nominal Valve Size

Once you have the Cv value calculated:

  • V-Port Ball Valves: Choose a valve that provides the required Cv for flow rates between 20% to 80% of the port opening.

  • Round Port Ball Valves: Select a valve that supports Cv calculations for flow rates between 30% to 80% of the port opening.

Refer to Cv charts provided by valve manufacturers to select the appropriate nominal valve size based on your calculated Cv.

4. Valve Type and Materials

  • Valve Type: Determine whether a flanged, threaded, or welded valve connection is suitable for your application and piping system design.

  • Materials of Construction: Given your requirement for handling acetic acid, choose materials like titanium or stainless steel that offer corrosion resistance. Ensure compatibility with the fluid and environmental conditions.

  • Valve Seats: For V-Ball Control Valve applications, consider RTFE (Reinforced Teflon) valve seats, which offer good chemical resistance and sealing capabilities.

5. Actuator Selection

  • Select the Actuator: Choose an actuator based on the valve type (electric, pneumatic, hydraulic) and the operational requirements of your system. Factors to consider include torque or thrust requirements, control mechanism (on-off or modulating), and compatibility with automation systems if required.





Applications of Titanium Ball Valves:

Titanium ball valves have a wide range of applications in various industrial fields, mainly including the following aspects:



Chemical Industry: Due to the excellent corrosion resistance of titanium materials, titanium ball valves are commonly used in chemical production processes that involve handling corrosive media, such as acid and alkali solutions, and oxides.



Petroleum and Natural Gas Industry: Titanium ball valves play a crucial role in the extraction, transportation, and processing of petroleum and natural gas. They are used to control the flow and pressure of fluids, ensuring the safe and stable operation of the system.



Marine Engineering: Titanium ball valves have good seawater corrosion resistance, making them widely used in marine engineering applications, such as fluid control systems in subsea pipelines and offshore platforms.



Aerospace Field: Titanium ball valves are extensively used in aerospace hydraulic systems, fuel systems, etc., due to their lightweight and high-strength characteristics that meet the requirements of aircraft.



Food and Pharmaceutical Industries: Since titanium materials are non-toxic and do not contaminate food or medicine, titanium ball valves are often used in fluid control systems in food processing and pharmaceutical industries.
