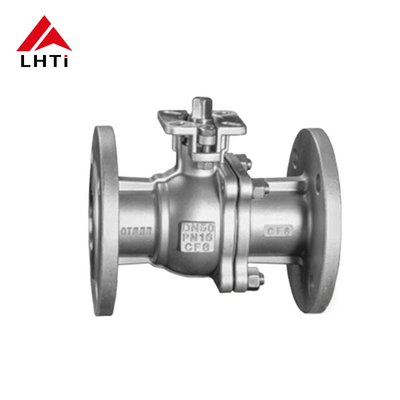

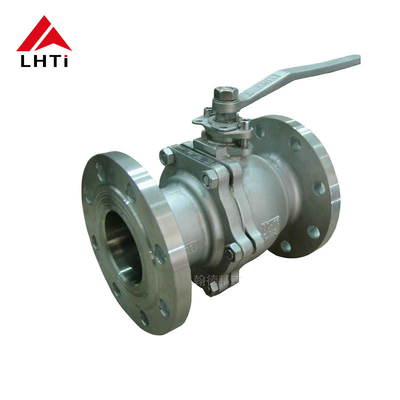

ASME Titanium Ball Valves Gr1 Gr2 PN1.6-4.0 MPA NPS 1/2''-12'' Industrial Ball Valves

Brand Name:	LHTi
Model Number:	Titanium Ball Valve Gr1 Gr2
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Design Standard:

API 6D, ASME B16.34

Size:

NPT 1/2-10

Seat Material:

PTFE, RPTFE, PEEK

Temperature Rating:

-196°C - 600°C

Material:

Titanium Gr1 Gr2

Pressure Rating:

Class 150 - Class 1500

Actuator Type:

Manual, Pneumatic, Electric

Application:

Chemical, Petrochemical, Power Plant, Etc.

Model:

Titanium Ball Valve

Operation:

Manual, Gear, Actuator

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

ASME Titanium Ball Valves

PN1.6-4.0 MPA Titanium Ball Valves

Industrial Titanium Ball Valves

Product Description

ASME Titanium Ball Valves Gr1 Gr2 PN1.6-4.0 MPA NPS 1/2''-12'' Industrial Ball Valves

Premium Industrial Ball Valves

Our specialized material ball valves include two-way, three-way, and four-way configurations available in both soft-seal and hard-seal designs with floating and trunnion-mounted options. Manufactured from high-performance materials including titanium, nickel, zirconium, Hastelloy, Monel, Inconel, duplex stainless steel, 904L, Alloy 20, and C4 steel, these valves deliver exceptional corrosion resistance, mechanical strength, and reliability across demanding industrial applications.

Technical Specifications

Pressure Rating	PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter	DN15-DN300 1/2"-12"
Drive Mode	Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
Valve Models	Q44F-16Ti, Q44F-25Ti, Q44F-40Ti, Q45F-16Ti, Q45F-25Ti, Q45F-40Ti, Q344F-16Ti, Q344F-25Ti, Q344F-40Ti, Q345F-16Ti, Q345F-25Ti, Q345F-40Ti, Q644F-16Ti, Q64F-25Ti, Q644F-40Ti, Q645F-16Ti, Q645F-25Ti, Q645F-40Ti, Q944F-16Ti, Q944F-25Ti, Q944F-40Ti, Q945F-16Ti, Q945F-25Ti, Q945F-40Ti, Q44F-150LB(Ti), Q44F-300LB(Ti), Q345F-150LB(Ti), Q645F-150LB(Ti), Q945F-150LB(Ti)
Design Standards	GB/T12237, ASME B16.34
Face-to-Face Dimensions	GB/T12221, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API598

Design Features

Excellent Corrosion Resistance: Titanium ball valves maintain stable operation in environments with strong acids, strong alkalis, and other corrosive media, extending system service life.
Superior Mechanical Properties: High strength and hardness enable titanium ball valves to withstand higher pressures and temperatures across various operating conditions.
Lightweight and High Strength: Lower density compared to other metals makes installation and maintenance easier while providing broad working pressure range capabilities.
Excellent Sealing Performance: Advanced sealing structures effectively prevent medium leakage, ensuring system safety and reliability with minimal contact area between ball and sealing ring.
Flexible Operation: Rotating ball mechanism enables quick opening and closing with minimal operating force, ensuring smooth and vibration-free valve operation.
Wide Applicability: Suitable for various conditions and media including chemical, petroleum, pharmaceutical, and marine engineering applications.

Industrial Applications

Chemical Industry

Due to excellent corrosion resistance, titanium ball valves are commonly used in chemical production processes involving corrosive media such as acid and alkali solutions, and oxides.

Petroleum and Natural Gas Industry

Titanium ball valves play a crucial role in extraction, transportation, and processing operations, controlling fluid flow and pressure to ensure safe and stable system operation.

Marine Engineering

With excellent seawater corrosion resistance, titanium ball valves are widely used in marine applications including subsea pipelines and offshore platform fluid control systems.

Aerospace Field

Titanium ball valves are extensively used in aerospace hydraulic and fuel systems, meeting aircraft requirements with their lightweight and high-strength characteristics.

Food and Pharmaceutical Industries

Since titanium materials are non-toxic and non-contaminating, titanium ball valves are ideal for fluid control systems in food processing and pharmaceutical applications.
