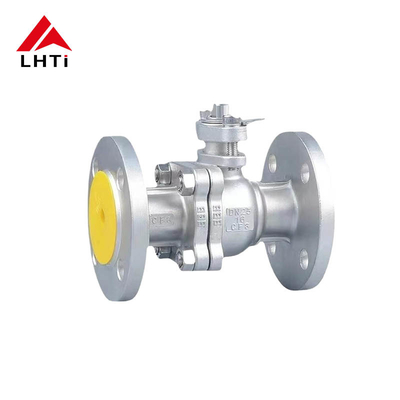

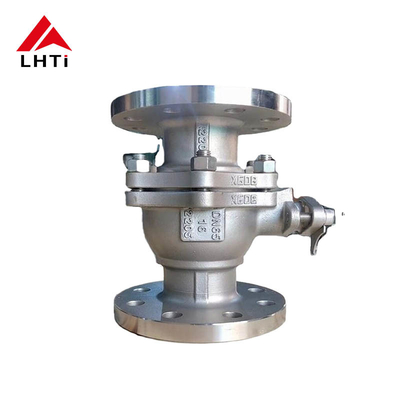

6 Inch Ball Valve ASME Standard Flanged Ball Valves Titanium Ball Valves Ti TA2 DN 15-DN200

Name: 6 Inch Ball Valve ASME Standard Flanged Ball Valves Titanium Ball Valves Ti TA2 DN 15-DN200
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball Valve
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Design Standard:

API 6D, ASME B16.34

Port Type:

Full Port, Reduced Port

Model:

Titanium Ball Valve

Operation Method:

Lever, Gear, Actuator

Body Type:

One-piece, Two-piece, Three-piece

Temperature Range:

-196°C To 600°C

Operation:

Manual, Gear, Electric, Pneumatic

Pressure Rating:

Class 150 - Class 1500

Size:

1/2 Inch - 10 Inch

Actuator Type:

Manual, Pneumatic, Electric

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

ASME Standard Titanium Ball Valves

DN 15-DN200 Titanium Ball Valves

Flanged Titanium Ball Valves

Product Description

6 Inch Ball Valve ASME Standard Flanged Ball Valves Titanium Ball Valves Ti TA2 DN 15-DN200

Special material ball valves encompass various types, including two-way, three-way, and four-way configurations. Available in both soft-seal and hard-seal designs with floating and trunnion-mounted options. These valves utilize high-performance materials such as titanium, nickel, zirconium, Hastelloy, Monel, Inconel, duplex stainless steel, 904L, Alloy 20, and C4 steel for exceptional performance in challenging environments.

Product Specifications

SIZE	d	L	T	F	N	M	G	C	D	H	H1	H2	S	W	D1	M1	Torque	WT
1/2"	0.59	4.25	0.38	0.06	4	0.63	1.38	2.38	3.50	3.39	2.25	0.93	0.44	6.65	1.65	M5	34	3.7
3/4"	0.79	4.61	0.38	0.06	4	0.63	1.69	2.76	3.90	3.50	2.36	0.93	0.44	6.65	1.65	M5	49	4.6
1"	0.98	5.00	0.38	0.06	4	0.63	2.01	3.11	4.25	4.06	2.89	1.14	0.50	8.09	1.97	M6	58	6.4
1-1/4"	1.26	5.51	0.44	0.06	4	0.63	2.50	3.50	4.61	4.06	3.09	1.14	0.50	8.09	1.97	M6	80	8.6
1-1/2"	1.50	6.50	0.50	0.06	4	0.63	2.88	3.88	5.00	5.12	4.05	1.55	0.75	10.51	2.76	M8	222	12.6
2"	1.97	7.01	0.57	0.06	4	0.75	3.62	4.75	5.98	5.31	4.35	1.55	0.75	10.51	2.76	M8	337	18.5
2-1/2"	2.56	7.48	0.63	0.06	4	0.75	4.12	5.47	7.01	5.79	4.80	1.52	0.75	11.38	2.76	M8	399	29.3
3"	3.15	7.99	0.69	0.06	4	0.75	5.00	5.98	7.48	6.54	5.59	1.69	0.75	15.35	4.02	M10	540	36.2
4"	3.94	9.00	0.88	0.06	8	0.75	6.19	7.50	8.98	7.13	6.18	1.69	0.75	15.35	4.02	M10	709	61.1
6"	5.91	15.51	1.00	0.06	8	0.87	8.50	9.51	10.98	10.10	8.66	1.97	1.06	29.25	4.92	M12	1682	119.0
8"	7.87	17.99	1.13	0.06	8	0.89	10.63	11.75	13.50	13.15	11.83	3.37	1.42	33.07	5.51	M16	4160	194.0
10"	9.84	20.98	1.19	0.06	12	1.00	12.76	14.25	15.98	14.88	13.17	2.93	1.42	40.94	5.51	M16	6638	359.4

Ball Valve Material Options

Special material ball valves are manufactured using various high-performance materials to meet specific media and operating condition requirements.

Titanium - High corrosion resistance and lightweight, suitable for marine engineering and chemical industry
Nickel - Good oxidation and corrosion resistance, suitable for high-temperature and highly corrosive environments
Zirconium - Excellent corrosion resistance, suitable for high-temperature acidic media
Hastelloy - High strength and corrosion resistance, suitable for demanding chemical processing environments
Monel - Good corrosion resistance and mechanical properties, suitable for seawater and chemical media
Inconel - High-temperature alloy with excellent high-temperature strength and oxidation resistance
Duplex Stainless Steel - Combines advantages of austenitic and ferritic stainless steel, with high strength and corrosion resistance
904L - Ultra-low carbon austenitic stainless steel with excellent corrosion resistance, especially in strong acidic environments
Alloy 20 - Designed to resist sulfuric acid corrosion, suitable for chemical and pharmaceutical industries
Alloy C-4 - Excellent corrosion resistance and strength, suitable for extreme corrosive environments

Titanium Ball Valve Features

Floating Ball Design

The ball is floating and under medium pressure can produce displacement to press tightly against the sealing surface, ensuring reliable outlet end sealing. Utilizes titanium's excellent stability and self-passivation capability in corrosive environments.

Low Flow Resistance

Ball valves have relatively low fluid resistance among all valve types, even for reduced bore ball valves.

Excellent Sealing Performance

American Standard titanium ball valves feature excellent sealing performance. The valve seat (sealing ring) is typically made of elastic materials like PTFE, ensuring easy sealing with increasing sealing force as medium pressure rises.

Reliable Stem Sealing

The stem rotates only 90° during operation, preventing damage to packing seals. The reverse seal of the stem increases sealing force with medium pressure.

Titanium Ball Valve Applications

Chemical Industry

Excellent corrosion resistance makes titanium ball valves ideal for handling corrosive media including acid and alkali solutions and oxides in chemical production processes.

Petroleum and Natural Gas Industry

Crucial role in extraction, transportation, and processing operations for controlling fluid flow and pressure, ensuring safe and stable system operation.

Marine Engineering

Excellent seawater corrosion resistance makes them widely used in marine engineering applications including subsea pipelines and offshore platform fluid control systems.

Aerospace Field

Extensively used in aerospace hydraulic and fuel systems due to lightweight and high-strength characteristics that meet aircraft requirements.

Food and Pharmaceutical Industries

Non-toxic titanium materials prevent contamination, making these valves suitable for fluid control systems in food processing and pharmaceutical applications.
