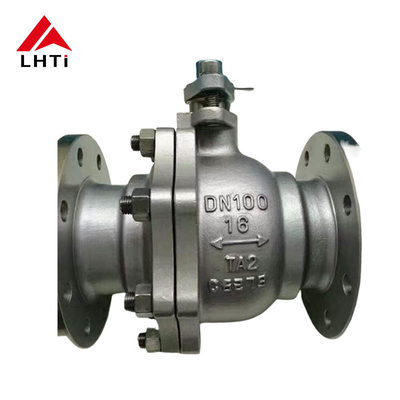

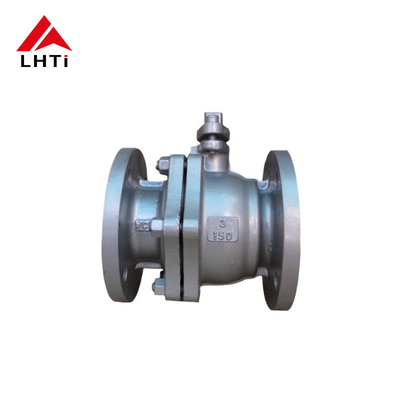

Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve

Brand Name:	LHTi
Model Number:	Titanium Ball Valves ASME B16.34
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Pressure Rating:

Class 150 - Class 600

Material:

Titanium Alloy

Operation Method:

Lever, Gear, Actuator

Size:

1/2

End Connections:

Flanged, Butt Weld, Socket Weld, Threaded

Actuator Type:

Manual, Pneumatic, Electric

Temperature Rating:

-196°C - 600°C

Seat Material:

PTFE, RPTFE, PEEK, PCTFE, Nylon, Metal

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

6 Inch Titanium Ball Valve

Flange Titanium Ball Valve

ASME B16.34 Titanium Ball Valve

Product Description

Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve

Gr 2 ASME B16.34 Titanium Ball Valve

Flange forged titanium ball corrosion resistant 6 inch ball valve designed for demanding industrial applications.

Product Overview

Titanium ball valves are precision devices used for diverting, mixing, or switching flow direction in corrosive environments. The top-mounted structure design reduces connecting bolts in high-pressure, large-diameter applications, enhancing valve reliability and overcoming system weight impacts on normal operation.

Key Features

Floating Ball Design: Under medium pressure, the ball displaces to press tightly against the outlet sealing surface, ensuring reliable sealing
Excellent Corrosion Resistance: Utilizes titanium's stable oxide film and self-passivation capability to withstand harsh corrosive environments
Low Flow Resistance: Minimal fluid resistance even in reduced bore configurations
Superior Sealing Performance: PTFE sealing rings provide excellent sealing that improves with medium pressure
Reliable Stem Sealing: 90° rotation operation prevents packing seal damage with pressure-enhanced reverse sealing

Technical Specifications

Pressure Rating	Class 150-600Lb
Nominal Diameter	1/2" - 10"
Drive Mode	Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
American Standard Models	Q41F-150Lb(Ti), Q41F-300Lb(Ti), Q41F-600Lb(Ti), Q341F-150Lb(Ti), Q341F-300Lb(Ti), Q341F-600Lb(Ti), Q341F-150Lb(A), Q341F-300Lb(A), Q341F-600Lb(A)
Design Standards	GB/T12237, API6D, ASME B16.34
Face-to-Face Dimensions	GB/T12221, API6D, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API6D, API598

Titanium Material Grades

TA1 (Gr1): Pure titanium with excellent ductility and toughness, easy forming and welding
TA2 (Gr2): Pure titanium with balanced corrosion resistance and moderate strength, easy forming and welding
TA9 (Gr7): Titanium with 0.12-0.25% palladium for enhanced corrosion resistance in reducing environments
TA10 (Gr12): Titanium alloy with molybdenum and nickel for improved strength and heat resistance
TC4 (Gr5): Titanium alloy with 6% aluminum and 4% vanadium for high strength, hardness, and corrosion resistance

Industrial Applications

Chemical Industry: Handling corrosive media including acid, alkali solutions, and oxides
Petroleum and Natural Gas: Flow and pressure control in extraction, transportation, and processing systems
Marine Engineering: Seawater corrosion-resistant applications in subsea pipelines and offshore platforms
Aerospace: Hydraulic and fuel systems requiring lightweight, high-strength components
Food and Pharmaceutical: Non-toxic, contamination-free fluid control in processing systems
