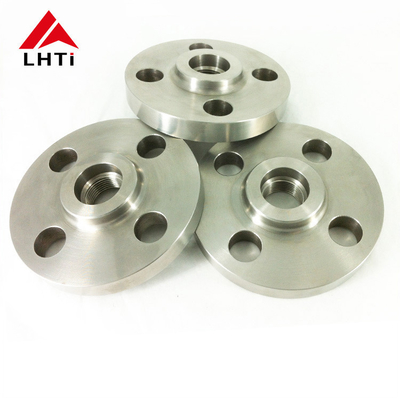

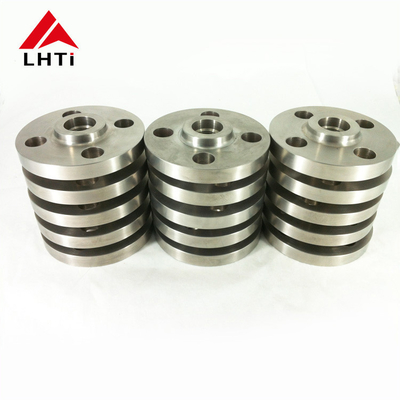

SORF Flange ANSI B16.5 Ti Gr2 Gr5 Gr7 Class 150LBS Titanium Slip On Flange Raised Face for Oil and Gas Industry

2. ASME B16.5 Titanium Slip On Flange Grades

Titanium Grade 2 (Ti-CP):

Composition: Commercially pure titanium with a composition of 99.2% titanium, 0.25% iron, 0.3% oxygen, and trace amounts of other elements.

Properties:

Strength: Relatively low compared to alloys; higher than many steels but lower than alloyed titanium grades.

Corrosion Resistance: Excellent in most environments, especially against chlorides.

Weldability: Good weldability and fabricability.

Applications: Chemical processing, marine environments, medical implants (non-load-bearing), and architecture.

Titanium Grade 5 (Ti-6Al-4V):

Composition: Titanium alloy containing 90% titanium, 6% aluminum, and 4% vanadium.

Properties:

Strength: Excellent strength-to-weight ratio, superior to Grade 2 titanium.

Corrosion Resistance: Good corrosion resistance, not as high as Grade 2 but suitable for many environments.

Temperature Resistance: Maintains strength at elevated temperatures, making it suitable for aerospace and high-performance applications.

Applications: Aerospace components (airframes, jet engines), marine equipment, medical implants, automotive components, and sports equipment.

Titanium Grade 7 (Ti-0.15Pd):

Composition: Titanium alloy with 0.15% palladium added.

Properties:

Corrosion Resistance: Excellent resistance to corrosion, particularly in reducing environments.

Weldability: Good weldability, suitable for welding and fabrication.

Strength: Lower strength compared to Grade 5 but adequate for many applications.

Applications: Chemical processing, desalination plants, marine environments, and other applications requiring superior corrosion resistance.

3. Specifications for ASME B16.5 Class 150 Titanium Slip On Flange

4. Advantages of Titanium Slip On Flanges in the Industry

• Corrosion Resistance: Excellent resistance to corrosion in various aggressive environments.
• Strength-to-Weight Ratio: Provides strength and durability while remaining lightweight.
• High Temperature Resistance: Maintains mechanical properties at elevated temperatures.
• Biocompatibility: Non-toxic and biocompatible, suitable for medical and food processing applications.
• Longevity: Durable and long-lasting performance, reducing maintenance and replacement costs.

5. Applications of ANSI B16.5 Titanium Slip On Flange

• Pipeline Construction: Used to join sections of pipelines, ensuring secure and leak-free connections during fluid transport.
• Refineries and Petrochemical Plants: Installed in processing units for connecting vessels, reactors, and heat exchangers, where resistance to corrosive chemicals is essential.
• Offshore Platforms: Employed in offshore drilling rigs and production platforms to withstand marine environments and harsh weather conditions.
• Gas Processing Facilities: Utilized in compressors, pumps, and valves to maintain operational integrity and safety.

6. The Production Porcess of Titanium Slip On Flanges

Material Selection:

Titanium Alloy: The process begins with selecting the appropriate titanium alloy based on the application requirements. Common alloys used include Grade 2 (commercially pure titanium), Grade 5 (Ti-6Al-4V), and Grade 7 (Ti-0.15Pd) depending on factors such as strength, corrosion resistance, and temperature requirements.

Cutting and Forming:

Raw Material Preparation: Titanium billets or bars are cut into appropriate lengths based on the required flange dimensions.

Forging or Rolling: The titanium material is heated to a suitable forging temperature and then shaped using forging or rolling techniques to achieve the desired shape and size of the slip-on flange blank.

Machining:

Turning and Milling: The forged or rolled titanium blanks undergo machining operations. This includes turning to create the outer diameter (OD) and facing the flange ends to achieve the required surface finish (e.g., raised face, flat face, ring type joint).

Drilling: Holes are drilled for bolt and pipe alignment according to ASME B16.5 or customer specifications.

Welding Preparation:

Beveling: The flange ends are beveled to prepare for welding. This step ensures proper weld penetration and strength during assembly.

Welding:

Welding Process: Titanium slip-on flanges are typically welded using TIG (Tungsten Inert Gas) welding or other suitable methods. Care is taken to maintain an inert atmosphere (usually argon) to prevent contamination and ensure strong, corrosion-resistant welds.

Weld Inspection: Welds undergo non-destructive testing (NDT) methods such as dye penetrant inspection or ultrasonic testing to verify weld integrity and detect any defects.

Heat Treatment (if required):

Depending on the titanium alloy and specific requirements, heat treatment may be performed to relieve stress or enhance material properties. This step ensures the flange maintains its mechanical properties and dimensional stability.

Final Inspection and Testing:

Dimensional Inspection: Each flange undergoes dimensional checks to ensure it meets the specified tolerances and dimensions as per ASME B16.5 or customer requirements.

Visual and Surface Inspection: The flange surfaces are visually inspected for any imperfections or defects that could affect performance.

Pressure Testing: Hydrostatic or pneumatic pressure testing may be conducted to verify the flange’s leak-tightness and pressure resistance.

Surface Treatment and Finishing:

Surface Coating: Depending on the application, surface treatments such as passivation or anodizing may be applied to enhance corrosion resistance or improve aesthetics.

Marking and Identification: Each flange is marked with essential information such as material grade, size, pressure class, and manufacturer identification.

Packaging and Shipping:

Once all inspections and tests are completed satisfactorily, the titanium slip-on flanges are packaged securely to prevent damage during transport and storage. They are then shipped to the customer or to distribution centers.

7. Test Certificates of Titanium Flanges

EN 10204/3.1B Certificate:

This is a standard certificate that confirms compliance with the material specification and provides chemical composition and mechanical properties of the titanium alloy used in manufacturing the flanges. It is issued by the manufacturer and verifies that the material meets the required standards.

Raw Materials Certificate:

This certificate provides details about the raw materials used in the production of the titanium flanges. It includes information such as the origin of the raw materials, their composition, and any applicable material testing results. This ensures traceability and quality control from the initial material procurement stage.

100% Ultrasonic Flaw Detection:

Ultrasonic testing (UT) is a non-destructive testing method used to detect internal and surface defects in the titanium flanges. A 100% UT coverage means that all flanges undergo thorough testing to ensure there are no defects that could compromise their structural integrity or performance.

Hydrostatic Test:

This test involves pressurizing the titanium flange with water or another liquid to a predetermined pressure level. It assesses the flange's ability to withstand pressure without leakage or deformation, ensuring it meets the specified pressure ratings and safety requirements.

Third Party Inspection Report:

This report is conducted by an independent third-party inspection agency or authority. It provides an unbiased assessment of the titanium flanges' quality, confirming compliance with applicable standards, specifications, and customer requirements. It adds credibility to the manufacturer's quality assurance processes.
