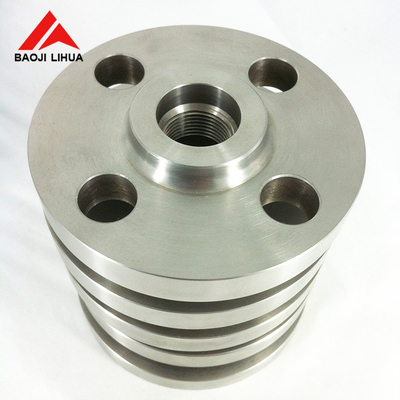

Titanium Slip On Flange SO Flange ASME B16.5 Gr2 Gr5 Gr7 Class 150 SO RF FF Raised Face for Pipeline Industry

2. Grades of ASME B16.5 Titanium Slip On Flange

ASME B16.5 titanium slip-on flanges are typically available in various grades of titanium and titanium alloys. The choice of grade depends on the specific application requirements, including corrosion resistance, mechanical properties, and cost considerations.

1. Commercially Pure Titanium:

   • Grade 2 (UNS R50400): This is the most widely used grade of titanium due to its excellent corrosion resistance, formability, and weldability. It is suitable for a wide range of industrial applications where moderate strength and good corrosion resistance are required.

2. Titanium Alloys:

   • Grade 5 (Ti-6Al-4V, UNS R56400): This is the most commonly used titanium alloy, known for its high strength, lightweight properties, and excellent corrosion resistance. It is used in aerospace, marine, and chemical processing industries.
   • Grade 7 (UNS R52400): Known for its excellent weldability and corrosion resistance in reducing and mildly oxidizing environments, Grade 7 titanium is often used in chemical processing equipment.
   • Grade 12 (UNS R53400): This titanium alloy offers excellent corrosion resistance in highly oxidizing environments and is well-suited for chemical processing and marine applications.
   • Grade 23 (Ti-6Al-4V ELI, UNS R56401): Similar to Grade 5, but with extra low interstitial (ELI) content, Grade 23 titanium alloy is used in medical and aerospace applications where biocompatibility and high strength are required.

3. Temperature Specifications for ASME B16.5 Titanium Slip On Flange

4. Titanium Slip On Flange Inspections

Visual Testing (VT): This involves inspecting the surface of the weld and the flange visually to detect any visible defects such as cracks, porosity, or improper weld profiles.

Ultrasonic Testing (UT): This technique uses high-frequency sound waves to detect internal defects within the material, such as voids, inclusions, or cracks. It's particularly useful for thicker sections of titanium welds.

Radiographic Testing (RT): This method uses X-rays or gamma rays to produce images of the internal structure of the weld and flange. It's effective for detecting internal defects and assessing weld quality.

Magnetic Particle Testing (MT): MT is used to detect surface and near-surface defects in ferromagnetic materials. However, since titanium is not ferromagnetic, this method might not be applicable unless there are magnetic materials nearby or coatings that can be magnetized.

Penetrant Testing/Dye Penetrant (PT): PT involves applying a dye penetrant to the surface of the weld and then removing excess dye to reveal surface-breaking defects. This method is useful for detecting small cracks, porosity, and leaks.

Eddy Current Testing (ET): ET uses electromagnetic induction to detect surface and near-surface defects in conductive materials like titanium. It's useful for detecting corrosion, cracks, and variations in material properties.

Acoustic Emission (AE): AE involves monitoring the acoustic emissions from a material under stress to detect changes indicative of defects like cracks or leaks. It can be used for both weld and base material inspection.

5. Applications of ANSI B16.5 Titanium Slip On Flange

• Pipeline Construction: Used to join sections of pipelines, ensuring secure and leak-free connections during fluid transport.
• Refineries and Petrochemical Plants: Installed in processing units for connecting vessels, reactors, and heat exchangers, where resistance to corrosive chemicals is essential.
• Offshore Platforms: Employed in offshore drilling rigs and production platforms to withstand marine environments and harsh weather conditions.
• Gas Processing Facilities: Utilized in compressors, pumps, and valves to maintain operational integrity and safety.
