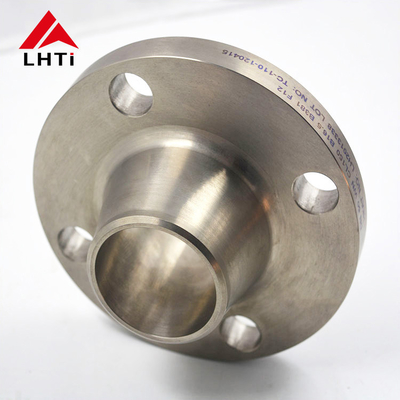

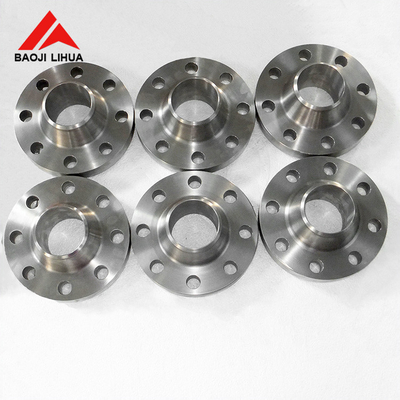

WNRF Titanium Weld Neck Flange DIN 2633 Grade 5 Grade 7 PN 16 Flange WN RF In Piping Systems

Weld neck flanges are chosen for applications precisely because they excel under severe and critical conditions:

Weld neck flanges provide a strong, reinforced connection between pipes or fittings, capable of withstanding high internal pressures without leaking. The welding neck design reduces stress concentration at the joint, which is crucial under high pressure conditions.

In industries such as oil and gas, chemical processing, and power generation, where temperature and pressure can fluctuate widely, weld neck flanges offer stability and reliability. They maintain a secure seal over a broad range of operational conditions.Weld neck flanges are often made from materials like stainless steel or titanium, which can withstand elevated temperatures without losing their mechanical properties. This makes them suitable for applications involving hot fluids or gases.

The robust construction of weld neck flanges ensures they can handle hazardous and corrosive fluids safely. They provide a secure connection that minimizes the risk of leaks or material degradation, crucial for industries dealing with volatile substances.Some applications, such as in cryogenic processes or Arctic environments, require components that remain reliable at extremely low temperatures. Weld neck flanges, when made from appropriate materials and with suitable design considerations, can maintain their integrity even in sub-zero conditions.

2. Grade 5 and Grade 7 of DIN 2633 Titanium Weld Neck Flange

Titanium Grade 5 and Grade 7 are two popular titanium alloys, each with specific characteristics and applications:

Titanium Grade 5 (Ti-6Al-4V):

Composition: Titanium Grade 5 is an alpha-beta alloy consisting of 90% titanium, 6% aluminum, and 4% vanadium. This composition provides a balance of properties that make it the most widely used titanium alloy.

Strength: It offers excellent strength-to-weight ratio, making it suitable for aerospace, marine, and industrial applications where lightweight strength is critical.

Corrosion Resistance: Grade 5 titanium has good corrosion resistance, although not as high as pure titanium (Grade 1). It is still highly resistant to most environments.

Temperature Resistance: It maintains its properties at elevated temperatures, making it suitable for applications in gas turbines, exhaust systems, and other high-temperature environments.

Applications: Aerospace components (airframes, jet engines), marine equipment, medical implants, automotive components, sports equipment, and industrial machinery.

Titanium Grade 7 (Ti-0.15Pd):

Composition: Titanium Grade 7 is a titanium alloy with 0.15% palladium added, enhancing its corrosion resistance.

Corrosion Resistance: Grade 7 titanium is highly resistant to corrosion in reducing and mildly oxidizing environments, including chlorides. It is more corrosion resistant than Grade 2 titanium.

Weldability: It offers good weldability, making it suitable for applications requiring fabrication and assembly.

Strength: Grade 7 titanium has lower strength compared to Grade 5 but is still adequate for many applications.

Applications: Chemical processing, desalination, marine environments, and other applications where superior corrosion resistance is required. It is also used in medical implants where biocompatibility and corrosion resistance are critical.

3. Specifications for DIN2633 PN16 Titanium Weld Neck Flange

4. Advantages of Titanium Weld Neck Flanges

• Exceptional Durability: Titanium is renowned for its superior resistance to corrosion compared to most other metals. This makes it ideal for harsh environments, such as those found in marine, chemical processing, and offshore industries.
• Resistance to Pitting and Crevice Corrosion: Especially critical in applications involving seawater or corrosive chemicals, where other materials might fail.
• High Strength-to-Weight Ratio: Titanium flanges are lighter than those made from stainless steel or carbon steel, which is a significant advantage in aerospace and automotive industries where reducing weight is crucial.
• Maintains Integrity Under Stress: The inherent strength of titanium allows these flanges to withstand high stress and pressure without compromising their structural integrity.
• Stability in Extreme Temperatures: Unlike many other metals, titanium maintains its strength and does not become brittle at low temperatures or lose strength at high temperatures, making it suitable for a wide range of operating conditions.
• Long Service Life: Due to their robustness and corrosion resistance, titanium flanges can last significantly longer than other flanges, reducing the need for frequent replacements.
• Lower Lifecycle Costs: Although the initial cost is higher, the longevity and reduced maintenance requirements can make titanium flanges more cost-effective over time.
• Reliable Welding Performance: Titanium weld neck flanges are designed for direct welding to the piping system, providing a strong, seamless connection that enhances the overall strength and leak resistance of the system.
• Reduced Risk of Leaks: The weld neck design creates a strong bond with the pipe, which is crucial in high-pressure applications to prevent leaks and ensure safety.
• Withstand Harsh Environments: Besides corrosion, titanium is also resistant to damage from a variety of environmental factors including UV radiation, biological fouling, and chemical exposure.
• Wide Range of Applications: These flanges are used in industries as diverse as chemical processing, aerospace, military, marine, petrochemical, and power generation due to their superior properties.

5. Applications of DIN 2633 Titanium Weld Neck Flange

The application of titanium flanges in the aviation sector is crucial for several reasons:

Weight Reduction: Titanium alloys used in flanges offer excellent strength-to-weight ratios, making them highly desirable in aerospace. Engineers often aim to reduce aircraft weight while maintaining strength to enhance fuel efficiency and flight performance. Titanium flanges contribute significantly to achieving this goal by reducing overall structural weight.

Corrosion Resistance: Titanium flanges exhibit outstanding corrosion resistance, particularly against chloride ions prevalent in marine environments. Aircraft and helicopters operating in such conditions require components with robust corrosion resistance, where titanium flanges play a vital role.

High Temperature Performance: Titanium flanges maintain strength and stability at high temperatures, making them suitable for applications such as engine components, gas turbines, and jet engines that demand heat-resistant materials. They withstand high-temperature airflow and heat emissions while maintaining structural integrity and functionality.

High Strength Requirements: Titanium flanges' high strength enables them to withstand dynamic loads and mechanical stresses typical in aviation, ensuring flight safety and structural reliability. They are commonly used in critical connections such as landing gear, wing assemblies, structural components, and flight control systems.

Wear and Fatigue Resistance: Titanium alloys offer excellent fatigue and wear resistance, critical for aerospace applications subjected to frequent use and high-intensity operations. Titanium flanges maintain stable performance over extended periods, reducing the risk of damage and failure due to fatigue and wear.
