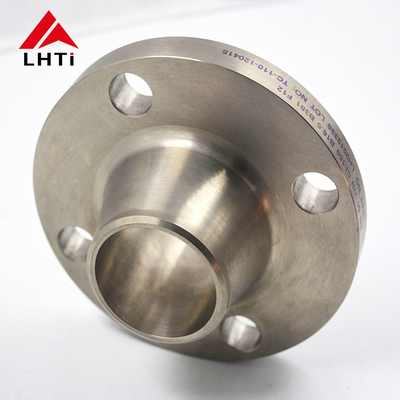

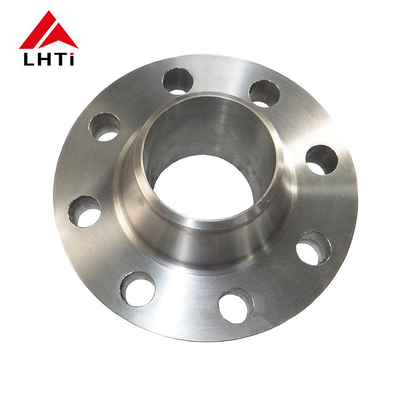

DIN 2633 WNRF Titanium Weld Neck Flange Grade 2 Flange WN Raised Face PN16 In Piping Systems

Weld neck flanges are chosen for applications precisely because they excel under severe and critical conditions:

Weld neck flanges provide a strong, reinforced connection between pipes or fittings, capable of withstanding high internal pressures without leaking. The welding neck design reduces stress concentration at the joint, which is crucial under high pressure conditions.

In industries such as oil and gas, chemical processing, and power generation, where temperature and pressure can fluctuate widely, weld neck flanges offer stability and reliability. They maintain a secure seal over a broad range of operational conditions.Weld neck flanges are often made from materials like stainless steel or titanium, which can withstand elevated temperatures without losing their mechanical properties. This makes them suitable for applications involving hot fluids or gases.

The robust construction of weld neck flanges ensures they can handle hazardous and corrosive fluids safely. They provide a secure connection that minimizes the risk of leaks or material degradation, crucial for industries dealing with volatile substances.Some applications, such as in cryogenic processes or Arctic environments, require components that remain reliable at extremely low temperatures. Weld neck flanges, when made from appropriate materials and with suitable design considerations, can maintain their integrity even in sub-zero conditions.

2. Grade 2 of DIN 2633 Titanium Weld Neck Flange

Grade 2 titanium is highly sought after in the pipe, valve, and fitting industry due to its exceptional strength and corrosion resistance properties. ASTM B381 Grade 2 is frequently requested due to its availability and resistance to oxidation, similar to the marine-grade 316 stainless steel. Additionally, we provide titanium grade 12, which maintains superior strength at higher temperatures and is prized for its malleability and weldability.

Titanium is extensively used in applications demanding high temperature and pressure resistance while minimizing weight. Key examples include aerospace components like aircraft body frames and cutting-edge military equipment. Its superb corrosion resistance makes titanium flanges popular for offshore drilling components and heat exchanger assemblies, particularly in marine and chloride-rich environments.

In summary, titanium, especially ASTM B381 Grade 2 and grade 12, plays a critical role in industries requiring robust performance under extreme conditions, ensuring reliability and longevity in challenging environments.

3. Specifications for DIN2633 PN16 Titanium Weld Neck Flange

4. Advantages of Titanium Weld Neck Flanges

• Exceptional Durability: Titanium is renowned for its superior resistance to corrosion compared to most other metals. This makes it ideal for harsh environments, such as those found in marine, chemical processing, and offshore industries.
• Resistance to Pitting and Crevice Corrosion: Especially critical in applications involving seawater or corrosive chemicals, where other materials might fail.
• High Strength-to-Weight Ratio: Titanium flanges are lighter than those made from stainless steel or carbon steel, which is a significant advantage in aerospace and automotive industries where reducing weight is crucial.
• Maintains Integrity Under Stress: The inherent strength of titanium allows these flanges to withstand high stress and pressure without compromising their structural integrity.
• Stability in Extreme Temperatures: Unlike many other metals, titanium maintains its strength and does not become brittle at low temperatures or lose strength at high temperatures, making it suitable for a wide range of operating conditions.
• Long Service Life: Due to their robustness and corrosion resistance, titanium flanges can last significantly longer than other flanges, reducing the need for frequent replacements.
• Lower Lifecycle Costs: Although the initial cost is higher, the longevity and reduced maintenance requirements can make titanium flanges more cost-effective over time.
• Reliable Welding Performance: Titanium weld neck flanges are designed for direct welding to the piping system, providing a strong, seamless connection that enhances the overall strength and leak resistance of the system.
• Reduced Risk of Leaks: The weld neck design creates a strong bond with the pipe, which is crucial in high-pressure applications to prevent leaks and ensure safety.
• Withstand Harsh Environments: Besides corrosion, titanium is also resistant to damage from a variety of environmental factors including UV radiation, biological fouling, and chemical exposure.
• Wide Range of Applications: These flanges are used in industries as diverse as chemical processing, aerospace, military, marine, petrochemical, and power generation due to their superior properties.

5. Titanium Weld Neck Flange Inspections

Visual Testing (VT): This involves inspecting the surface of the weld and the flange visually to detect any visible defects such as cracks, porosity, or improper weld profiles.

Ultrasonic Testing (UT): This technique uses high-frequency sound waves to detect internal defects within the material, such as voids, inclusions, or cracks. It's particularly useful for thicker sections of titanium welds.

Radiographic Testing (RT): This method uses X-rays or gamma rays to produce images of the internal structure of the weld and flange. It's effective for detecting internal defects and assessing weld quality.

Magnetic Particle Testing (MT): MT is used to detect surface and near-surface defects in ferromagnetic materials. However, since titanium is not ferromagnetic, this method might not be applicable unless there are magnetic materials nearby or coatings that can be magnetized.

Penetrant Testing/Dye Penetrant (PT): PT involves applying a dye penetrant to the surface of the weld and then removing excess dye to reveal surface-breaking defects. This method is useful for detecting small cracks, porosity, and leaks.

Eddy Current Testing (ET): ET uses electromagnetic induction to detect surface and near-surface defects in conductive materials like titanium. It's useful for detecting corrosion, cracks, and variations in material properties.

Acoustic Emission (AE): AE involves monitoring the acoustic emissions from a material under stress to detect changes indicative of defects like cracks or leaks. It can be used for both weld and base material inspection.

6. Applications of DIN 2633 Titanium Weld Neck Flange

Chemical Processing:

Titanium weld neck flanges are extensively used in chemical plants for connecting pipes that carry corrosive substances. Titanium's excellent corrosion resistance ensures longevity and minimizes maintenance requirements in aggressive chemical environments.

Oil and Gas Industry:

In offshore and onshore oil and gas installations, titanium weld neck flanges are utilized where resistance to seawater corrosion is crucial. They withstand the harsh conditions and ensure long-term reliability in pipelines, rigs, and processing facilities.

Marine Applications:

Titanium's resistance to seawater corrosion makes DIN 2633 weld neck flanges ideal for marine applications. They are used in shipbuilding, offshore platforms, and desalination plants where durability in saltwater environments is essential.

Aerospace:

Titanium weld neck flanges are employed in aerospace applications due to their lightweight properties, strength, and resistance to high temperatures and pressures. They are used in aircraft engines, fuel systems, and structural components.

Medical Industry:

In medical equipment and devices where corrosion resistance and biocompatibility are required, titanium weld neck flanges can be used. They are suitable for applications such as medical gas delivery systems and implantable medical devices.
