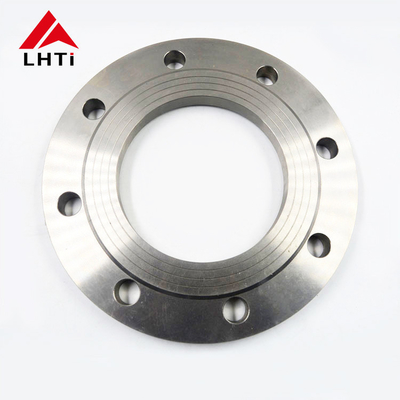

DIN 2503 Titanium Blind Plate Flange DN10-1000 High Strength Corrosion Resistance for Industrial Piping Systems

Name: DIN 2503 Titanium Blind Plate Flange DN10-1000 High Strength Corrosion Resistance for Industrial Piping Systems
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Plate Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Plate Flange
MOQ:	1-5 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi, China

Certification:

ISO9001, TUV etc.

Features:

High Strength, Corrosion Resistance, Etc.

Product Standard:

DIN 2503 Germany Standard

Materials:

Titanium Alloy

Grades:

Gr1,Gr2,Gr5,Gr7,Gr12,Gr23

Pressure Rating:

PN 40

Sizes:

DN10-1000

Face Types:

RF, FF, TG, RJ Etc.

Processes:

Casting, Forging, Machining, Etc.

Surface Treatment:

Polishing, Sandblasting, Anodizing, Etc.

Applications:

Plumbing, HVAC, And General Industrial Piping Systems

Packaging Details:

Plywood case or pallet etc.

Supply Ability:

5000 pcs per month

Highlight:

Gr2 Titanium Blind Plate Flange

Pipe Plate Titanium Blind Plate Flange

PN 25 Pipe Plate Flange

Product Description

DIN 2503 Titanium Blind Plate Flange PN 25 Gr2 Gr5 Pipe Plate Flange

Titanium Blind Plate Flange DIN 2503 PN 40 Blank Flange Plate

Plate flanges are flat, circular components typically made from materials like carbon steel, stainless steel, or titanium. They are commonly used to close the ends of piping systems, valves, or pressure vessel openings.

Key Characteristics of Plate Flanges

Flat, circular shape without raised faces or protrusions
Easy alignment with full-face gasket sealing
Available in various thicknesses for different pressure requirements
Manufactured to standard dimensions (OD, ID, BCD, bolt holes)
Conforms to industry standards like ASME B16.5 or DIN standards

DIN 2503 Standard Specifications

DIN 2503 is a German standard specifying dimensions, materials, and technical requirements for plate flanges with raised face.

Type: Plate Flanges (Slip-On Flanges)
Facing: Raised Face (RF)
Flange Face: Raised face design for effective gasket compression
Materials: Carbon steel, stainless steel, titanium, and other alloys
Pressure Classes: PN 6, PN 10, PN 16, PN 25, PN 40

Applications

Widely used in industrial applications including:

Chemical processing
Oil and gas
Petrochemicals
Water treatment plants

Advantages of DIN 2503 Flanges

Reliability: Raised face design enhances sealing efficiency
Standardization: Ensures uniformity in dimensions and materials
Versatility: Suitable for various operating conditions
Cost-Effectiveness: Balances performance with affordability

Grades of DIN 2503 Titanium Plate Flange

Specifications for DIN2503 PN40 Titanium Plate Flange

Nominal Pipe Size	Diameter of Pipe	Flange Dia	Flange I.D	Thk of Flanges	Dia of Bolt Circle	No. of holes	Dia of Bolt Holes	Weight (KG)
10	17.20	90	17.70	14	60	4	14	0.60
15	21.30	95	22.00	14	65	4	14	0.67
20	26.90	105	27.60	16	75	4	14	0.94
25	33.70	115	34.40	16	85	4	14	1.11
32	42.40	140	43.10	16	100	4	18	1.62
40	48.30	150	49.00	16	110	4	18	1.85
50	60.30	165	61.10	18	125	4	18	2.46
65	76.10	185	77.10	18	145	4	18	2.99
80	88.90	200	90.30	20	160	8	18	3.61
100	114.30	220	115.90	20	180	8	18	3.99
125	139.70	250	141.60	22	210	8	18	5.41
150	168.30	285	170.50	22	240	8	22	6.55
175	193.70	315	196.10	24	270	8	22	8.42
200	219.10	340	221.80	24	295	12	22	8.97
250	273.00	405	276.20	26	355	12	26	12.76
300	323.90	460	327.60	28	410	12	26	16.60
350	355.60	520	359.70	30	470	16	26	24.08
400	406.40	580	411.00	32	525	16	30	30.20
450	457.00	640	462.30	38	585	20	30	41.67
500	508.00	715	513.60	38	650	20	33	52.87
600	610.00	840	616.50	42	770	20	36	77.58
700	711.00	910	716.00	44	840	24	36	77.13
800	813.00	1025	818.00	50	950	24	39	106.35
900	914.00	1125	920.00	54	1050	28	39	125.39
1000	1016.00	1255	1022.00	60	1170	28	42	177.99
