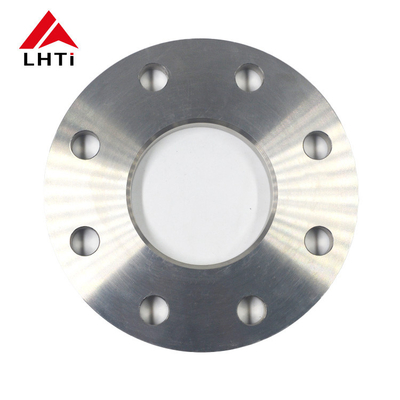

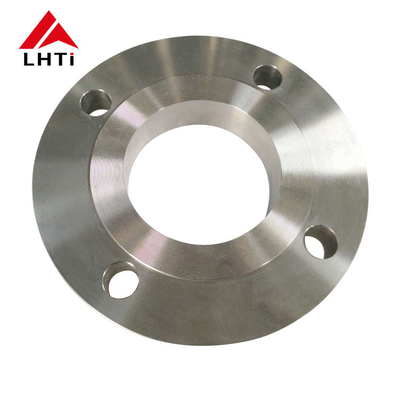

DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange Pipe Flange Plate PLFF PLRF for Pipeline Systems

2. Grades of DIN 2501 Titanium Plate Flange

1. Commercially Pure Titanium:

   • Grade 2 (UNS R50400): This is the most widely used grade of titanium due to its excellent corrosion resistance, formability, and weldability. It is suitable for a wide range of industrial applications where moderate strength and good corrosion resistance are required.

2. Titanium Alloys:

   • Grade 5 (Ti-6Al-4V, UNS R56400): This is the most commonly used titanium alloy, known for its high strength, lightweight properties, and excellent corrosion resistance. It is used in aerospace, marine, and chemical processing industries.
   • Grade 7 (UNS R52400): Known for its excellent weldability and corrosion resistance in reducing and mildly oxidizing environments, Grade 7 titanium is often used in chemical processing equipment.
   • Grade 12 (UNS R53400): This titanium alloy offers excellent corrosion resistance in highly oxidizing environments and is well-suited for chemical processing and marine applications.
   • Grade 23 (Ti-6Al-4V ELI, UNS R56401): Similar to Grade 5, but with extra low interstitial (ELI) content, Grade 23 titanium alloy is used in medical and aerospace applications where biocompatibility and high strength are required.

3. Specifications for DIN2501 PN10 Titanium Plate Flange

4. Standards of Titanium Plate Flange

AFNOR NF E29-200-1: French standard for flanges, including titanium flanges.

ASME ANSI B16.5: American Society of Mechanical Engineers (ASME) standard for pipe flanges and flanged fittings. It covers titanium flanges used in North America and internationally.

AWWA C207: American Water Works Association (AWWA) standard for steel pipe flanges for waterworks service, including titanium flanges used in water treatment applications.

BS1560, BS 4504, BS 10: British standards for pipe flanges and bolting, including titanium materials.

ISO7005-1: International Organization for Standardization (ISO) standard for metallic flanges, including titanium flanges.

MSS SP 44: Manufacturer's Standardization Society (MSS) of the Valve and Fittings Industry standard for steel pipeline flanges. It includes titanium flanges.

AS2129: Australian standard for flanges, including titanium flanges.

CSA Z245.12: Canadian standard for steel pipe flanges, including titanium materials.

DIN2573, DIN2576, DIN2501, DIN2502: German standards (DIN) for flanges, covering various types and dimensions of titanium flanges.

EN1092-1, EN1759-1: European standards (EN) for flanges, including titanium flanges.

JIS B2220: Japanese Industrial Standards (JIS) for steel pipe flanges, including titanium flanges.

UNI 2276, UNI 2277, UNI 2278, UNI 6089, UNI 6090: Italian standards (UNI) for pipe flanges, including titanium materials.

5. Applications of DIN2501 Titanium Plate Flange

• Pipeline Construction: Used to join sections of pipelines, ensuring secure and leak-free connections during fluid transport.
• Refineries and Petrochemical Plants: Installed in processing units for connecting vessels, reactors, and heat exchangers, where resistance to corrosive chemicals is essential.
• Offshore Platforms: Employed in offshore drilling rigs and production platforms to withstand marine environments and harsh weather conditions.
• Gas Processing Facilities: Utilized in compressors, pumps, and valves to maintain operational integrity and safety.
