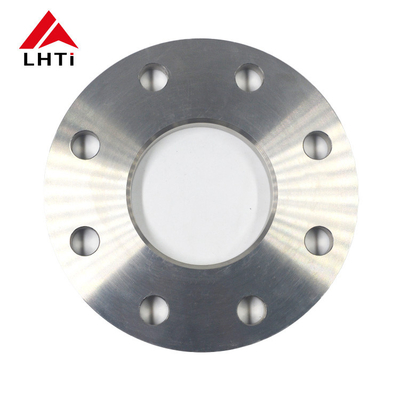

DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange for High Strength and Corrosion Resistance in Pipeline Systems

Name: DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange for High Strength and Corrosion Resistance in Pipeline Systems
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Plate Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Plate Flange
MOQ:	1-5 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi, China

Certification:

ISO9001, TUV etc.

Features:

High Strength, Good Corrosion Resistance

Product Standard:

DIN 2501 Titanium Plate Flange

Materials:

Titanium Metal Titanium Alloy

Material Grade:

Titanium Grade 2, Grade 12 And Others

Sizes:

1/2''~80''(DN10~3600)

Face Types:

RF, FF, TG, RJ Etc.

Processes:

Casting, Forging, Machining, Etc.

Surface Treatment:

Polishing, Sandblasting, Anodizing, Etc.

Packaging Details:

Plywood case or pallet etc.

Supply Ability:

5000 pcs per month

Highlight:

Gr2 Titanium Plate Flange

DIN2501 Titanium Plate Flange

PLRF Titanium Plate Flange

Product Description

DIN2501 Gr2 PN10 Titanium Plate Flange PL Flange Pipe Flange Plate PLFF PLRF for Pipeline Systems

Grades of DIN 2501 Titanium Plate Flange

Commercially Pure Titanium:

Grade 2 (UNS R50400): This is the most widely used grade of titanium due to its excellent corrosion resistance, formability, and weldability. It is suitable for a wide range of industrial applications where moderate strength and good corrosion resistance are required.

Titanium Alloys:

Grade 5 (Ti-6Al-4V, UNS R56400): This is the most commonly used titanium alloy, known for its high strength, lightweight properties, and excellent corrosion resistance. It is used in aerospace, marine, and chemical processing industries.
Grade 7 (UNS R52400): Known for its excellent weldability and corrosion resistance in reducing and mildly oxidizing environments, Grade 7 titanium is often used in chemical processing equipment.
Grade 12 (UNS R53400): This titanium alloy offers excellent corrosion resistance in highly oxidizing environments and is well-suited for chemical processing and marine applications.
Grade 23 (Ti-6Al-4V ELI, UNS R56401): Similar to Grade 5, but with extra low interstitial (ELI) content, Grade 23 titanium alloy is used in medical and aerospace applications where biocompatibility and high strength are required.

Specifications for DIN2501 PN10 Titanium Plate Flange

Nominal Pipe Size	Diameter of Pipe	Flange Dia (D)	Flange I.D (D5)	Thk of Flanges (B)	Dia of Bolt Cirlce (K)	No. of holes	Dia of Bolt Holes (D2)	Weight PLATE (KG)	Weight BLIND (KG)
15	21.30	95	22.00	14	65	4	14	0.67	0.71
20	26.90	105	27.60	16	75	4	14	0.93	1.01
25	33.70	115	34.40	16	85	4	14	1.11	1.23
32	42.40	140	43.10	16	100	4	18	1.62	1.81
40	48.30	150	49.00	16	110	4	18	1.85	2.09
50	60.30	165	61.10	18	125	4	18	2.46	2.88
65	76.10	185	77.10	18	145	4	18	2.99	3.65
80	88.90	200	90.30	20	160	8	18	3.61	4.61
100	114.30	220	115.90	20	180	8	18	3.99	5.65
125	139.70	250	141.60	22	210	8	18	5.41	8.13
150	168.30	285	170.50	22	240	8	22	6.55	10.44
175	193.70	315	196.10	24	270	8	22	8.42
200	219.10	340	221.80	24	295	12	22	8.97	16.48
250	273.00	405	276.20	26	355	12	26	12.76	23.99
300	323.90	460	327.60	28	410	12	26	16.60	30.73
350	355.60	520	359.70	30	470	16	26	24.08	42.56
400	406.40	580	411.00	32	525	16	30	30.20	60.68
450	457.00	640	462.30	38	585	20	30	41.67	71.74
500	508.00	715	513.60	38	650	20	33	52.87	96.4
600	610.00	840	616.50	42	770	20	36	77.58	145.6
700	711.00	910	716.00	44	840	24	36	77.13
800	813.00	1025	818.00	50	950	24	39	106.35
900	914.00	1125	920.00	54	1050	28	39	125.39
1000	1016.00	1255	1022.00	60	1170	28	42	177.99
