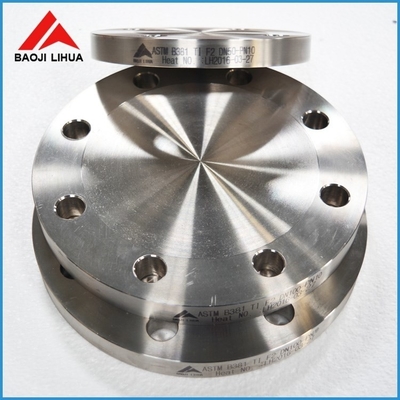

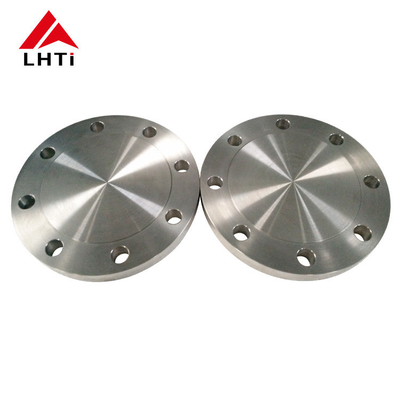

Blind Flange BLRF Flange Grade 2 Titanium Blank Flange Raised Face/Flat Face Class 150 for Industrial Applications

3. ASME B16.5 Titanium Blind Flange Grades

Titanium Blind flanges are commonly used in piping systems due to their strength, light weight, and excellent corrosion resistance. These flanges are available in various grades, each tailored for specific applications and environments.

1. Grade 1 Titanium: Known for its high ductility, grade 1 titanium is the softest and most formable of all the commercially pure titanium grades. It's mostly used in applications that require superior corrosion resistance in environments such as the chemical processing industry.

2.

3. Grade 2 Titanium: This is the most widely used titanium grade. It offers a good balance between strength and ductility, with excellent corrosion resistance. It is used in a broad range of applications, including flanges for piping systems.

4.

5. Grade 5 Titanium (Ti 6Al-4V): This is an alloyed grade and the most commonly used of all titanium alloys. It significantly increases the strength of the flanges compared to pure titanium grades. Grade 5 titanium is used in high-strength applications where both heat and corrosion resistance are required.

6.

7. Grade 7 Titanium: Featuring excellent weldability and fabricability, this grade includes palladium for enhanced corrosion resistance, particularly against reducing acids and localized attack in hot halides.

8.

9. Grade 12 Titanium: This grade offers enhanced heat resistance and strength compared to other commercially pure grades. It also maintains good weldability and corrosion resistance.

10.

11. Grade 23 Titanium (Ti 6Al-4V ELI): This grade is similar to Grade 5 but has extra low interstitials (ELI), making it preferable for higher fracture toughness and improved ductility. It's often used in medical applications and also suitable for flanges in critical, high-end applications.

    • Titanium: Titanium has exceptional corrosion resistance, especially in aggressive environments such as seawater, chlorides, and oxidizing acids. It forms a protective oxide layer that enhances its resistance to corrosion.
    • Stainless Steel: Stainless steel also offers good corrosion resistance, but not to the extent of titanium. It may require additional coatings or treatments for enhanced protection in corrosive environments.
    • Carbon Steel: Carbon steel is susceptible to corrosion, particularly in moist or acidic conditions, and requires coatings or alloys for protection.
    • Inconel: Inconel alloys provide excellent resistance to oxidation and corrosion in extreme environments, including high-temperature and pressure conditions.

4. The Differences between Titanium Flanges and Other Materials​

1. Temperature Resistance:

   • Titanium: Titanium has excellent strength retention at both low and high temperatures, making it suitable for cryogenic applications as well as high-temperature environments up to 600°C (1112°F).
   • Stainless Steel: Stainless steel maintains its mechanical properties over a wide range of temperatures, but its strength decreases significantly at high temperatures compared to titanium.
   • Carbon Steel: Carbon steel is suitable for lower temperature applications and may lose strength at higher temperatures due to oxidation.
   • Inconel: Inconel alloys maintain their mechanical properties at high temperatures, offering excellent creep and rupture strength.

2. Fabrication and Weldability:

   • Titanium: Titanium is more challenging to machine and weld compared to stainless steel and carbon steel. Specialized equipment and techniques are often required to prevent contamination and ensure quality welds.
   • Stainless Steel: Stainless steel is relatively easier to fabricate and weld compared to titanium, with a wide range of welding methods available.
   • Carbon Steel: Carbon steel is straightforward to fabricate and weld, making it more cost-effective in terms of fabrication.
   • Inconel: Inconel alloys can be difficult to machine and weld due to their high strength and work hardening characteristics, requiring skilled labor and specialized equipment.

3. Cost Considerations:

   • Titanium: Titanium is generally more expensive than stainless steel, carbon steel, and some alloys like Inconel due to its processing challenges and limited availability.
   • Stainless Steel: Stainless steel is cost-effective and widely available, suitable for a broad range of applications.
   • Carbon Steel: Carbon steel is typically the most economical option among these materials, making it suitable for large-scale industrial applications.
   • Inconel: Inconel alloys are among the more expensive materials due to their complex composition and processing requirements.
4.

5. Advantages of Titanium Blind Flanges in the Industry

• Corrosion Resistance: Excellent resistance to corrosion in various aggressive environments.
• Strength-to-Weight Ratio: Provides strength and durability while remaining lightweight.
• High Temperature Resistance: Maintains mechanical properties at elevated temperatures.
• Biocompatibility: Non-toxic and biocompatible, suitable for medical and food processing applications.
• Longevity: Durable and long-lasting performance, reducing maintenance and replacement costs.

6. Applications of ANSI B16.5 Titanium Blind Flange

• Chemical Processing: Due to its superior corrosion resistance, titanium blind flanges are commonly used in chemical processing plants where exposure to corrosive chemicals is prevalent.
• Marine and Offshore: Ideal for marine environments and offshore platforms where resistance to seawater corrosion is critical.
• Aerospace: Used in aerospace applications for their lightweight properties and resistance to high temperatures and pressures.
• Oil and Gas: Suitable for oil and gas industries where high strength, corrosion resistance, and reliability are required in pipeline systems.
