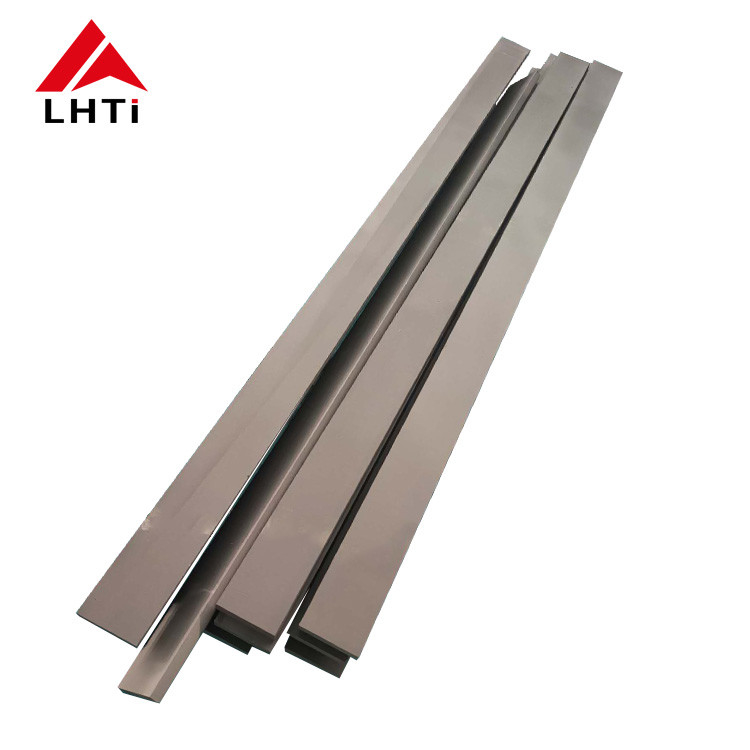

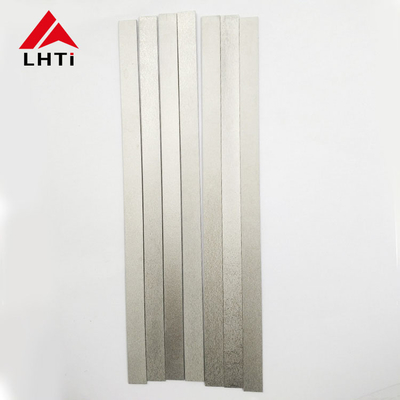

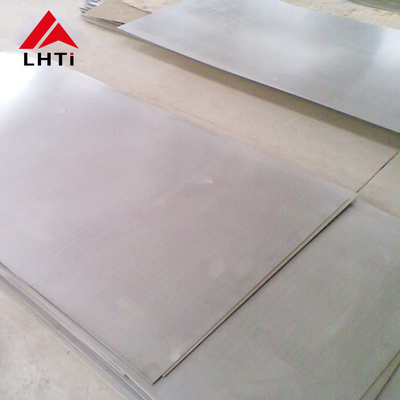

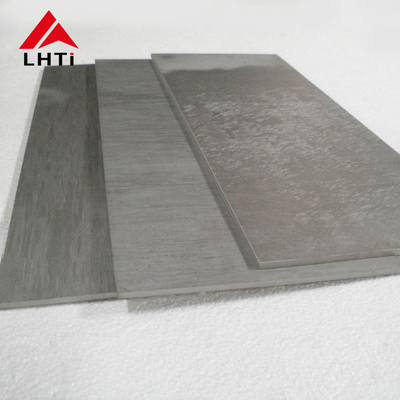

Grade1 GR2 GR3 GR5 GR7 Titanium plates 1mm 2.5mm 3mm

Name: Grade1 GR2 GR3 GR5 GR7 Titanium plates 1mm 2.5mm 3mm
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	50 kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Standard:

ASTM B265

Technology:

Cold Rolled

Shape:

Square

Surface:

Polished, Acid Washing

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

200000 kg per month

Highlight:

3mm Titanium plates

1mm Titanium plates

2.5mm Titanium plates

Product Description

Grade1 GR2 GR3 GR5 GR7 Titanium plates 1mm 2.5mm 3mm

Standard:ASTM B265, AMS 4911, AMS 4916, ASTM F67, ASTM F136
Grade:Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23, etc
Thickness:0.5mm - 50 mm
Width:10mm - 2500mm
Technology:Hot-rolled, cold-rolled, hot forging, machining
Condition:Cold rolled(Y), hot rolled(R), annealed (M), quenching(C)
Surface:Pickling surface, polished surface, black surface
Specifications:Aerospace, medical, industrial

Standard	ASTM B265, AMS 4911, AMS 4916, ASTM F67, ASTM F136
Grade	Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9,, Gr23, etc.
Thickness	0.5mm - 30mm
Width	10mm - 2500mm
Technology	Hot-rolled, cold-rolled, hot forging, machining
Condition	Cold rolled(Y), hot rolled(R), annealed (M), quenching(C)
Surface	Pickling surface, polished surface, black surface

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
