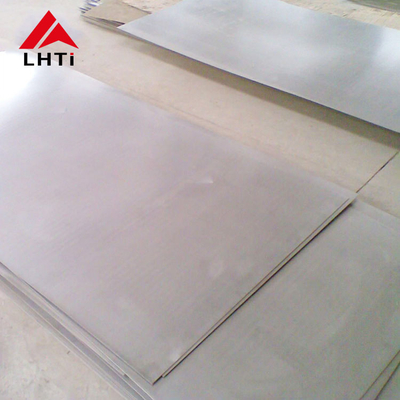

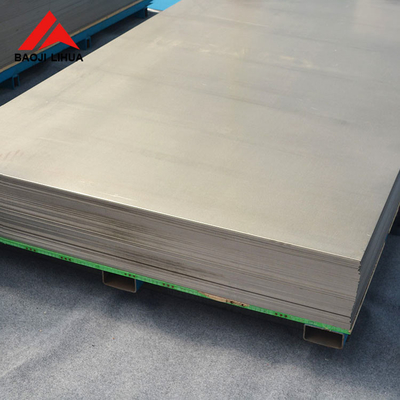

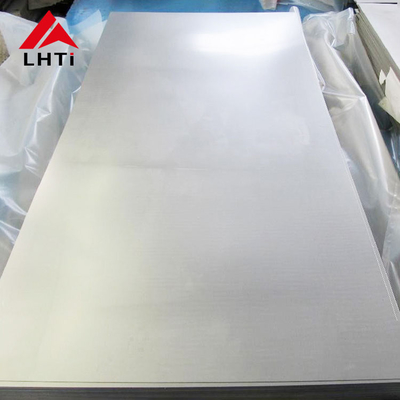

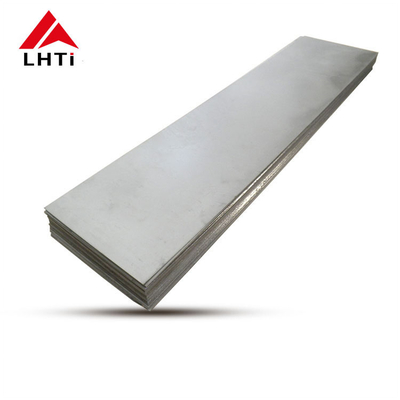

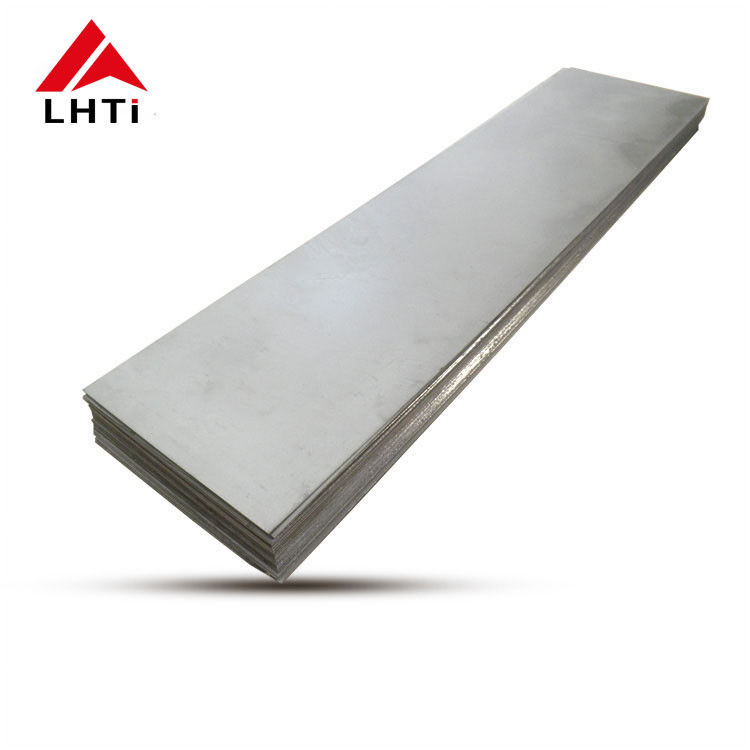

GR1 Titanium Alloy Plate Titanium Sheet Cold Rolled Technology Polished

Name: GR1 Titanium Alloy Plate Titanium Sheet Cold Rolled Technology Polished
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium Sheet

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-28 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 200000 kg per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Titanium alloy plate sheet, GR1 Titanium alloy plate, Cold Rolled Titanium Sheet


Standard:	ASTM B265	Technology:	Cold Rolled
Shape:	Square	Surface:	Polished, Acid Washing

Standard:	ASTM B265
Technology:	Cold Rolled
Shape:	Square
Surface:	Polished, Acid Washing

GR1 Titanium Alloy Plate Titanium Sheet Cold Rolled Technology Polished

GR1 Titanium alloy plate titanium sheet

Standard:ASTM B265, AMS 4911, AMS 4916, ASTM F67, ASTM F136
Grade:Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23, etc
Thickness:0.5mm - 50 mm
Width:10mm - 2500mm
Technology:Hot-rolled, cold-rolled, hot forging, machining
Condition:Cold rolled(Y), hot rolled(R), annealed (M), quenching(C)
Surface:Pickling surface, polished surface, black surface
Specifications:Aerospace, medical, industrial

Standard	ASTM B265, AMS 4911, AMS 4916, ASTM F67, ASTM F136
Grade	Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9,, Gr23, etc.
Thickness	0.5mm - 30mm
Width	10mm - 2500mm
Technology	Hot-rolled, cold-rolled, hot forging, machining
Condition	Cold rolled(Y), hot rolled(R), annealed (M), quenching(C)
Surface	Pickling surface, polished surface, black surface

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
