| Brand Name: | LHTi |
| Model Number: | Titanium Sheet |
| MOQ: | 50 kg |
| Payment Terms: | T/T, MoneyGram, L/C, Western Union |
| Supply Ability: | 200000 kg per month |

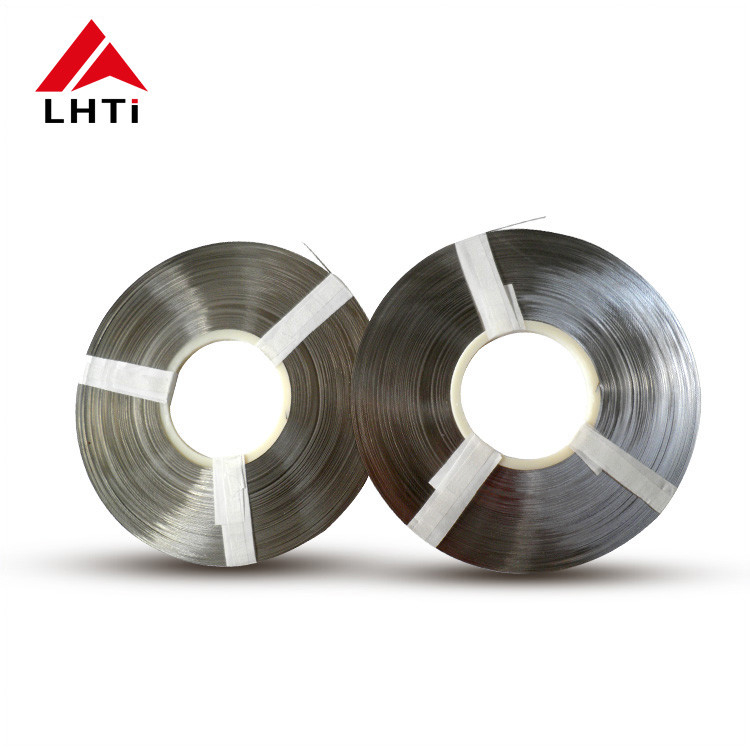

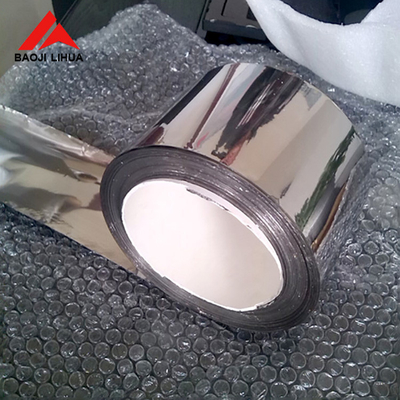

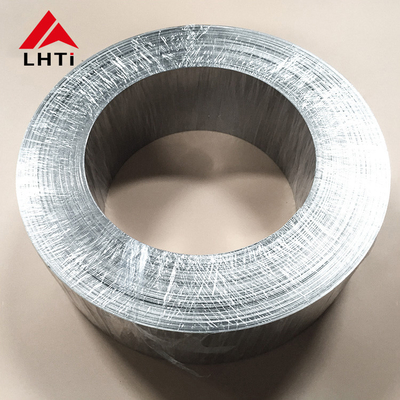

Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
| Standard | GB/T 3622/ASTM B265/ASME SB265 | |||||||
|---|---|---|---|---|---|---|---|---|
| Grade | TA1,TA2,TA3,TA4,TA4G,TA9,TA10,GR1,GR2,GR3,GR4,GR5,GR7,GR11,GR12 | |||||||
| Thickness | 0.01mm~0.5mm | |||||||
| Width | 0.05~0.99 (10 mm~600 mm) / 1.0~6.0 (≤1500 mm) | |||||||
| Length | L max | |||||||
| Technique | Cold rolling & hot rolling | |||||||
| Surface | Bright / matte | |||||||
| Shape | Coil sheet | |||||||
| Application | Metallurgy, electronics, chemical, petroleum, pharmaceutical, etc. | |||||||
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
