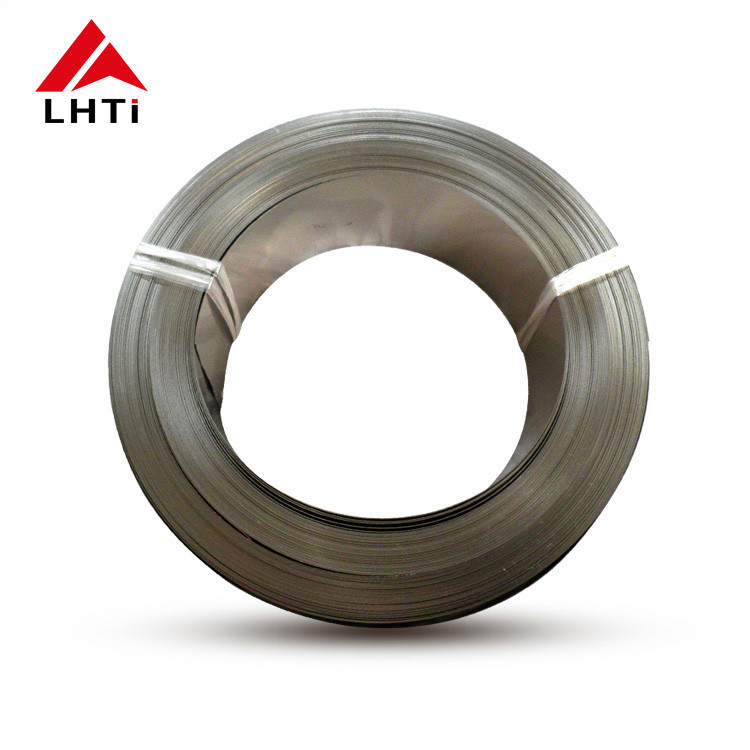

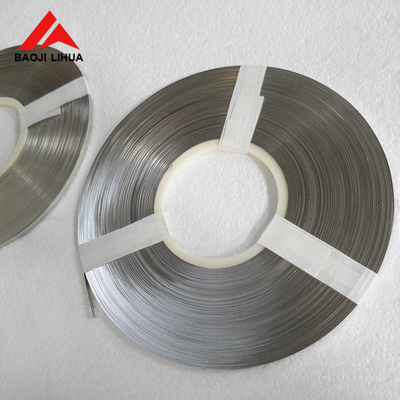

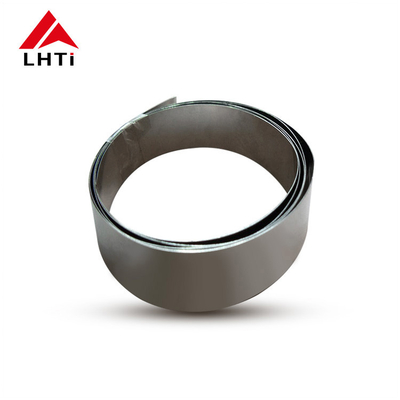

Grade 2 Titanium Foil Titanium Alloy Sheet Cold Rolled Titanium Sheet

Name: Grade 2 Titanium Foil Titanium Alloy Sheet Cold Rolled Titanium Sheet
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium Sheet

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

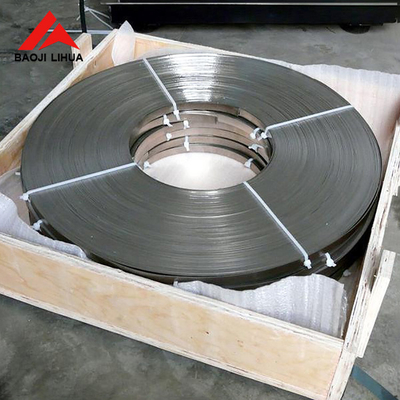

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-28 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 200000 kg per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Cold Rolled Titanium Alloy Sheet, Grade 2 Titanium Foil, Cold Rolled Titanium Sheet


Standard:	ASTM B265	Technology:	Cold Rolled
Shape:	Square	Surface:	Polished, Acid Washing

Standard:	ASTM B265
Technology:	Cold Rolled
Shape:	Square
Surface:	Polished, Acid Washing

Grade 2 Titanium Foil Titanium Alloy Sheet Cold Rolled Titanium Sheet

Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet

we perform these tasks to ensure quality according to globally recognized standards, such as ASTM, AMS, ASME, JIS, MIL.
Chemical Composition, Mechanical properties, making sure no defects inside the products.
ISO Quality Management System.
LHTi equipment & skilled production teams produce extreme titanium foil as thin as 0.01mm. We are skilled in critical application product development and production problem solving, ensuring availability, consistency, and quality. We are also capable of providing either annealed or tempered titanium foil as per the exact required specifications.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
