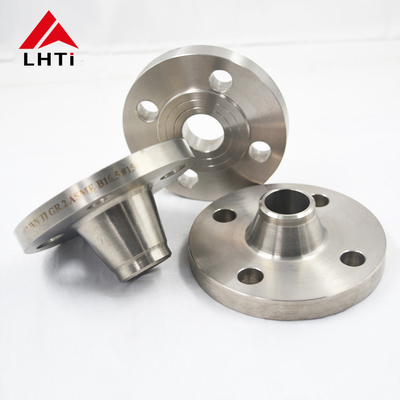

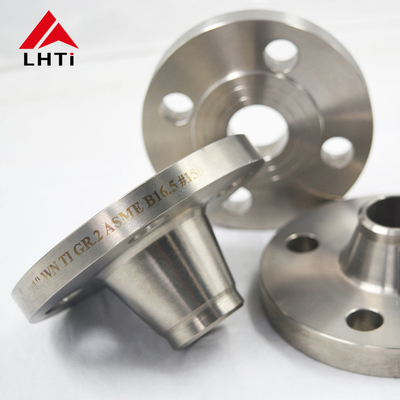

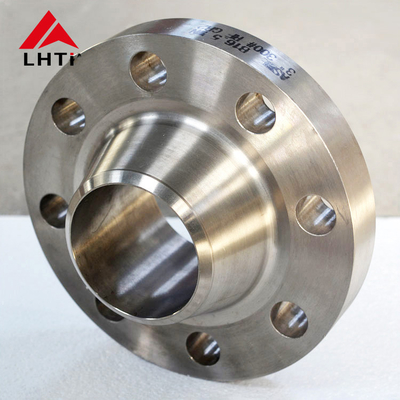

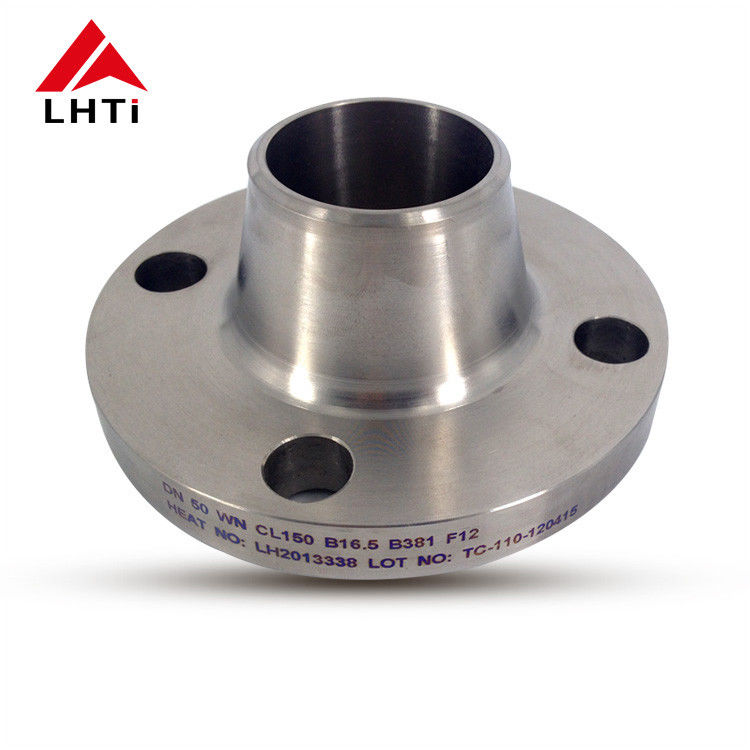

Din standard pn10 titanium forging weld neck flange

Name: Din standard pn10 titanium forging weld neck flange
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Baoji, China

Brand Name: LH-Ti

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Type:	WN , SO , BL ,SW, PL, Lap Joint, Customized.	Standard:	ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:	Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9	Application:	Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:	RF	Size:	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/	Surface:	Polished
Technique:	Forged And CNC Machined.	Inspection:	Ultrasonic Testing & Material Test Report EN10204.3.1

Type:	WN , SO , BL ,SW, PL, Lap Joint, Customized.
Standard:	ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:	Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application:	Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:	RF
Size:	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/
Surface:	Polished
Technique:	Forged And CNC Machined.
Inspection:	Ultrasonic Testing & Material Test Report EN10204.3.1

Din standard pn10 titanium forging weld neck flange

Size:DN10-DN1000
Size scope:
1: (Bolt Sizes)M1.6-M22*length
2: (Nut Sizes) M3-M30
3: (Washer Sizes) M3-M30
4: ( Flange Sizes) DN10-DN1000 / 1/2"-80"
Feature:
1. Low density and High Specific Strength
2. Excellent Corrosive Resistance
3. The use of long cycle
4. Good thermal properties
Surface treatment:Transparent oil, rust-proof oil, hot galvanizing Applications:Because of its high tensile strength - density ratio, excellent corrosion resistance , anti-fatigue, anti-crack resistance, and it can withstand moderately high temperatures, titanium alloys are used in aircraft, armor deposited board, naval ships, spacecraft and missiles.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
