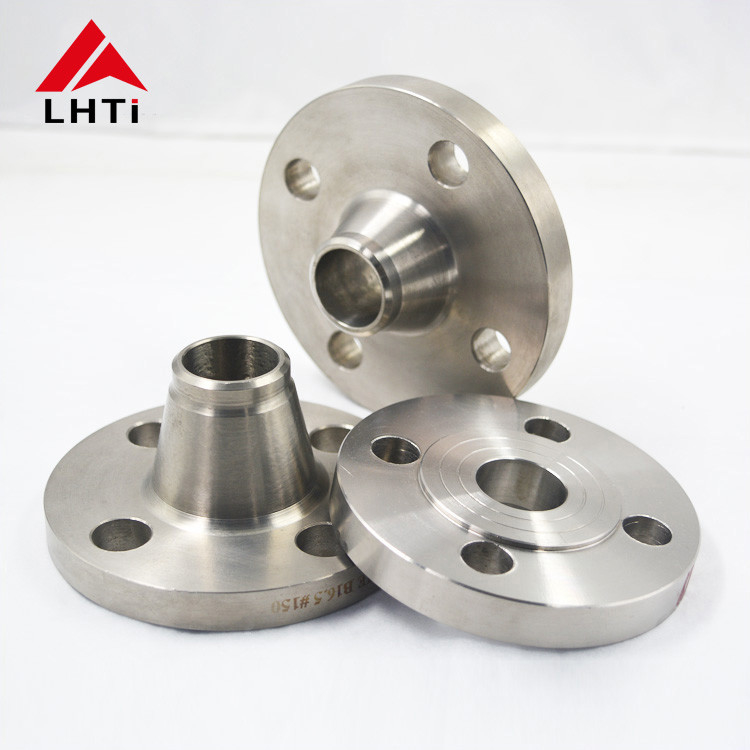

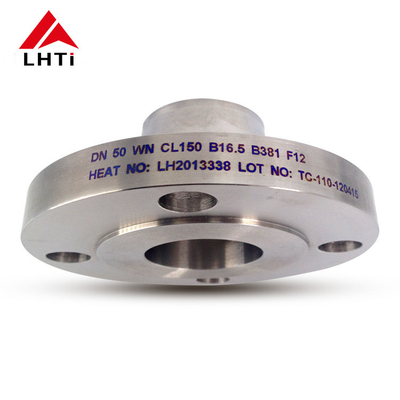

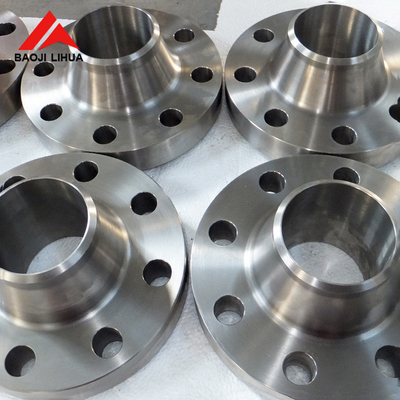

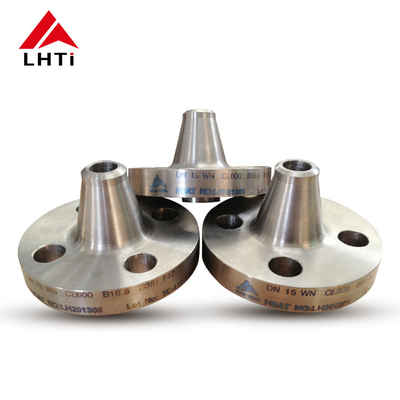

ANSI ASME B16.5 Grade 2 Titanium Industrial Flanges WNRF Class150

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Product Description

ANSI ASME B16.5 Grade 2 Titanium Industrial Flanges WNRF Class150

Gr2 titanium flange have high strength and corrosion resistance . Titanium is an active element in the air can be produced with oxygen, in its surface to produce a layer of dense oxide film, titanium oxide has a strong hardness and corrosion resistance, blocking the titanium and other chemical elements Reaction, we produce titanium products, through a special pickling treatment, in a certain concentration of nitric acid and hydrofluoric acid mixed solution soaking, so that titanium surface smooth, and increase the thickness of titanium oxide film to ensure that gr2 titanium flange can have More excellent corrosion resistance.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
