Titanium Flange
Created with Pixso.

ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole

ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole

Brand Name: LHTi
Model Number: LH-BL
MOQ: 1 piece
Price: US dollar $25/pc--US dollar $85/pc
Payment Terms: L/C, D/P, T/T, Western Union,paypal
Supply Ability: 100000 pcs per month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001, TUV etc.
Color:
Ti Natural
Material::
Titanium Gr2
Type::
BL (blind Flange)
Standard::
ASME/ASTM B16.5
Class::
CL300
Size::
2" Sch.20s
MOQ::
1PC
The Third Party Test::
TUV,SGS,BV Etc.
Material:
Titanium,TiAl, TiNi, Cr, TiCr, TiZr, TiCu Etc.
Packaging Details:
Wrapped by foam contained in plywood box for export
Supply Ability:
100000 pcs per month
Product Description

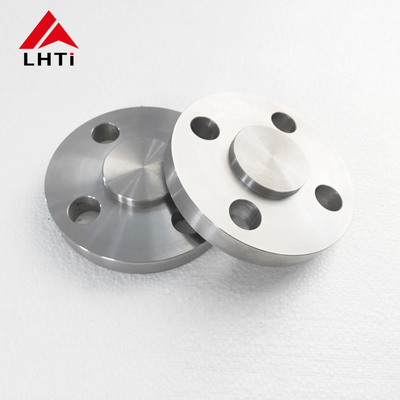

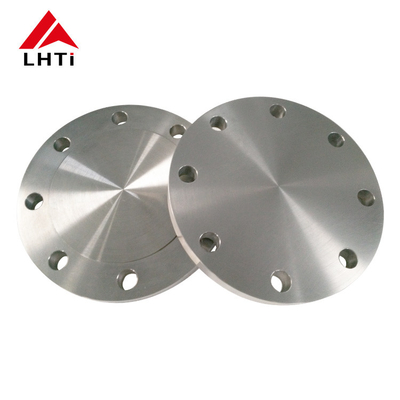

ASME B16.5 RF Gr5 Titanium Blind Flange 1/6 Class 150 With Threaded Hole







Titanium Blind Flanges



Product name Titanium blind flanges
Flange Type BL
Standard ANSI B16.5,ANSI B16.47A, ANSI B16.47
Size 1/2''~60''
Class Rating 150~20000LBS
Material Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)
Manufacturing process Forged, CNC machined
Surface CNC machined polished
Facing RF(raised face);FF(flat face);RTJ(ring type joint);RJ(ring joint face),TG(tongue and groove face);MFM(male and female face)
Application Pipe connections for chemical and petrochemical equipment. It has low density and performs impressively in corrosive environments.



Dimensional Tolerances of Blind Flanges ASME B16.5



Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm Inside Diameter not applicable
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm Outside Diameter of Hub 2≤ 1 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore not applicable Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0 Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm
Titanmium Bind flange

ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 0ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 1ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 2



Applications



ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 3



Production Process



ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 4



Our Factory



ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 5



Stock



ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 6



Quality Inspection



ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 7



Packaging



ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 8



Advantages of our factory



1. Used grade 1 titanium sponge as raw material to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.

2. Forged valve body and disc to control the leakage and visual.

3. Superior facilities and good experiences for fabrication.

4. In ability to improve and develop new design.

5. Fast delivery is possible to meet your needs well in time.

6. Low cost from bulk production will reduce your budget and improve your business.

7.Professional export team and long-term after-sales service

ASME B16.5 RF Gr5 Titanium Flange 1/6 Class 150 With Threaded Hole 9



We are always available. Welcome to contact us!
