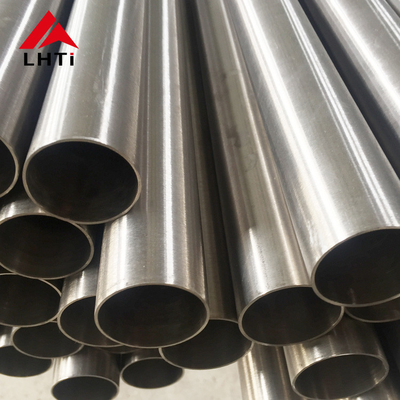

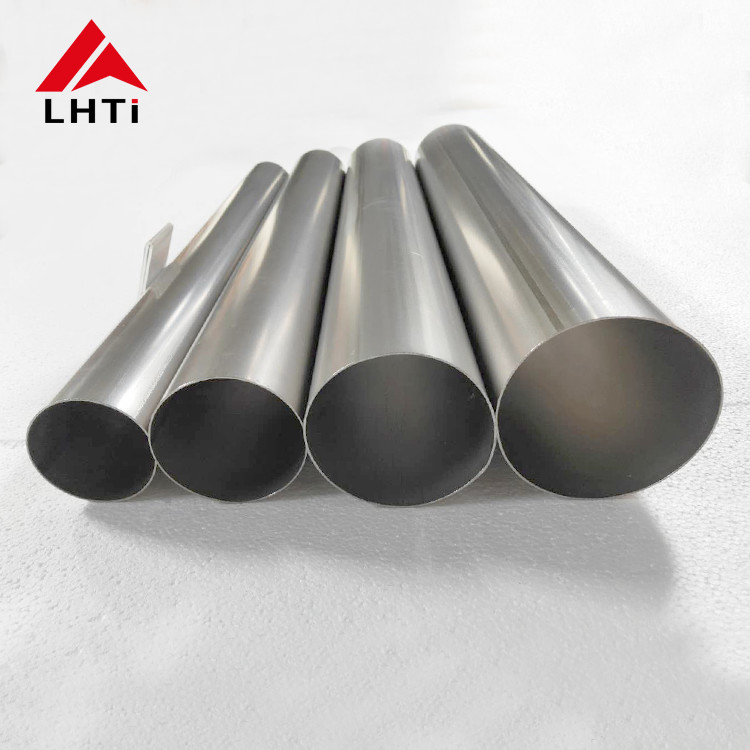

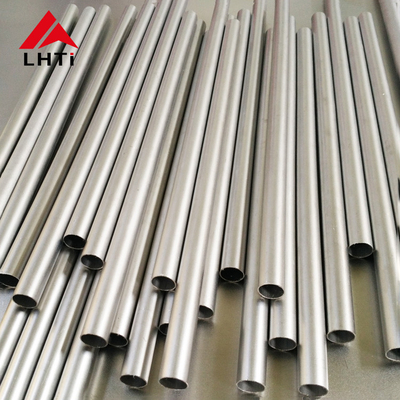

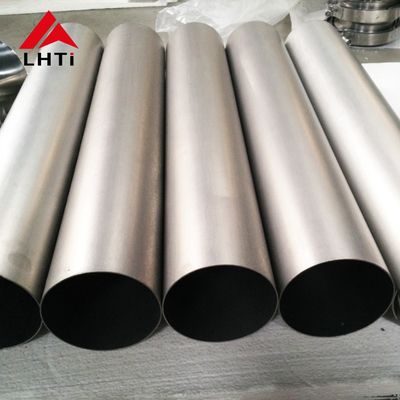

Gr9 Titanium Tubes For Titanium Bicycle Frame Titanium Pipe

Brand Name:	LH-Ti
Model Number:	Gr2 titanium round seamless pipe and tube
MOQ:	5 Kg
Price:	$20.00~$30.00/kg
Payment Terms:	L/C, T/T, MoneyGram,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Standard:

ASTM

Technique:

Seamless, Cold Drawn

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Material:

Titanium

Grade:

Titanium, Gr2 Gr5 Gr7 Gr9 Gr12

Application:

Industrial

Outer Diameter:

10-300mm

Inside Diameter:

4~268mm

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Product Description

Gr9 Titanium Tubes For Titanium Bicycle Frame Titanium Pipe

Outside diameter:≤60mm
Wall thickness:≥0.5mm
Length:60~1000mm(normal szie)
Technique: Cold Rolled, hot rolled
Grade: GR9 Ti3AL2.5V

Application: Exhaust pipes for automobiles, exhaust pipes for motorcycles, bicycle racks, oil pipes, titanium pipes in the aviation field, etc.titanium frame builders,lynskey bike frames,guru titanium bikes,titanium single speed mountain bike,titanium frame gravel bike,titanium road bike frame

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
