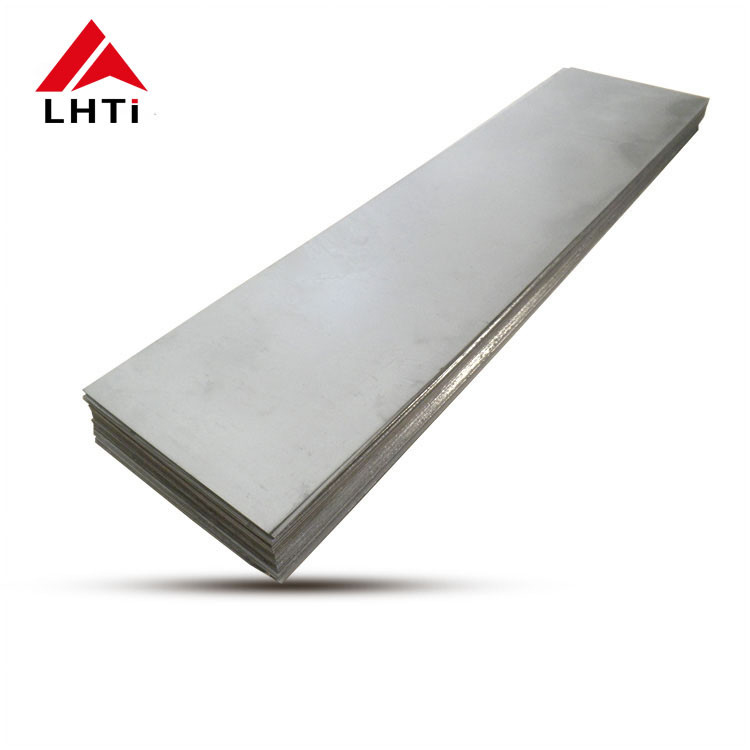

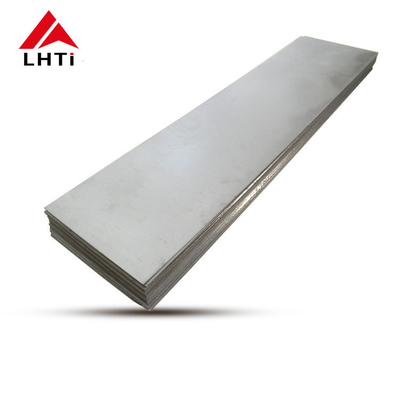

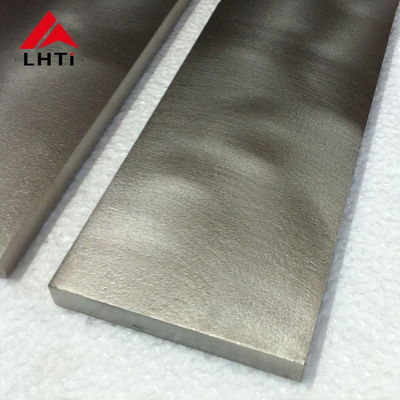

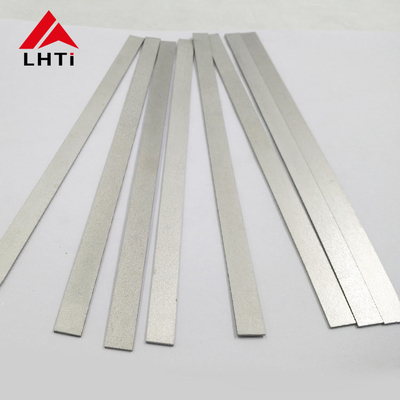

Grade7 Titanium Plate Titanium Sheet

Grade7 Titanium Plate Titanium Sheet

Brand Name: LHTi
Model Number: Titanium Sheet
MOQ: 50 kg
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015; TUV; SGS;BV
Standard:
ASTM B265
Technology:
Cold Rolled
Shape:
Square
Surface:
Polished, Acid Washing

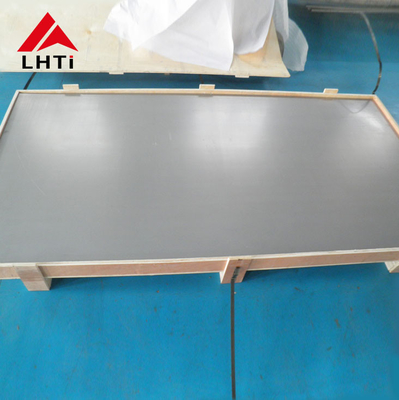

Packaging Details:
Plywood box with soft foam for additional protection
Supply Ability:
200000 kg per month
Product Description

Grade7 Titanium Plate Titanium Sheet



Width:50-3000mm
Length:Cut available
Technique:Hot Rolled & Cold Rolled
Thickness:0.5~100mm
Shape:Plate/Coil





Titanium Grade 7 has physical and mechanical properties equivalent to CP3 titanium or Grade 2. It has excellent welding and fabrication properties and is extremely resistant to corrosion especially from reducing acids.



Excellent Weldability Titanium

Excellent Fabricability

Physical Properties Equivalent to CP Grade 2

Mechanical Properties Equivalent to CP Grade 2

Most Resistant to Corrosion in Reducing Acids



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
