Medical ASTM F136 Titanium Plate Titanium Sheet

Medical ASTM F136 Titanium Plate Titanium Sheet

Brand Name: LHTi
Model Number: Titanium Sheet
MOQ: 50 kg
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015; TUV; SGS;BV
Standard:
ASTM B265
Technology:
Cold Rolled
Shape:
Square
Surface:
Polished, Acid Washing
Packaging Details:
Plywood box with soft foam for additional protection
Supply Ability:
200000 kg per month
Product Description

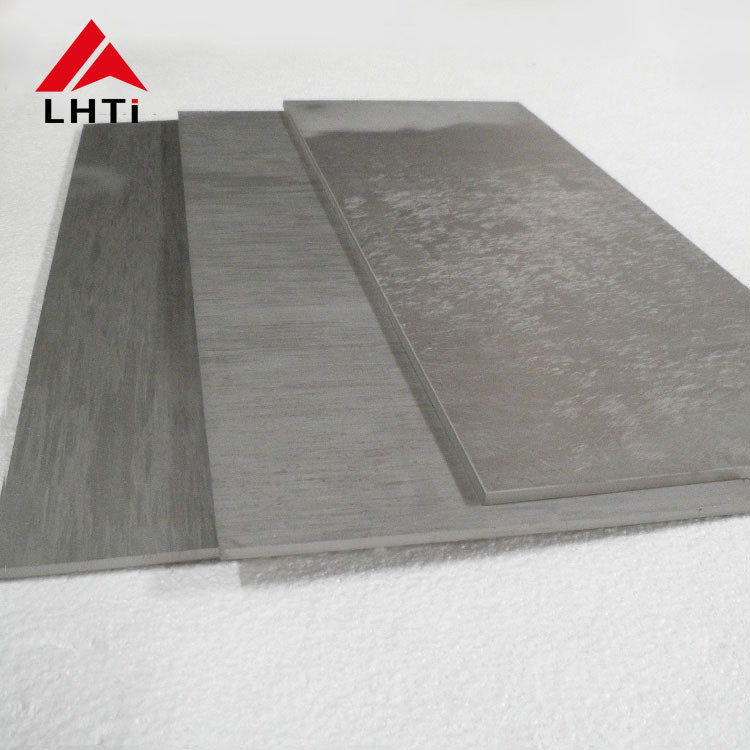

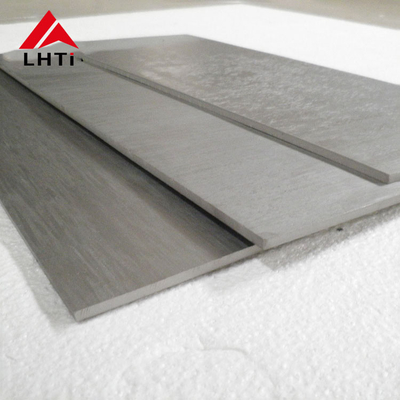

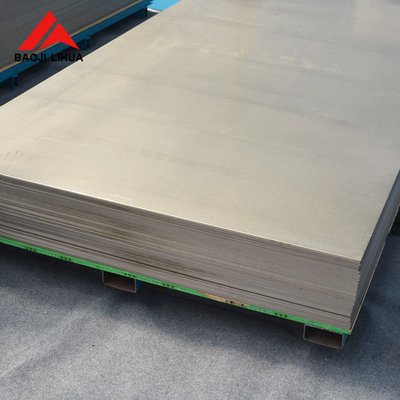

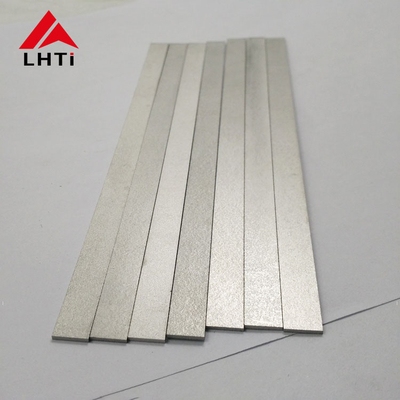

Medical ASTM F136 Titanium Plate Titanium Sheet



Material: Gr. 5, Ti-6Al-4V ELI
Standard: ASTM F136, IS05832-3
Size: (0.5~20) T * (200~1000) W * (1000~2000 )L mm
State: M, Annealed
Surface Condition: Acid washing, Sanding, Vacuum annealing
Test: With mill test certificate, accept the third party test.



Medical ASTM F136 titanium plate are used in many difficult applications in medical treatment, implants and dentistry. The titanium plate was chosen because of its unique combination of high strength, light weight, corrosion resistance, biocompatibility and higher temperature performance.



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
