Aerospace Titanium Alloy Gr5 Sheet Titanium Sheet

Name: Aerospace Titanium Alloy Gr5 Sheet Titanium Sheet
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium Sheet

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-28 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 200000 kg per month

Get Best Price

Product Details

Product Description

Highlight:

Standard:	ASTM B265	Technology:	Cold Rolled
Shape:	Square	Surface:	Polished, Acid Washing

Standard:	ASTM B265
Technology:	Cold Rolled
Shape:	Square
Surface:	Polished, Acid Washing

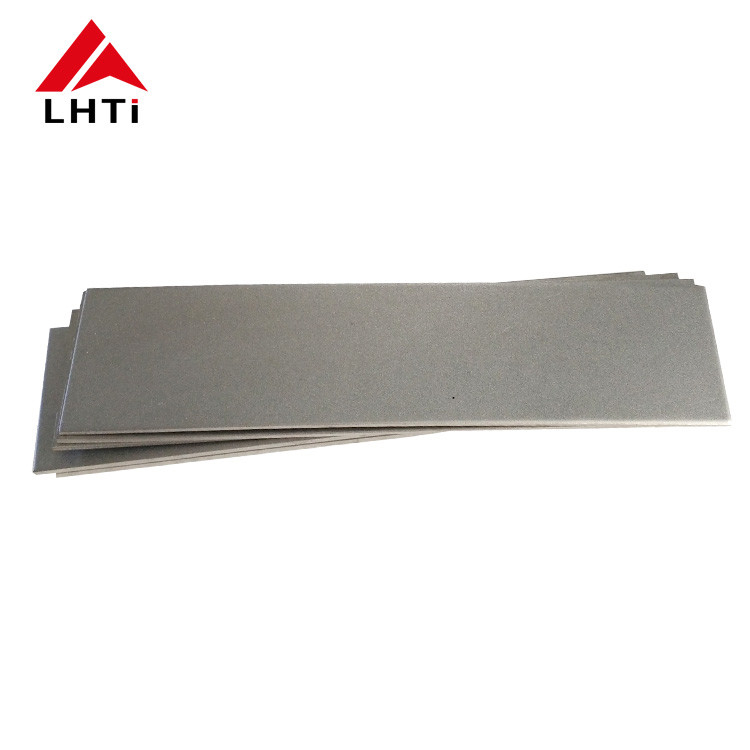

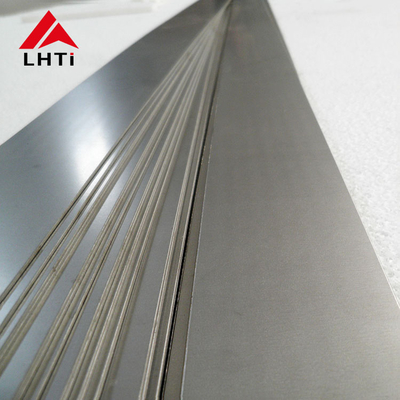

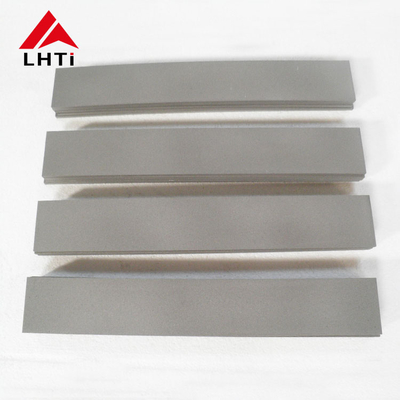

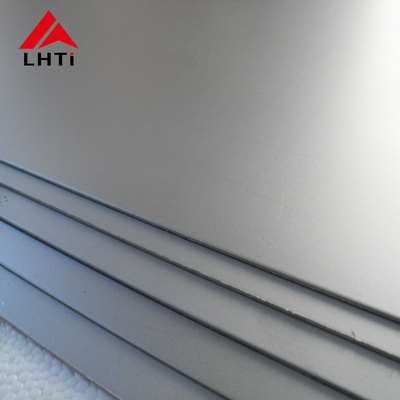

Aerospace Titanium Alloy Gr5 Sheet Titanium Sheet

Titanium Sheet For Fixation Of Fracture Medical Titanium Sheet

Hot Rolling:
Length 1000-4000mm,
Width 400-3000mm,
Thickness 4.1-60mm
Cold Rolling :
Length 1000-3000mm,
Width 400-1500mm,
Thickness 0.3-3.0mm

Aerospace Titanium Alloy Gr5 Sheet. Aerospace Titanium Sheet. Titanium, as a kind of high-performance material, is widely used in aerospace fields of technology. Titanium and Titanium alloy have excellent combination property, such as low density, higher specific strength, higher specific stiffness, fine fatigue and corrosion resistance.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
