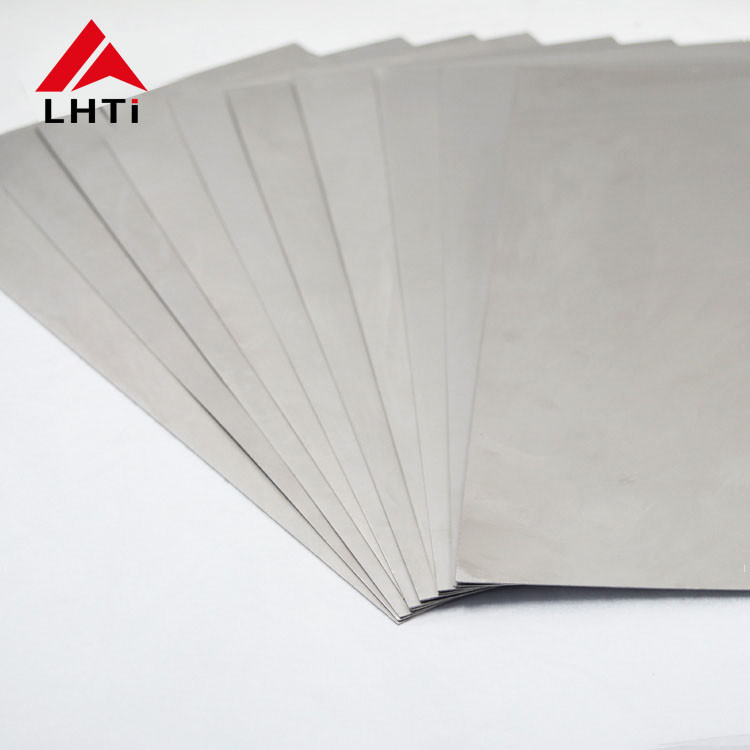

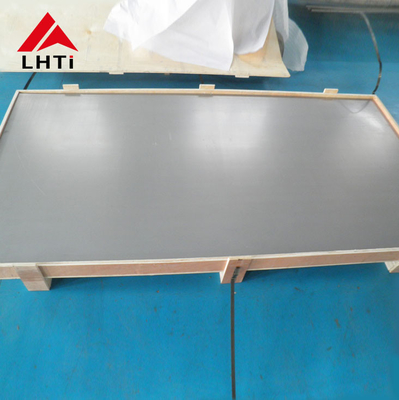

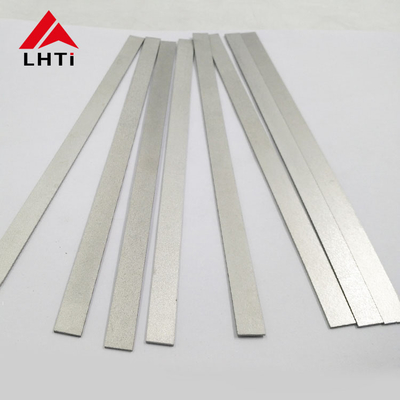

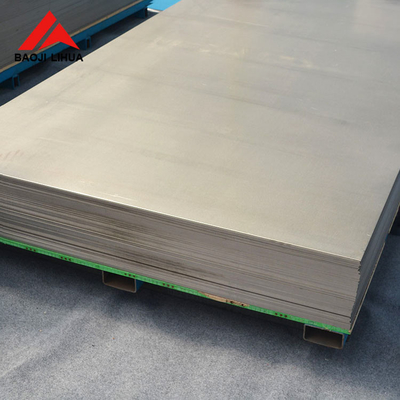

Name: Titanium ASTM Gr5 Medical Titanium Sheet
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	50 kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Standard:

ASTM B265

Technology:

Cold Rolled

Shape:

Square

Surface:

Polished, Acid Washing

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

200000 kg per month

Product Description

Titanium ASTM Gr5 Medical Titanium Sheet

1,Gr5 medical titanium sheet for skull
2,Ti6Al7Nb titanium plate for fixation
3,ASTM F136 titanium plate for dental
4,Pure titanium sheet with ISO 5832-3
5,Medical titanium sheet for fixation of fracture Gr1

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
