Titanium Sheet Titanium ASTM Grade 3 Sheets

Titanium Sheet Titanium ASTM Grade 3 Sheets

Brand Name: LHTi
Model Number: Titanium Sheet
MOQ: 50 kg
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015; TUV; SGS;BV
Standard:
ASTM B265
Technology:
Cold Rolled
Shape:
Square
Surface:
Polished, Acid Washing
Packaging Details:
Plywood box with soft foam for additional protection
Supply Ability:
200000 kg per month
Product Description

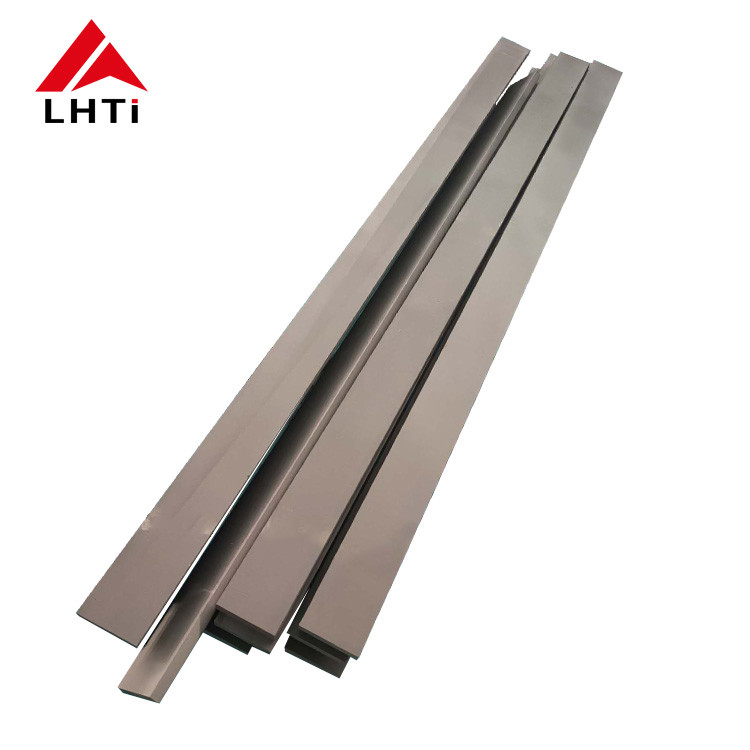

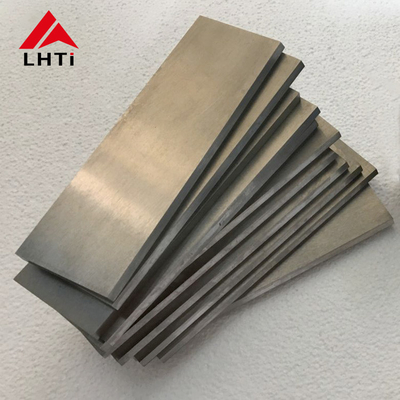

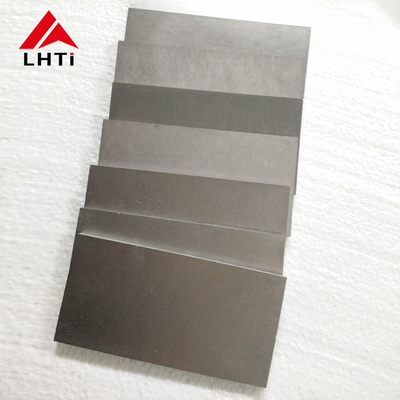

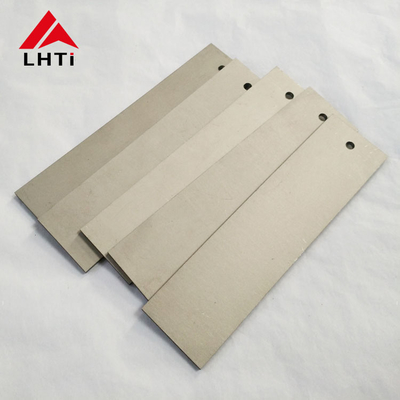

Titanium Sheet Titanium ASTM Grade 3 Sheets



Titanium ASTM F67 Grade 3 Sheets have good stamping performance, and its welding performance is also good, for all kinds of welding can be carried out, and the welding joint can reach 90% of the strength of the base metal. It is easy to sawing and grinding wheel cutting, achieving excellent machining performance. Also, this sheet has excellent corrosion resistance, able to withstand a long time of use.



Titanium ASTM F67 Grade 3 Sheets can be used for parts under 350℃ with small force and stamping into various complex shapes. For example, steam condensers in thermal power stations, marine seawater corrosion of piping systems, valves, pumps, chemical heat exchanger, pump body, distillation column, seawater desalination system, platinum-plated anode, the plane of the skeleton, skin, engine parts, beams, etc.

Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
