ASME ANSI B18.2.1 Gr2 Gr5 Titanium Bolts And Nuts Hex Head 1/4''-20 TPI 1''

Brand Name:	LHTi
Model Number:	LH-Bolt
MOQ:	200 pcs
Price:	USD0.30-1.20 per pcs
Payment Terms:	L/C, D/P, T/T, Western Union，paypal
Supply Ability:	800000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Material::

Gr2(pure Titanium), Gr5(Ti-6AL-4V)

Standard::

ASME/ANSI B18.2.1

Surface::

Bright

Color::

Natural Or As Your Request(pink, Blue, Black, Golden)

MOQ::

200 PCS

Technique::

CNC, Forged

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

800000 pcs per month

Product Description

Gr2 Gr5 Titanium Bolts And Nuts Hex Head 1/4''-20 TPI 1'' ASME ANSI B18.2.1

gr2 gr5 titanium bolts and nuts hex head 1/4''-20 TPI 1'' ASME/ANSI B18.2.1

1. Type Available

► Cap Head Bolts ► U-Bolts ► Square Head Bolts ► Hex flange bolts

► Round head bolts ► Round Torsional Shear Bolts ► T-head bolts ► Countersunk socket head bolt

2. Dimensions Information

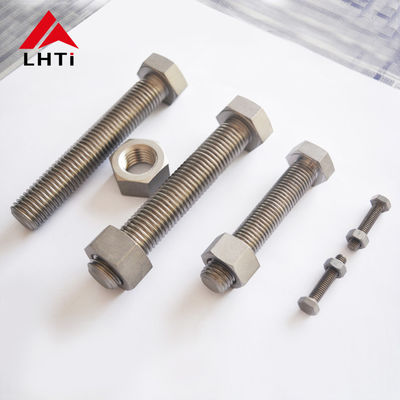

ASME ANSI B18.2.1 Gr2 Gr5 Titanium Bolts And Nuts Hex Head 1/4''-20 TPI 1'' 0

Mon	1/4	5/16	3/8	7/16	1/2	5/8	3/4	7/8	1
P	20l28l32	18l24l32	16l24l32	14l20l28	13l20l28	11l18l24	10l16l20	9l14l20	8l12l20
b	0.75	0.875	1	1.125	1.25	1.5	1.75	2	2.25
s Max	0.438	0.5	0.562	0.625	0.75	0.938	0.125	0.312	1.5
S Min	0.425	0.484	0.544	0.603	0.725	0.906	1.088	1.269	1.45
e Max	0.505	0.577	0.65	0.722	0.866	1.083	1.299	1.516	1.732
e Min	0.484	0.552	0.62	0.687	0.826	1.033	1.24	1.447	1.653
k max	0.188	0.235	0.268	0.316	0.364	0.444	0.524	0.604	0.7
k min	0.15	0.195	0.226	0.272	0.302	0.378	0.455	0.531	0.591
r max	0.03	0.03	0.03	0.03	0.03	0.06	0.06	0.06	0.09
r min	0.01	0.01	0.01	0.01	0.01	0.02	0.02	0.02	0.03

3. Detailed Images

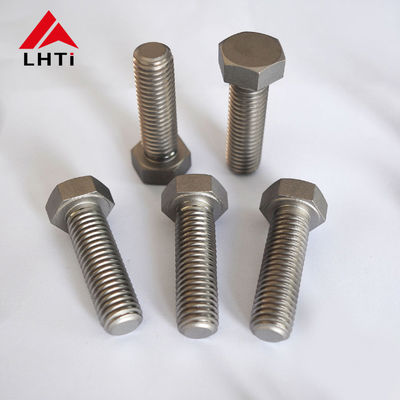

ASME ANSI B18.2.1 Gr2 Gr5 Titanium Bolts And Nuts Hex Head 1/4''-20 TPI 1'' 1

4. Application

Widely used in Industry, chemical, motorcycle, automitive, bicycle etc filelds.

For Electroplating/ Galvanization / anode coating match with titanium jigs and baskets.

Hexagon socket head bolt used for bicycles, Hex flange bolts used for motorcycles and automitive cars.

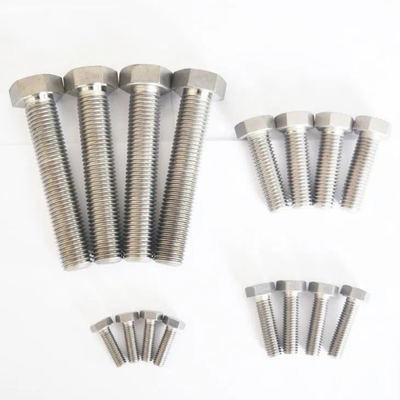

ASME ANSI B18.2.1 Gr2 Gr5 Titanium Bolts And Nuts Hex Head 1/4''-20 TPI 1'' 2

5. Relevant Products

6. Service

We have the stocks so we would provide our clients the short delivery time.
Strict control from raw materials till products finished, so the quality is guaranteed.
Customized sizes are offered as well as specified sizes and multiple sizes.
Strict quality test from raw material to product.
Original mill sheet test reports EN 10204.3.1 is available.

7. FAQ

FAQ

Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?

--Sure, and we welcome the customerized products.

Q3.--Can we get the free sample?

--Sure.

Q4.--What about the payment terms?

--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.

Q5.--Do you have your website?

--Yes, Please click here. http://www.metalstitanium.com(Independent website)

Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
