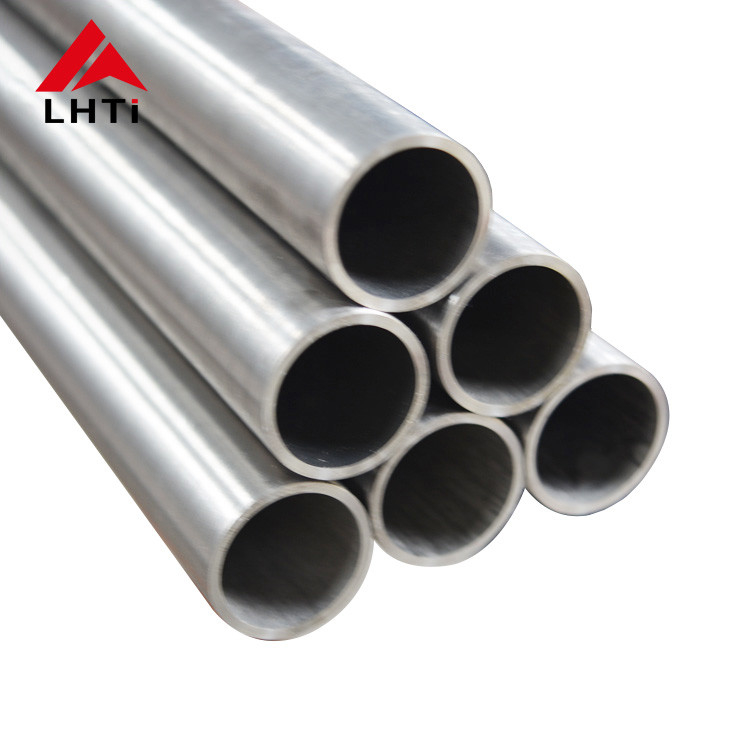

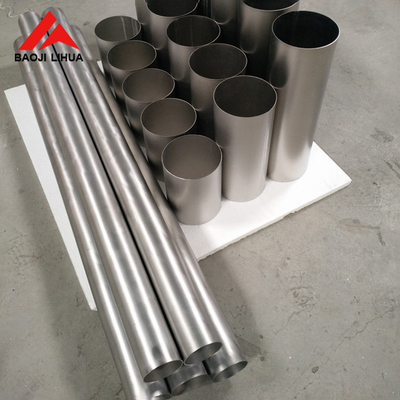

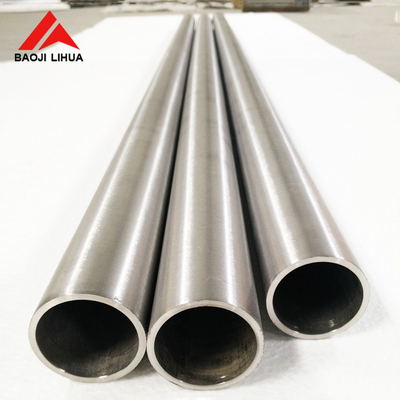

Pickled Pure Titanium Heat Exchanger Tube Gr2

Brand Name:	LHTi
Model Number:	LH-tube
MOQ:	5 pcs
Price:	USD23.00-31.00 per kg
Payment Terms:	L/C,D/P,T/T,Western Union，paypal
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Key Words 1::

Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory

Key Words 2::

20mm GR2 Titanium Tube

Key Words 3::

Titanium Heat Exchanger Tube

Material::

Pure Titanium

Grade::

Grade 2

Purity::

99.5%min

Length::

Max 12 Meter

Surface::

Pickling Surface

Application::

Heat Exchanger

Production Time::

15 Working Days

Payment Term::

T/T,Paypal,Western Union Etc

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5 tons per month

Highlight:

pickling surface titanium tube

pure titanium heat exchanger tube

titanium tube for heat exchanger

Product Description

Pickled Pure Titanium Heat Exchanger Tube Gr2

This pickling surface pure titanium tube is made to ASTM B338 in Gr2 and used for heat exchangers. Titanium seamless tubes offer corrosion resistance, a high yield strength to density ratio, a small coefficient of thermal expansion, a long service life and high heat transfer efficiency. These properties greatly improve the life of a titanium tube heat exchanger and reduce the loss caused by corrosion failure. The tube is supplied in round, square or flat shape with OD 20 mm and wall thickness 1.2 mm, or as customized, in lengths up to 12 meters.

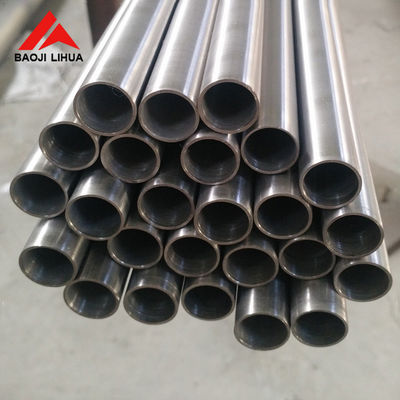

Pickled pure titanium heat exchanger tube

Technical Specifications

Name	Pure titanium and titanium alloy tube / pipe / tubing
Tube Shape	Round, square, flat, coil
Material	Gr1, Gr2, Gr7, Gr12; Grade 2 supplied
Standard	ASTM B338 / ASME SB338
Type	Seamless
OD	20 mm, or as customized
Wall Thickness	1.2 mm, or as customized
Length	Max 12 meter
End	Plain end, beveled end, threaded
Surface	Pickling surface
Application	Heat exchanger

Tensile Requirements

Grade	Tensile Strength min ksi [MPa]	Yield Strength (0.2% offset) min ksi [MPa]	Elongation %
1	35 [240]	25 [170]	24
2	50 [345]	40 [275]	20
7	50 [345]	40 [275]	20
9	90 [620]	70 [483]	15
12	70 [483]	50 [345]	18

Chemical Requirements (wt %, max)

Grade	N	C	H	Fe	O	Al	V	Ti	Other
1	0.03	0.08	0.015	0.20	0.18	/	/	Bal	0.4
2	0.03	0.08	0.015	0.30	0.25	/	/	Bal	0.4
7	0.03	0.08	0.015	0.30	0.25	/	/	Bal	0.4
9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	Bal	0.4
12	0.03	0.08	0.015	0.30	0.25	/	/	Bal	0.4

Applications & Titanium Advantages

This titanium tube is used for offshore oil drilling, power generation, petrochemicals, gas processing, specialty chemicals, medical and laboratory equipment, chemical equipment, sea water equipment, heat exchangers, condensers and the pulp and paper industry. Titanium is strong and light, with good heat transfer and corrosion resistance, so it keeps a clean surface and high efficiency over a long service life.

Quality, Customization & Inquiry

LHTi supplies this titanium tube with certificates to EN 10204 3.1, raw materials certificates, a 100% radiography test report and third-party inspection reports from TUV, BV or SGS. Custom sizes and ends are available, wrapped in foam inside a plywood box for export. Please send your drawing or specification for a quotation.
