Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001
Model Number: Titanium alloy plate
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Packaging Details: Wooden Case
Delivery Time: 10-15 work day
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 5000 Ton/Tons per Month
Place Of Origin: |
China |
Application: |
Corrosion Resistant |
Technique: |
Hot Rolled |
Ti (Min): |
89%(min) |
Model Number: |
Titanium Alloy Plate |
Processing Service: |
Bending, Welding, Decoiling, Cutting, Punching |
Type: |
Titanium Plate |
Standard: |
ASTM B 265 |
Material: |
GR1/GR2/GR3/GR5/GR7/GR9/GR12 |
Finish: |
Roll-up(Hard) |
Advantage: |
Chinese Titanium Valley"-Baoji |
Surface: |
Polished |
Package: |
Wooden Case |
CERTIFICATION: |
ISO9001 |
Size: |
Schedule DN |
MOQ: |
10kg |
Place Of Origin: |
China |
Application: |
Corrosion Resistant |
Technique: |
Hot Rolled |
Ti (Min): |
89%(min) |
Model Number: |
Titanium Alloy Plate |
Processing Service: |
Bending, Welding, Decoiling, Cutting, Punching |
Type: |
Titanium Plate |
Standard: |
ASTM B 265 |
Material: |
GR1/GR2/GR3/GR5/GR7/GR9/GR12 |
Finish: |
Roll-up(Hard) |
Advantage: |
Chinese Titanium Valley"-Baoji |
Surface: |
Polished |
Package: |
Wooden Case |
CERTIFICATION: |
ISO9001 |
Size: |
Schedule DN |
MOQ: |
10kg |

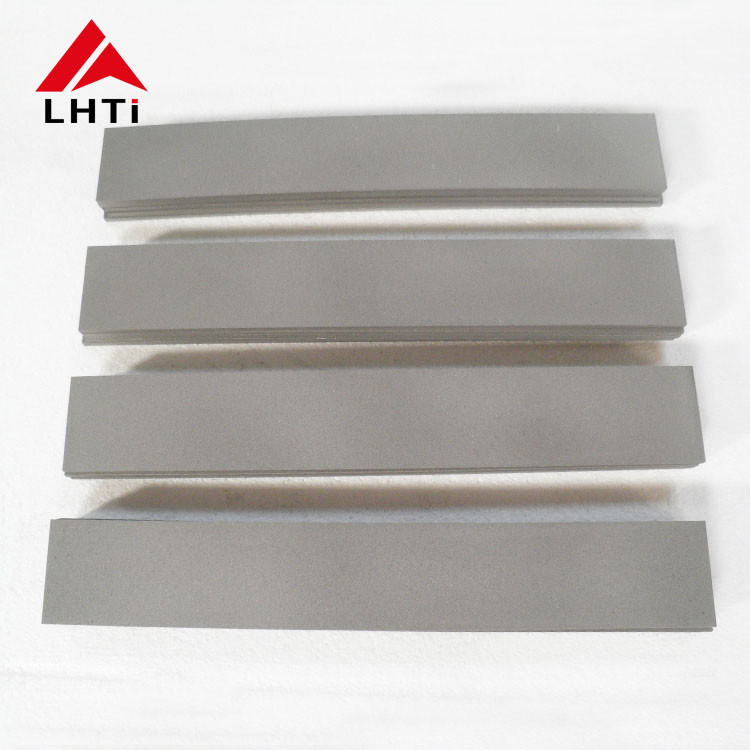

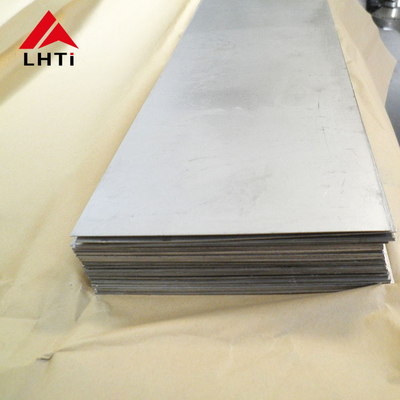

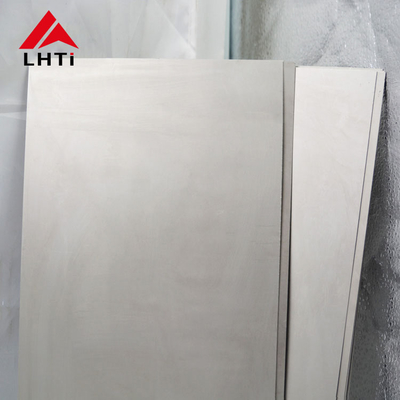

Gr7 Titanium Alloy Sheet Astm 265 Polished Surface For Chemical Industry
Titanium Grade 7 plate is a corrosion-resistant alpha-titanium alloy with similar mechanical properties to commercially available high-purity grades. A small amount of palladium is added to improve corrosion resistance especially in mineral acids and strong saltwater.
Petrochemical industry, pressure vessel, electroplating equipment and instruments, medical treatment, sporting goods, titanium spectacle frame (TB5), titanium watch (TC4/TA2).
Such as: through the rolling plate equipment to be welded into a pressure vessel cylinder (shell), through the drawing equipment to make titanium mesh plate, used in the production of electroplating industry commonly used titanium mesh basket.
Medical ASTM F136 titanium plate are used in many difficult applications in medical treatment, implants and dentistry. The titanium plate was chosen because of its unique combination of high strength, light weight, corrosion resistance, biocompatibility and higher temperature performance.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
